MUFFLER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

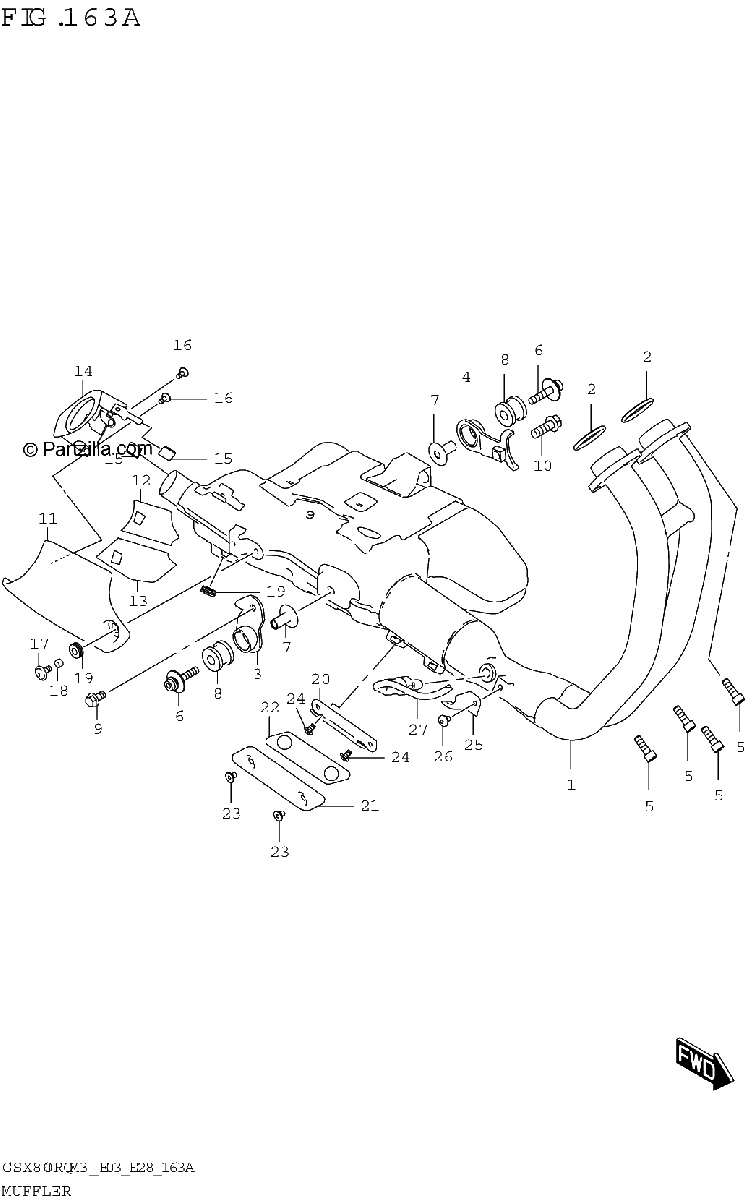

Diagrama de MUFFLER

Repuestos

#1
14100-25L00-H01
EXHAUST
$3809.69¢1 904 843
1
#2
14181-04K00
GASKET, EXHAUST PIPE *{NOT ILLUSTRATED}*
$9.10¢4 548
1
#3
14760-25L00
BRACKET, CHAMBER SPRT RH
$25.64¢12 823
1
#4
14770-25L00
BRACKET, CHAMBER SPRT LH
$25.64¢12 823
1
#5
09106-08178
BOLT (8X25)
$3.56¢1 783
1
#6
09116-08176
BOLT,EXH CTR SPRT
$8.77¢4 387
1
#7
09180-08152
SPACER (8.6X12X24.2)
$6.30¢3 151
1
#8
09320-12077
CUSHION
$12.93¢6 463
1
#9
01550-0816B
BOLT
$3.29¢1 644
1
#10
01550-1030B
BOLT
$4.48¢2 242
1
#11
14781-25L00
COVER, CHAMBER
$16.87¢8 435
1
#12
14785-25L00
SHIELD, CHAMBER COV HEAT
$4.14¢2 070
1
#13
14786-25L00
SHIELD,CHAMBER COV HEAT NO.2
$4.43¢2 214
1
#14
14790-25L00
STAY, CHAMBER RR COV
$46.29¢23 144
1
#15
14795-10FA0
.GROMMET
$6.30¢3 151
1
#16
09132-05068
SCREW
$3.56¢1 783
1
#17
09139-06240
SCREW
$3.79¢1 897
1
#18
09180-06256
SPACER (6.5X9X5.7)
$2.52¢1 259
1
#19
09320-08066
CUSHION
$8.91¢4 456
1
#20
14140-25L00
BRACKET, EXH COV
$21.99¢10 994
1
#21
14181-25L00
COVER, EXH PIPE
$9.77¢4 887
1
#22
14182-25L00
SHIELD, EXH COV HEAT
$3.82¢1 909
1
#23
14789-29F01
SCREW, MUFFLER COVER
$6.76¢3 381
1
#24
09139-06122
SCREW (6X10)
$3.36¢1 679
1
#25
14183-25L00
COVER, OXYGEN SENSOR
$22.33¢11 167
1
#26
09139-06122
SCREW (6X10)
$3.36¢1 679
1
#27
18213-25L40
SENSOR, OXYGEN
$262.08¢131 042
1
