TRANSMISSION

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

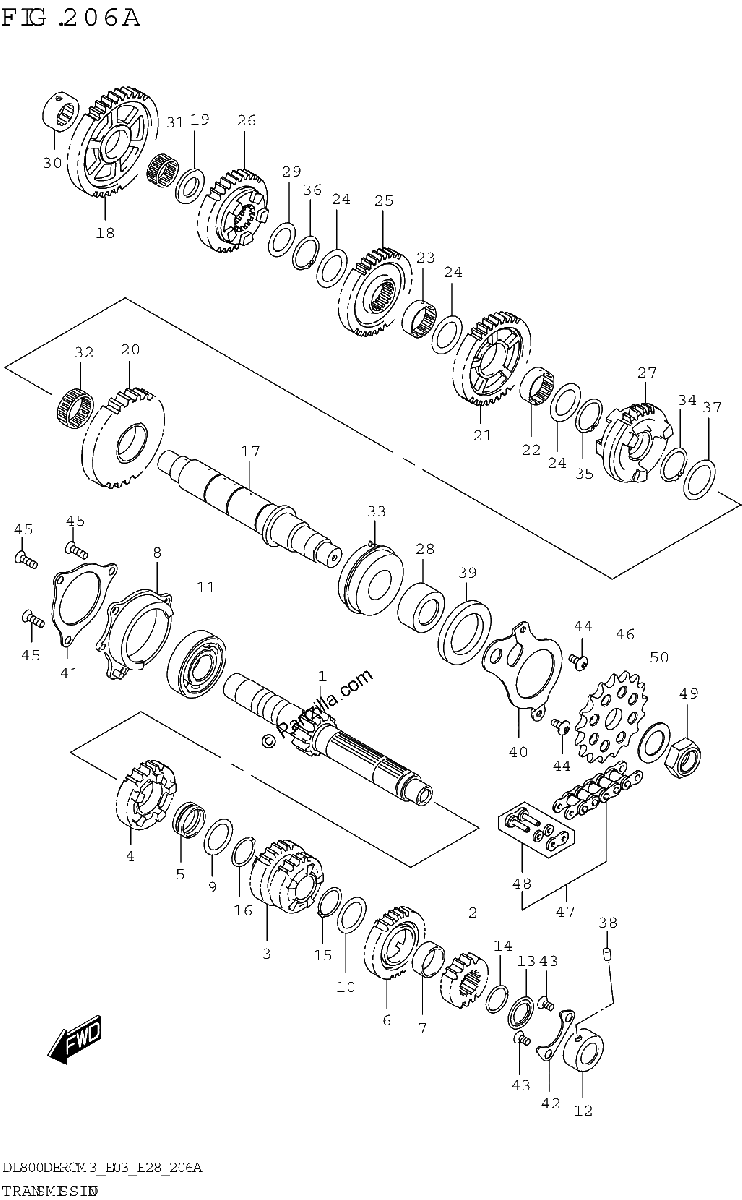

Diagrama de TRANSMISSION

Repuestos

#1
24120-25L00
SHAFT, CNTR (NT:14)
$250.70¢125 350
1
#2
24221-25L00
GEAR, 2ND DRIVE (NT:15)
$89.56¢44 781
1
#3
24231-25L00
GEAR, 3RD & 4TH DRIVE (NT:20/24)
$149.06¢74 532
1
#4
24251-25L00
GEAR, 5TH DRIVE (NT:26)
$110.63¢55 315
1
#5
24252-35F00
BUSH 5TH DRIVE GEAR
$30.68¢15 341
1
#6
24261-25L00
GEAR, 6TH DRIVE (NT:28)
$80.30¢40 152
1
#7
24262-35F10
BUSH, 6TH DRIVE GEAR
$35.65¢17 825
1
#8
24770-18H10
HOUSING, CENTER SHAFT BRG RH
No Disponible
1
#9
09160-27008
WASHER (27X36X1)
$4.45¢2 225
1
#10
09167-27001
LOCK WASHER
$2.84¢1 420
1
#11
09262-25073
BEARING (25X62X17) | RH
$28.03¢14 013
1
#12
09263-20123
BEARING
$57.98¢28 992
1
#13
09285-20006
OIL SEAL (20X31.2X2.7)
$7.05¢3 525
1
#14
09380-27004
CIRCLIP
$3.99¢1 995
1
#15
09380-27006
CIRCLIP
$3.27¢1 633
1
#16
09380-27006
CIRCLIP
$3.27¢1 633
1
#17
24131-25L00
SHAFT, DRIVE
$211.80¢105 898
1
#18
24311-25L00
GEAR, 1ST DRIVEN (NT:43)
$97.83¢48 915
1
#19
24315-25L00
SPACER, 1ST DRIVEN GEAR RH
$8.22¢4 111
1
#20
24321-25L00
GEAR, 2ND DRIVEN (NT:33)
$115.92¢57 960
1
#21
24331-25L00
GEAR, 3RD DRIVEN (NT:34)
$109.27¢54 636
1
#22
24332-24F20
BUSH, 4TH DRIVEN GEAR
$45.71¢22 856
1
#23
24332-24F20
BUSH, 4TH DRIVEN GEAR
$45.71¢22 856
1
#24
24333-47H00
WASHER, 3RD 4TH DRIVE
$9.64¢4 819
1
#25
24341-25L00
GEAR, 4TH DRIVEN (NT:34)
$112.61¢56 304
1
#26
24351-25L00
GEAR, 5TH DRIVEN (NT:32)
$105.03¢52 515
1
#27
24361-25L00
GEAR, 6TH DRIVEN (NT:31)
$110.26¢55 131
1
#28
27531-25L00
SPACER, ENGINE SPROCKET
$28.90¢14 450
1
#29
09181-24005
SHIM (24X34X1)
$3.85¢1 926
1
#30
09263-20087
BEARING (20X34X13.5)
$60.58¢30 291
1
#31
09263-24030
BEARING (24X28X13)
$30.62¢15 312
1
#32
09263-30018
BEARING (30X35X12.8)
$31.60¢15 801
1
#33
09267-30011
BEARING (30X62X23.8)
$201.91¢100 953
1
#34
09380-30009
CIRCLIP
$3.78¢1 892
1
#35
09380-30009
CIRCLIP
$3.78¢1 892
1
#36
09380-30009
CIRCLIP
$3.78¢1 892
1
#37
09181-30167
SHIM (30X40X1)
$4.45¢2 225
1
#38
09261-06003
PIN (6X10)
$1.78¢891
1
#39
09283-42018
OIL SEAL (42X62X7)
$39.34¢19 671
1
#40
24741-25L00
RETAINER, CL PUSH ROD OIL SEA
$12.96¢6 480
1
#41
24751-18H00
RETAINER, COUNTER SHAFT RH
No Disponible
1
#42
24751-25L00
RETAINER, COUNTER SHAFT BRG L
$6.59¢3 295
1
#43
09126-06011
SCREW (6X12)
$2.42¢1 208
1
#44
09139-06153
SCREW (6X13)
$3.13¢1 564
1
#45
09139-06159
SCREW (6X20)
$4.94¢2 472
1
#46
27511-20A21
SPROCKET,ENGINE (NT:17)
$59.40¢29 699
1
#47
27600-17K00-126
CHAIN ASSY,DRIVE
$395.08¢197 541
1
#48
27620-17K00
.JOINT SET, DRIVE CHAIN
$21.54¢10 770
1
#49
09159-20004
NUT
$16.95¢8 476
1
#50
09181-25268
SHIM (25X40X1.5)
$3.47¢1 737
1
