FRAME COVER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

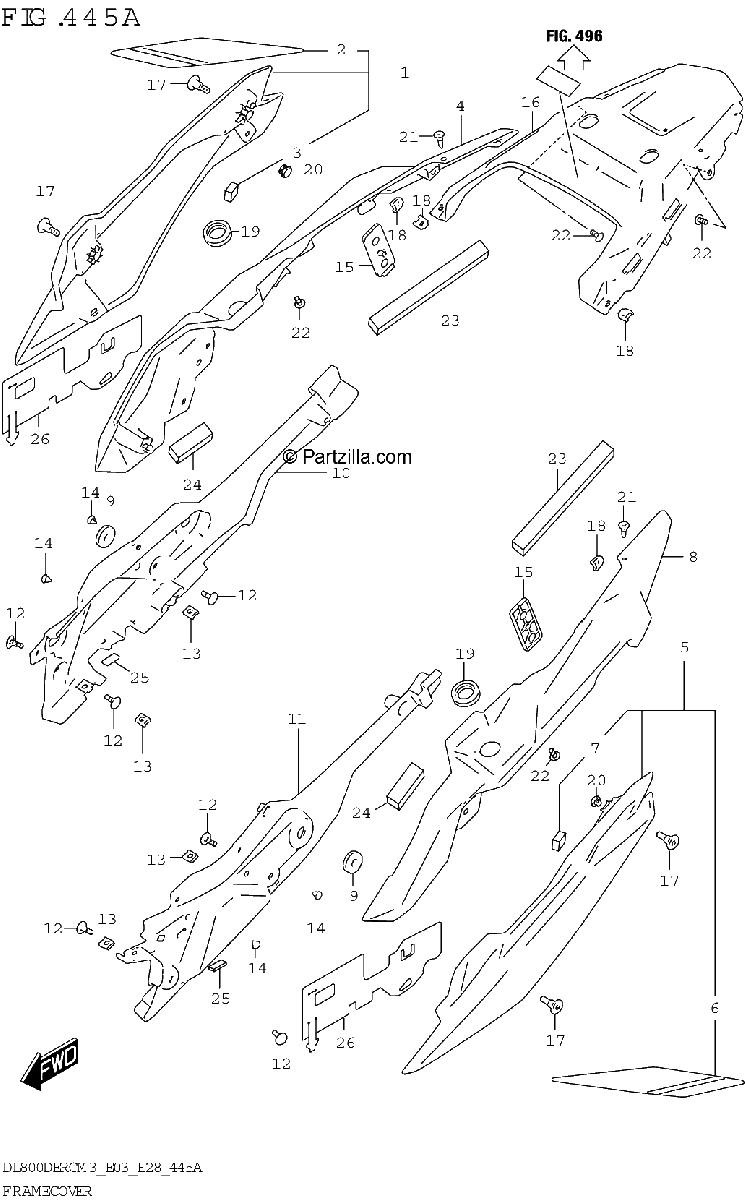

Diagrama de FRAME COVER

Repuestos

#3
47117-25LA0
CUSHION
$0.75¢375
1
#7
47117-25LA0
CUSHION
$0.75¢375
1
#9
09320-08018
CUSHION | LH
$3.65¢1 825
1
#10
47311-25LA0
COVER,FRAME INNER,R
$13.10¢6 550
1
#1-1
47410-25L00-019
COVER,FRAME SIDE,R (BLACK) *{BODY COLOR:QT7}*
$39.96¢19 981
1
#11
47321-25LA0
COVER,FRAME INNER,L
$13.10¢6 550
1
#1-2
47410-25L00-Y2W
COVER,FRAME SIDE,R (BLUE) *{BODY COLOR:YU1}*
$39.60¢19 800
1
#12
94479-35F00
CLIP
$6.70¢3 350
1
#1-3
47410-25L00-CTX
COVER,FRAME SIDE,R *{BODY COLOR:YVB}*
$40.75¢20 375
1
#13
09148-05038
NUT
$2.56¢1 281
1
#14
09250-06017
PLUG,RR FENDER
$3.56¢1 781
1
#15
47510-28K00
SPACER,FRAME COVER
$23.91¢11 956
1
#17
47913-06L00
SCREW
$2.24¢1 119
1
#18
09148-05045
NUT
$3.17¢1 588
1
#19
09320-20011
CUSHION (20X32X9)
$3.52¢1 763
1
#20
09321-05023
CUSHION
$2.66¢1 331
1
#2-1
68135-25L00-CJ2
TAPE,FRAME COVER SIDE,R *{BODY COLOR:QT7}*
$13.90¢6 950
1
#21
09409-06314
CLIP
$3.60¢1 800
1
#2-2
68135-25L00-CJ3
TAPE,FRAME COVER SIDE,R *{BODY COLOR:YU1}*
$13.90¢6 950
1
#22
03541-0512A
SCREW
$1.79¢894
1
#2-3
68135-25L00-CJ4
TAPE,FRAME COVER SIDE,R *{BODY COLOR:YVB}*
$13.90¢6 950
1
#23
47213-25LA0
CUSHION,FRAME COVER REAR
$2.00¢1 000
1
#24
47215-25LA0
CUSHION,FRAME COVER REAR
$1.31¢656
1
#25
94413-08F00
CUSHION
$4.63¢2 313
1
#26
47166-25LA0
SHIELD,FRAME COVER
$14.81¢7 406
1
#4-1
47411-25LA0-QT7
COVER,FRAME REAR,R (GRAY) *{BODY COLOR:QT7}*
$70.00¢35 000
1
#4-2
47411-25LA0-YU1
COVER,FRAME REAR,R (YELLOW) *{BODY COLOR:YU1}*
$70.00¢35 000
1
#4-3
47411-25LA0-YVB
COVER,FRAME REAR,R (BLACK) *{BODY COLOR:YVB}*
$70.00¢35 000
1
#5-1
47510-25L00-019
COVER,FRAME SIDE,L (BLACK) *{BODY COLOR:QT7}*
$39.96¢19 981
1
#5-2
47510-25L00-Y2W
COVER,FRAME SIDE,L (BLUE) *{BODY COLOR:YU1}*
$39.60¢19 800
1
#5-3
47510-25L00-CTX
COVER,FRAME SIDE,L *{BODY COLOR:YVB}*
$40.75¢20 375
1
#6-1
68145-25L00-CJ2
TAPE,FRAME COVER SIDE,L *{BODY COLOR:QT7}*
$13.90¢6 950
1
#6-2
68145-25L00-CJ3
TAPE,FRAME COVER SIDE,L *{BODY COLOR:YU1}*
$13.90¢6 950
1
#6-3
68145-25L00-CJ4
TAPE,FRAME COVER SIDE,L *{BODY COLOR:YVB}*
$13.90¢6 950
1
#8-1
47511-25LA0-QT7
COVER,FRAME REAR,L (GRAY) *{BODY COLOR:QT7}*
$70.00¢35 000
1
#8-2
47511-25LA0-YU1
COVER,FRAME REAR,L (YELLOW) *{BODY COLOR:YU1}*
$70.00¢35 000
1
#8-3
47511-25LA0-YVB
COVER,FRAME REAR,L (BLACK) *{BODY COLOR:YVB}*
$70.00¢35 000
1
#16-1
47711-25LA0-YU1
COVER,FRAME REAR CTR (YELLOW) *{BODY COLOR:QT7}*
$48.22¢24 112
1
#16-2
47711-25LA0-Y2W
COVER,FRAME REAR CTR (BLUE) *{BODY COLOR:YU1,YVB}*
$44.09¢22 044
1
