REAR SWINGINGARM

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

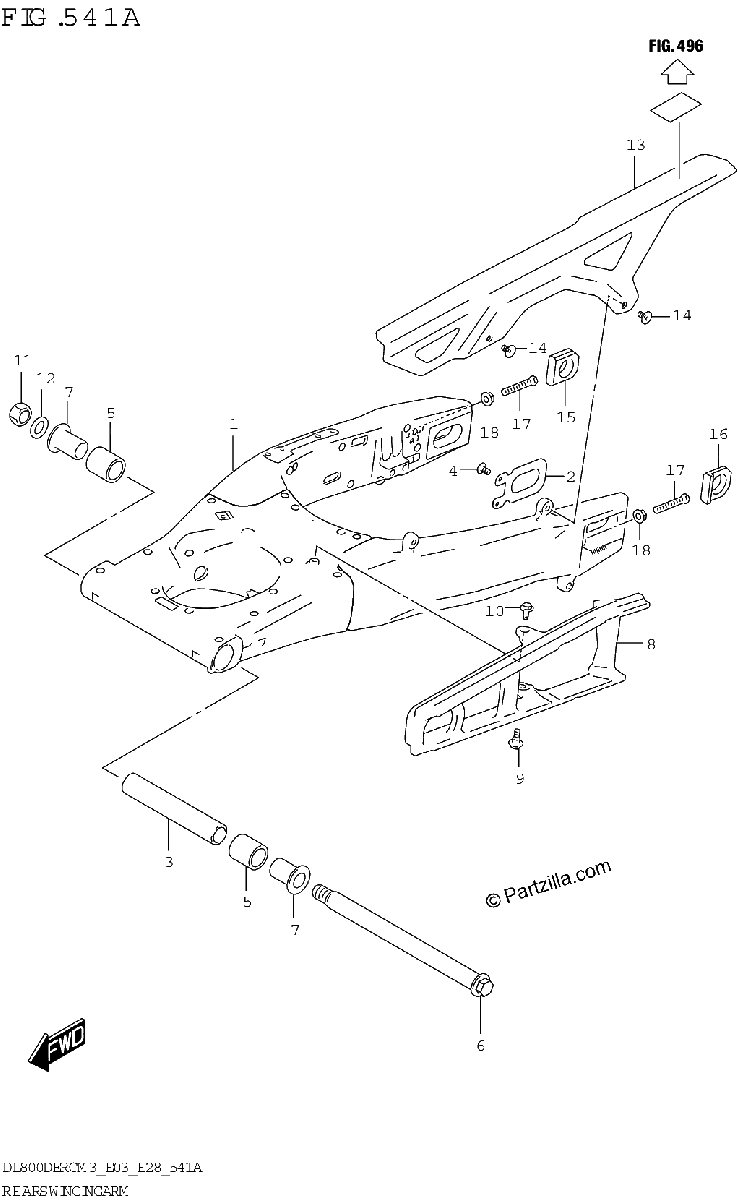

Diagrama de REAR SWINGINGARM

Repuestos

#1
61100-25LA0
SWINGINGARM,REAR
$1297.81¢648 906
1
#2
61124-44G00
PLATE, RR SWING ARM BRKT
$8.81¢4 406
1
#3
61282-25L00
SPACER, RR SWGARM PIVOT CTR
$35.09¢17 544
1
#4
09122-66010
SCREW (6X12)
$2.03¢1 013
1
#5
09263-25073
.BEARING (25X33X35)
$36.36¢18 181
1
#6
61211-31E00
SHAFT, PIVOT
$173.78¢86 888
1
#7
61251-31E00
SPACER, REAR SWGARM PIVOT
$79.97¢39 988
1
#8
61273-25LB0
BUFFER,CHAIN TOUCH DEFENSE
$77.81¢38 906
1
#9
09111-06072
BOLT (6X17.8)
$2.63¢1 313
1
#10
09116-06205
BOLT (6X16)
$3.54¢1 769
1
#11
09159-18007
NUT
$25.84¢12 919
1
#12
09160-18030
WASHER (18.5X28X2.6)
$3.36¢1 681
1
#13
61310-25L00
CASE, CHAIN
$87.81¢43 906
1
#14
09139-06225
BOLT,CHAIN CASE
$3.65¢1 825
1
#15
61445-28H11
WASHER, CHAIN ADJUSTER RH
$65.71¢32 856
1
#16
61446-35G01
WASHER, CHAIN ADJUSTER LH
$49.41¢24 706
1
#17
09100-08287
BOLT (8X50)
$3.65¢1 825
1
#18
08316-1008A
NUT
$3.21¢1 606
1
