ELECTRICAL DL650XAM3E03

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

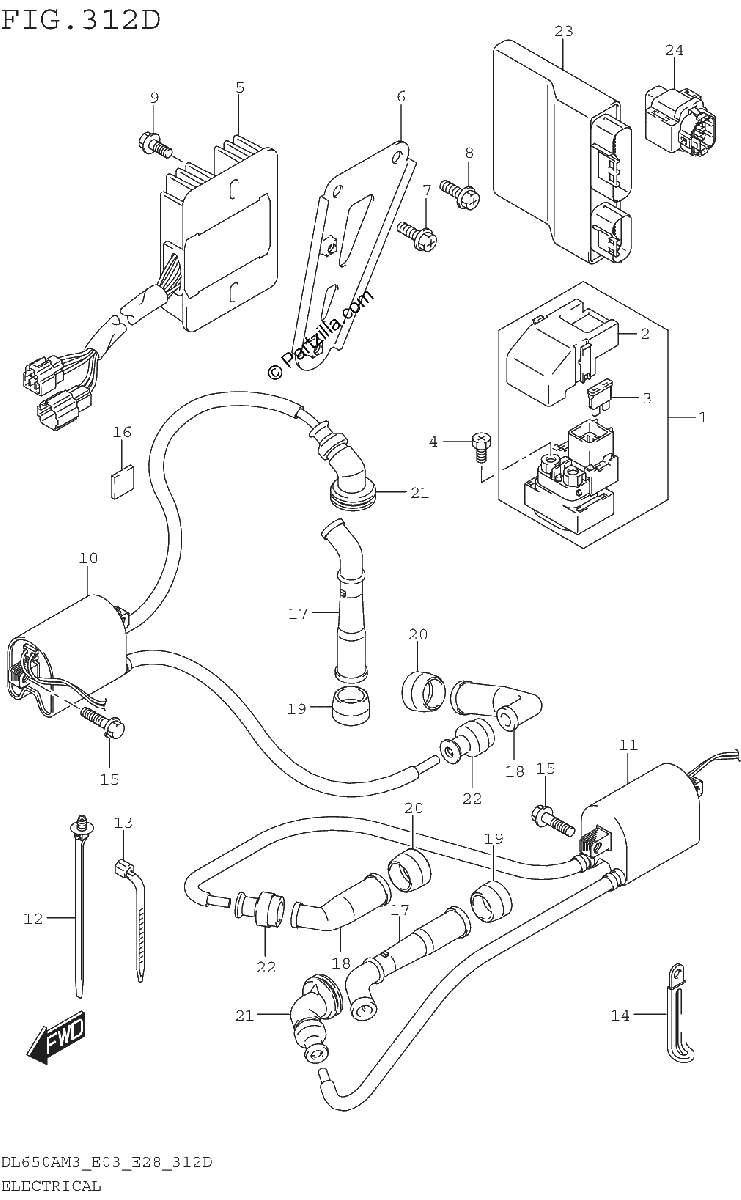

Diagrama de ELECTRICAL DL650XAM3E03

Repuestos

#1
31800-06G02
RELAY ASSY,STARTING MOTOR
$73.84¢36 921
1
#2
31861-47E00
.COVER
$20.07¢10 034
1
#3
09481-30101
.FUSE (30A)
$2.74¢1 368
1
#4
09128-06013
SCREW (6X8)
$1.49¢747
1
#5
32800-47H00
RECTIFIER ASSY
$288.68¢144 342
1
#6
32830-11J00
BRACKET, RECTIFIER
No Disponible
1
#7
02162-0616A
BOLT
$2.47¢1 236
1
#8
02162-0610A
BOLT
No Disponible
1
#9
02162-0616A
BOLT
$2.47¢1 236
1
#10
33410-27G02
COIL ASSY,IGNITION
$156.54¢78 269
1
#11
33420-27G03
COIL ASSY,IGNITION
$164.59¢82 294
1
#12
09407-17403
CLAMP (L:154)
$5.54¢2 772
1
#13
09407-18402
CLAMP (L:165)
$2.66¢1 328
1
#14
09404-06429
CLAMP (L:45)
$2.14¢1 070
1
#15
01547-0625A
BOLT
$2.42¢1 208
1
#16
92213-33G00
CUSHION, HELMET BOX
$6.76¢3 381
1
#17
33510-17G00
CAP, SPARK PLUG | FOR CENTER
$36.71¢18 354
1
#18
33510-20E00
CAP ASSY, SPARK PLUG
$42.98¢21 488
1
#19
33541-23E10
SEAL, SPARK PLUG CAP | FOR CENTER
$7.39¢3 697
1
#20
33541-47D00
SEAL, SPARK PLUG
$8.58¢4 289
1
#21
33542-17G01
SEAL, HIGH TENSION CORD | FOR CENTER
$10.09¢5 043
1
#22
33542-38B00
SEAL, HIGH TENSION CORD
$4.76¢2 380
1
#23
32920-28K52
CONTROL UNIT,FI
$1560.63¢780 315
1
#24
33960-27G00
SENSOR ASSY, FUEL CUT
$136.47¢68 235
1
