CRANKCASE COVER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

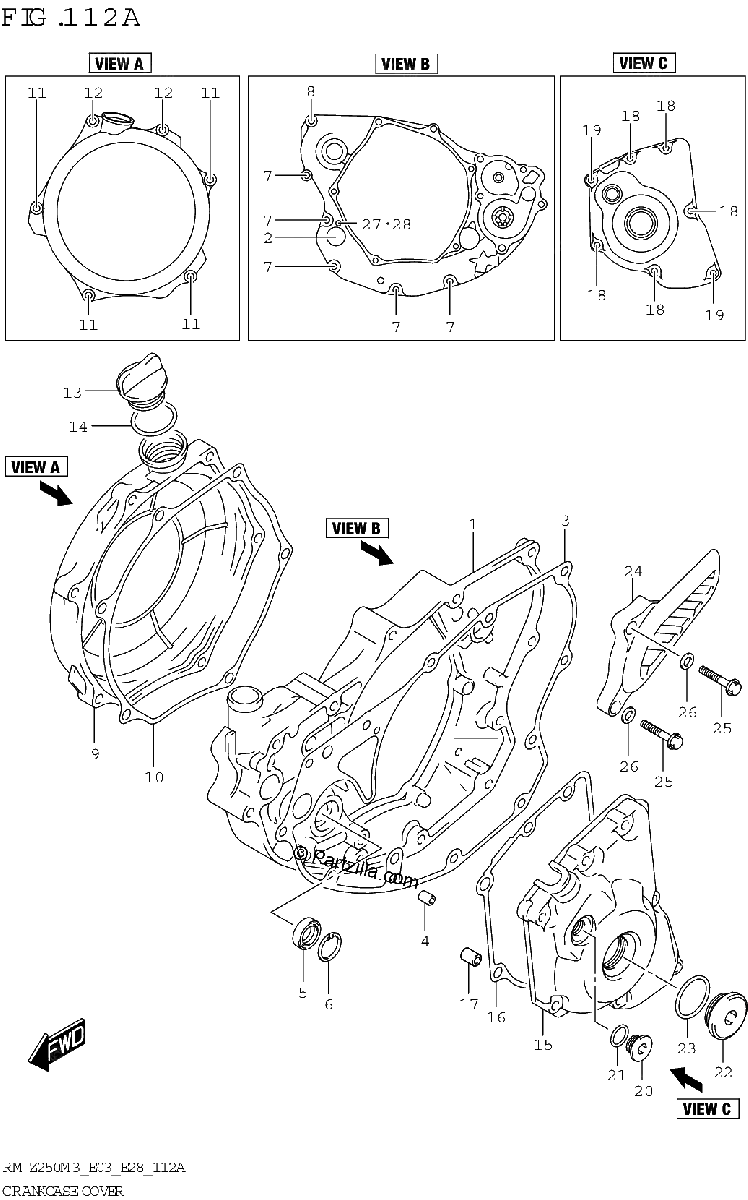

Diagrama de CRANKCASE COVER

Repuestos

#1
11340-49H10
COVER,CLUTCH
$370.84¢185 419
1
#2
11971-45010
.LENS, OIL LEVEL CHECK
$20.55¢10 275
1
#3
11482-49H00
GASKET, CLUTCH COVER
$18.64¢9 319
1
#4
04211-09109
PIN
$2.14¢1 069
1
#5
09282-12012
OIL SEAL (12X22X6)
$23.60¢11 800
1
#6
08331-41249
CIRCLIP
$2.92¢1 463
1
#7
01547-0625A
BOLT
$2.63¢1 313
1
#8
01547-0630A
BOLT
$3.01¢1 506
1
#9
11371-10H10
COVER, CLUTCH OUTER
$311.66¢155 831
1
#10
11484-10H00
GASKET, CLUTCH COVER OUTER
$16.73¢8 363
1
#11
01547-0625A
BOLT
$2.63¢1 313
1
#12
01547-0665A
BOLT
$3.05¢1 525
1
#13
09259-20008-XC0
PLUG
$8.81¢4 406
1
#14
09280-17003
O RING (D:3.1,ID:16.8)
$2.14¢1 069
1
#15
11351-49H01
COVER,MAGNETO
$290.46¢145 231
1
#16
11483-49H00
GASKET, MAGNETO COVER
$14.95¢7 475
1
#17
04211-09109
PIN
$2.14¢1 069
1
#18
01547-0630A
BOLT
$3.01¢1 506
1
#19
01547-0635A
BOLT
$3.01¢1 506
1
#20
09248-12007
PLUG (12X9)
$6.94¢3 469
1
#21
09280-10015
O RING (D:1.9,ID:9.8)
$3.96¢1 981
1
#22
09259-26011
PLUG (26X9)
$12.98¢6 488
1
#23
09280-22008
O RING (D:3.1,ID:22.7)
$2.64¢1 319
1
#24
11360-35G10
COVER, ENGINE SPROCKET
$29.21¢14 606
1
#25
01547-0630A
BOLT
$3.01¢1 506
1
#26
08322-0106A
WASHER
$2.39¢1 194
1
#27
07130-0512A
BOLT
$2.85¢1 425
1
#28
09168-05010
GASKET (5.3X9.3X1.2)
$2.25¢1 125
1
