FUEL TANK VL800

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

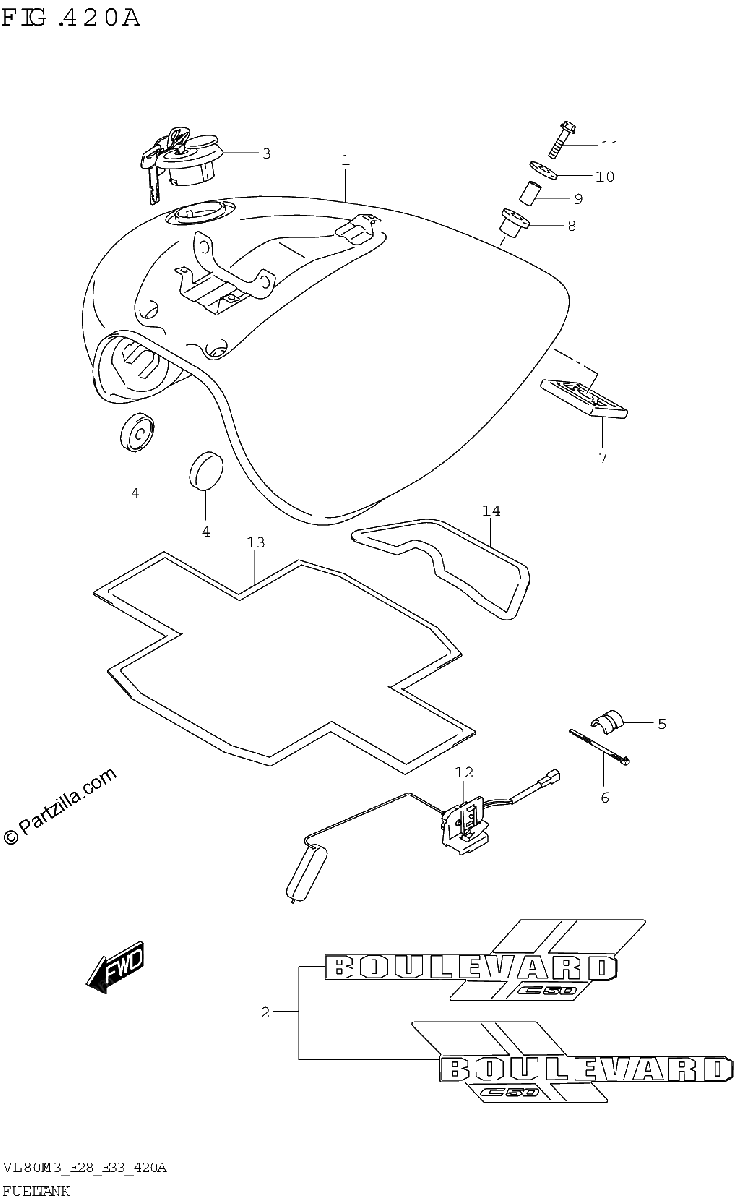

Diagrama de FUEL TANK VL800

Repuestos

#3
44200-41841
CAP SET,FUEL TANK FILLER
$137.28¢68 638
1
#4
09329-10026
CUSHION
$2.29¢1 144
1
#5
44541-14F11
CUSHION,FUEL TANK LWR
$5.20¢2 599
1
#6
09407-20405
CLAMP (L:202)
$5.03¢2 513
1
#7
44542-41F01
CUSHION,FUEL TANK RR LWR
$9.61¢4 807
1
#8
44541-41F02
CUSHION,FUEL TANK REAR UPPER
$5.96¢2 978
1
#9
09180-08227
MUFF CUSHION SP
$2.48¢1 242
1
#10
09160-08140
WASHER (8.5X33X1.6)
$1.25¢627
1
#1-1
44100-43H50-YUD
TANK ASSY,FUEL (GRAY) *{BODY COLOR:YUD}*
$1216.27¢608 137
1
#11
01550-0835A
BOLT
$3.36¢1 679
1
#1-2
44100-43H50-YYG
TANK ASSY,FUEL (RED) *{BODY COLOR:YYG}*
$1195.69¢597 845
1
#12
34810-41F11
GUAGE ASSY, FUEL TANK
$134.11¢67 057
1
#13
44192-39G00
SHIELD, HEAT NO.1
$184.60¢92 299
1
#14
44191-43H00
SHIELD, HEAT NO.2
$108.94¢54 470
1
#2-1
68110-43H10-B89
.EMBLEM SET,FUEL TANK *{BODY COLOR:YUD}*
$58.28¢29 141
1
#2-2
68110-43H10-B9A
.EMBLEM SET,FUEL TANK *{BODY COLOR:YYG}*
$58.28¢29 141
1
