FRAME COVER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

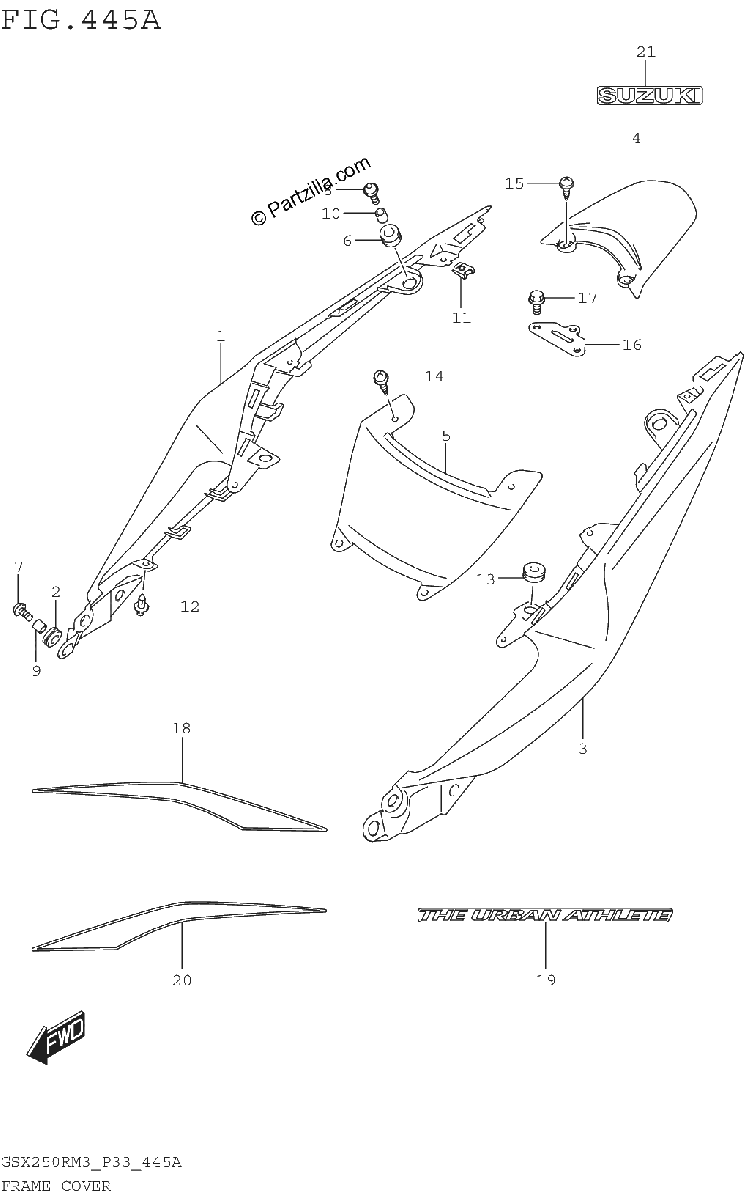

Diagrama de FRAME COVER

Repuestos

#1
47111-20K01-YYW
COVER, FRAME RH (RED)
$112.38¢56 189
1
#2
47161-48H10
CUSHION,FRAME COVER
$2.21¢1 104
1
#3
47211-20K01-YYW
COVER, FRAME LH (RED)
$121.36¢60 680
1
#4
47311-20K00
COVER, FRAME CENTER
$18.72¢9 361
1
#5
47312-20K01
COVER, FRAME CENTER FRONT
No Disponible
1
#6
47321-20K01
CUSHION,FRAME COVER R
$3.22¢1 610
1
#7
47331-20K00
SCREW, FRAME COVER REAR
$2.93¢1 466
1
#8
47331-20K00
SCREW, FRAME COVER REAR
$2.93¢1 466
1
#9
47332-20K00
SPACER, FRAME COVER REAR
$3.01¢1 507
1
#10
47332-20K00
SPACER, FRAME COVER REAR
$3.01¢1 507
1
#11
47399-48H00
NUT, UNDER COWL
$2.96¢1 478
1
#12
48292-32GH0
CLIP, UNDER COWL
$3.22¢1 610
1
#13
09320-08513
CUSHION (8X26X7)
$2.99¢1 495
1
#14
03541-0512A
SCREW
$1.64¢822
1
#15
03541-0512B
SCREW
$2.12¢1 058
1
#16
47810-20K00
BRACKET, FRAME COVER CTR
$10.32¢5 158
1
#17
01550-0612B
.BOLT
$2.85¢1 426
1
#18
68132-20K30-BKJ
TAPE, FRAME COVER RH (RED/BLACK)
$4.23¢2 116
1
#19
68136-20K00-17U
EMBLEM, FRAME COVER (GRAY)
$3.28¢1 639
1
#20
68142-20K30-BKJ
TAPE, FRAME COVER LH (RED/BLACK)
$4.23¢2 116
1
#21
68181-45H10-YD8
EMBLEM,SUZUKI (SILVER)
$2.68¢1 340
1
