FRAME DR Z400SM3 E28

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

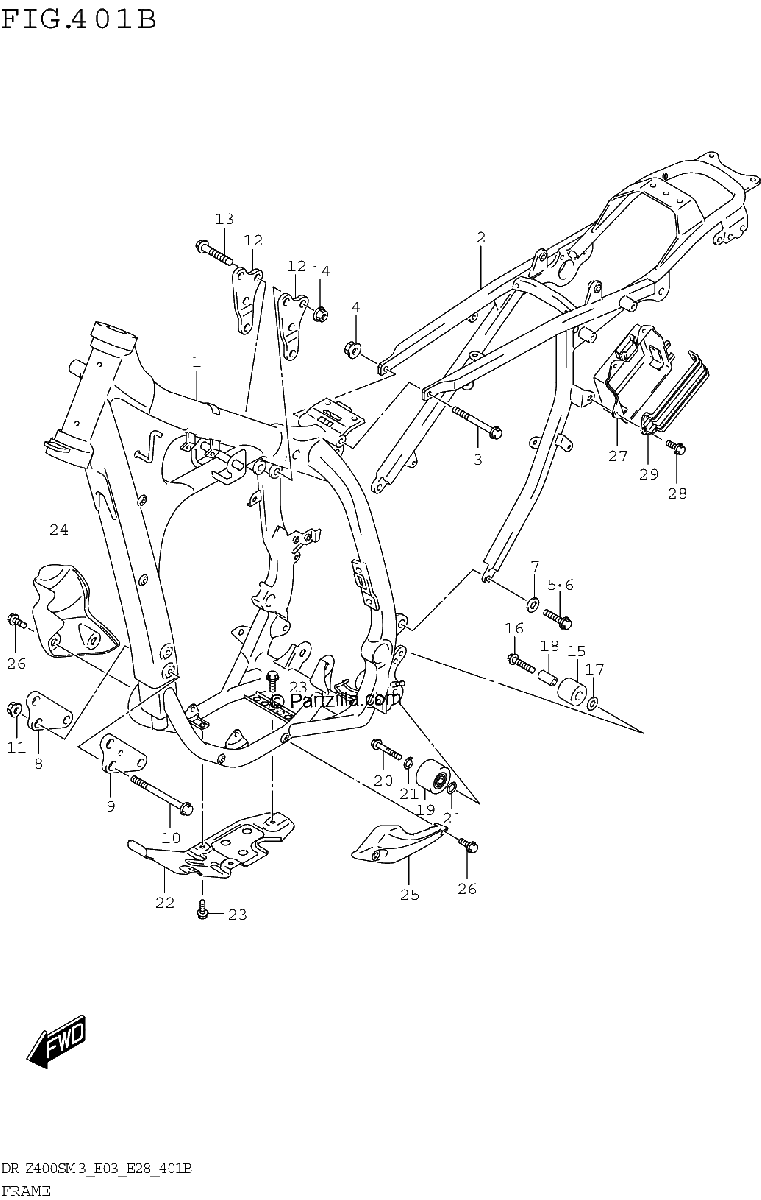

Diagrama de FRAME DR Z400SM3 E28

Repuestos

#1
41100-29F90-YPT
FRAME (GRAY)
$3472.17¢1 736 086
1
#2
41200-29F70
RAIL, SEAT
$1623.02¢811 509
1
#3
09103-08098
BOLT (8X115)
$4.66¢2 329
1
#4
08319-3108A
NUT
$2.77¢1 386
1
#5
09103-08364
BOLT (8X20)
$3.88¢1 938
1
#6
09104-08035
BOLT (8X18)
$3.24¢1 621
1
#7
09160-08120
WASHER (8.5X18X2)
$2.66¢1 328
1
#8
41911-29F20
PLATE, ENGINE MOUNT FRONT
$37.97¢18 987
1
#9
41911-29F30
PLATE,ENG MTG FRONT,L
$37.97¢18 987
1
#10
09103-08550
BOLT (8X90)
$6.79¢3 393
1
#11
08319-3108A
NUT
$2.77¢1 386
1
#12
41993-29F10
PLATE, ENGINE MOUNT REAR
$39.76¢19 878
1
#13
09103-08081
BOLT (8X50)
$4.48¢2 242
1
#14
08319-3108A
NUT
$2.77¢1 386
1
#15
43911-13E00
ROLLER, CHAIN CONTROL UPPER
$24.63¢12 317
1
#16
09103-08083
BOLT (8X41)
$4.05¢2 024
1
#17
08211-08201
WASHER
$2.47¢1 236
1
#18
09180-08215
SPACER (8.6X12.2X26.5)
$4.60¢2 300
1
#19
43910-27C11
ROLLER, CHAIN CONTROL
$80.33¢40 164
1
#20
09103-08083
BOLT (8X41)
$4.05¢2 024
1
#21
09181-08111
SHIM (8X12X1)
$2.33¢1 167
1
#22
42510-29F00
PROTECTOR, ENGINE
$170.18¢85 088
1
#23
01550-0612A
BOLT
$2.36¢1 179
1
#24
42521-29F00
GUARD, WATER PUMP
$25.85¢12 926
1
#25
42531-29F00
GUARD, MAG COVER
No Disponible
1
#26
09111-08087
BOLT (8X16.5)
$3.35¢1 673
1
#27
41541-29F00
HOLDER, BATTERY
$84.12¢42 061
1
#28
09111-06072
BOLT (6X17.8)
$2.42¢1 208
1
#29
41561-29F00
BAND, BATTERY HOLDER
$23.14¢11 569
1
