REAR SWINGINGARM DR Z400SM3 E28

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

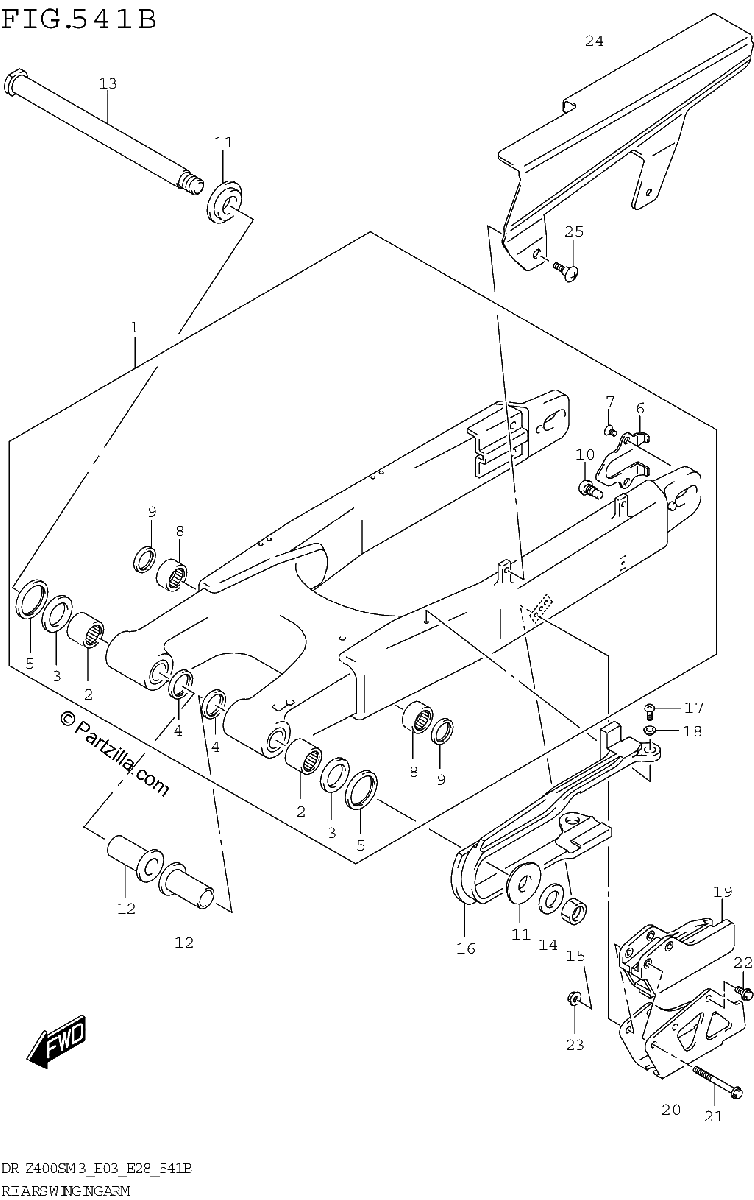

Diagrama de REAR SWINGINGARM DR Z400SM3 E28

Repuestos

#1
61000-29F51
SWINGINGARM ASSY, RR
$1762.31¢881 156
1
#2
09263-22017
.BEARING (22X29X30)
$26.55¢13 275
1
#3
09263-22064
.BEARING (22X35X2)
$36.38¢18 188
1
#4
09285-22006
OIL SEAL
$4.50¢2 250
1
#5
61262-36E00
.SEAL (29.2X37X4)
$8.49¢4 244
1
#6
61128-29E00
.PLATE, REAR SWINGING ARM AXL
$22.49¢11 244
1
#7
09126-05009
.SCREW (5X8)
$2.99¢1 494
1
#8
09263-20086
.BEARING (20X27X15)
$19.36¢9 681
1
#9
62624-14500
SEAL, DUST (19X27X4)
$7.36¢3 681
1
#10
61431-13E10
.STOPPER, CHAIN ADJUSTER
$9.44¢4 719
1
#11
61250-44E00
SPACER, SWINGING ARM PIVOT
$26.41¢13 206
1
#12
61252-36E00
SPACER, SWINGING ARM PIVOT
$72.79¢36 394
1
#13
61211-29F00
SHAFT, REAR SWINGING ARM PIVO
$110.72¢55 363
1
#14
08322-0116B
WASHER
$3.56¢1 781
1
#15
09159-16007
NUT
$14.81¢7 406
1
#16
61273-29F00
BUFFER, CHAIN TOUCH DEFENSE
$78.86¢39 431
1
#17
02112-0508A
SCREW
$1.86¢931
1
#18
09169-05022
WASHER
$4.19¢2 094
1
#19
61341-35G00
GUIDE, CHAIN
$57.30¢28 650
1
#20
61342-37F00
PLATE, CHAIN GUIDE
$87.03¢43 513
1
#21
01547-0650A
.BOLT
$3.15¢1 575
1
#22
01547-0612A
BOLT
$2.63¢1 313
1
#23
08319-3106A
.NUT
$2.63¢1 313
1
#24
61310-34E00
CASE, CHAIN
$127.88¢63 938
1
#25
09139-06083
SCREW (6X16)
$2.92¢1 463
1
