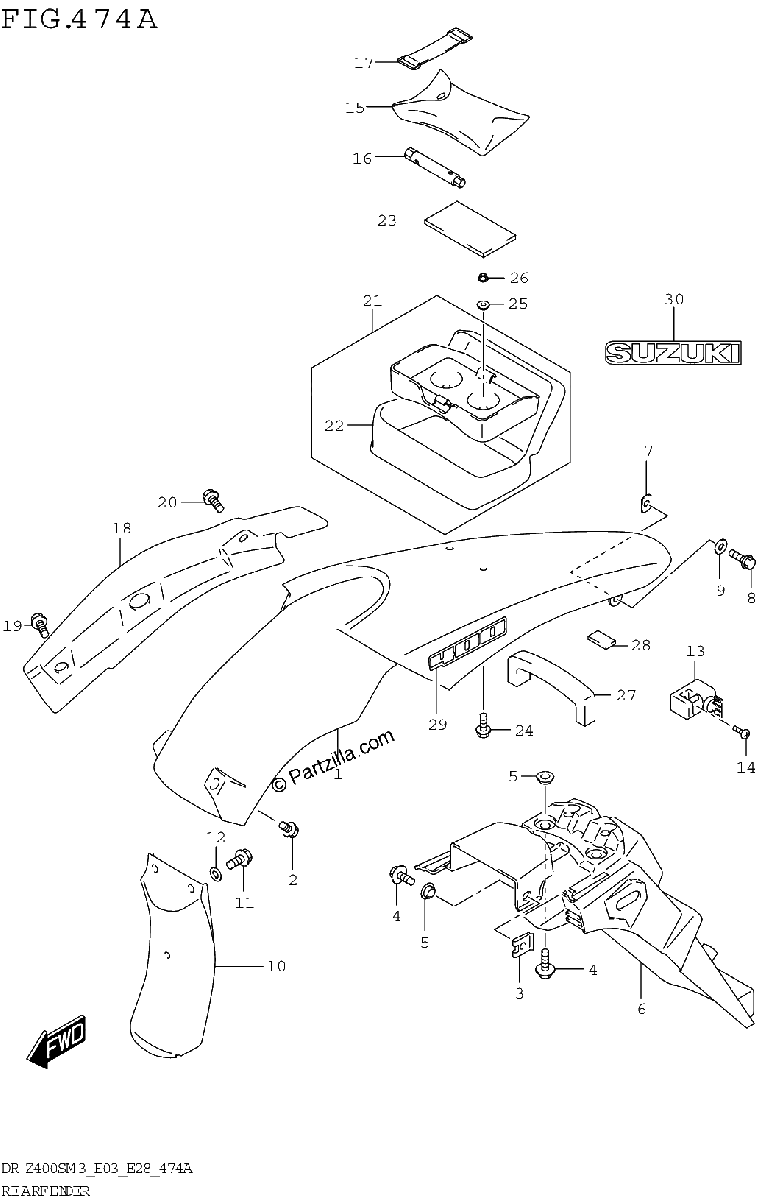

REAR FENDER DR Z400SM3 E03
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#2
BOLT (6X16)
$3.29¢1 644
#3
PLATE, REAR FENDER FITTING
$6.21¢3 105
#4
BOLT (6X20)
$2.36¢1 179
#5
WASHER
$3.69¢1 846
#6
EXTENSION, REAR FENDER
$119.51¢59 754
#7
NUT, COWL
$4.35¢2 173
#8
BOLT
$3.68¢1 840
#9
WASHER
$2.48¢1 242
#10
MUDGUARD, REAR FENDER FRONT
$30.16¢15 082
#1-1
FENDER, REAR (BLACK)
$164.20¢82 099
#11
BOLT
$2.91¢1 455
#1-2
FENDER, REAR (YELLOW) *{FOR YU1}*
$183.88¢91 943
#12
WASHER
$2.73¢1 363
#13
LOCK SET, HELMET
$189.75¢94 875
#14
SCREW (6X14)
$3.66¢1 829
#15
TOOL ASSY
$108.67¢54 338
#16
SPANNER, BOX (8X10)
$20.67¢10 333
#17
BAND
$5.22¢2 610
#18
MUDGUARD, REAR FENDER RH
$45.56¢22 781
#19
BOLT (6X18)
$4.61¢2 306
#20
BOLT (6X12)
$3.09¢1 547
#21
BAG ASSY, SEAT TAIL
$208.07¢104 035
#22
.BAG, SEAT TAIL
$129.41¢64 705
#23
CUSHION, REAR BAG
$15.70¢7 849
#24
BOLT (6X20)
$2.85¢1 426
#25
WASHER
$3.69¢1 846
#26
NUT
$3.16¢1 581
#27
CUSHION, REAR FENDER
$9.31¢4 658
#28
CUSHION (11X20X3)
$2.07¢1 035
#29-1
EMBLEM, REAR FENDER (GRAY/BLACK) *{FOR 019}*
$12.28¢6 141
#29-2
EMBLEM, REAR FENDER (YELLOW/BLACK) *{FOR YU1}*
$21.99¢10 994
#30-1
EMBLEM, SUZUKI (GRAY/BLACK) *{FOR 019}*
$9.08¢4 542
#30-2
EMBLEM, SUZUKI (YELLOW/BLACK) *{FOR YU1}*
$15.81¢7 906
