UNDER COWLING GSX R600

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

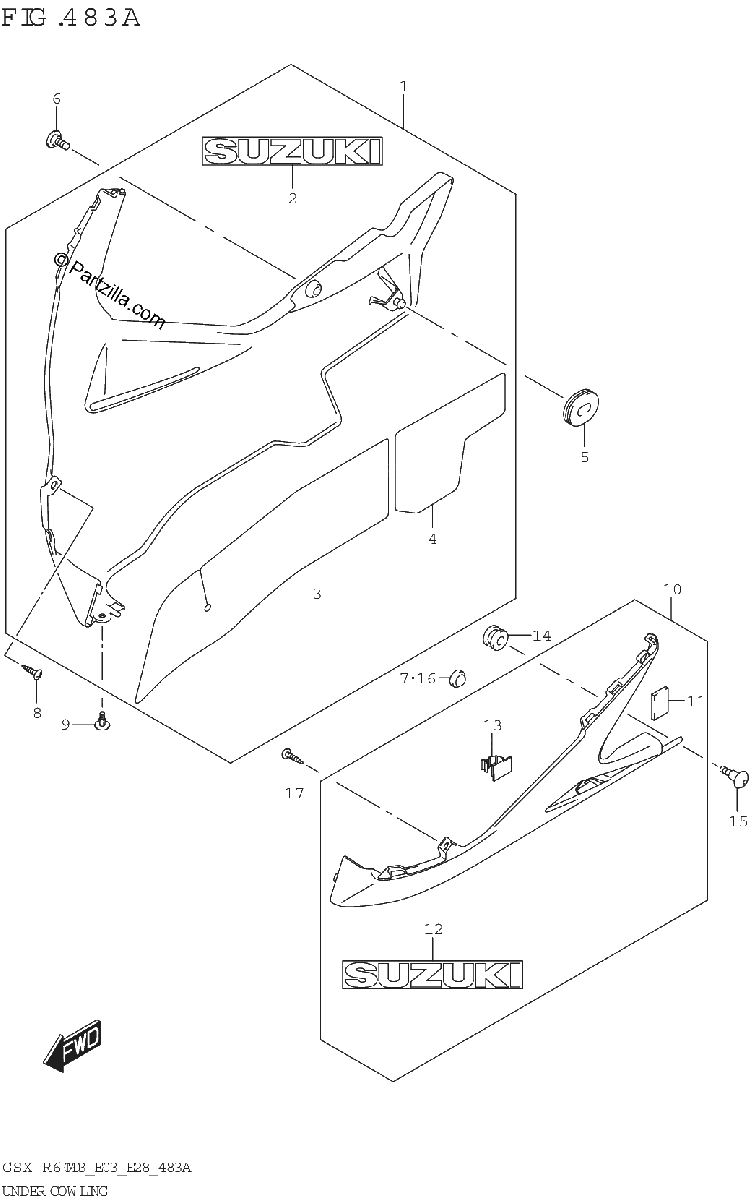

Diagrama de UNDER COWLING GSX R600

Repuestos

#2
68181-33C20-019
.EMBLEM (BLACK) | FOR ASX
$29.34¢14 668
1
#3
94479-14J00
.SHIELD, UNDER COWL HEAT
$20.49¢10 247
1
#4
94479-14J10
.SHIELD, UNDER COWL HEAT
$18.94¢9 470
1
#5
94478-14J00
CUSHION
$6.49¢3 243
1
#6
94476-14J00
SCREW (5X13) | RH
$4.93¢2 467
1
#7
09321-10018
CUSHION
$5.03¢2 513
1
#8
03541-0512A
SCREW
$1.64¢822
1
#9
94479-35F00
CLIP
$6.16¢3 082
1
#1-1
94470-14J00-6KX
COWLING,UNDER,R (WHITE) *{BODY COLOR:YUH}*
$283.23¢141 617
1
#11
47161-10FA1
.CUSHION,BRACKET NO.1
$5.98¢2 990
1
#1-2
94470-14J00-QT7
COWLING,UNDER,R (GRAY) *{BODY COLOR:CHL}*
$335.77¢167 883
1
#12
68181-33C20-019
.EMBLEM (BLACK) | FOR ASX
$29.34¢14 668
1
#13
09403-14311
.CLAMP
$5.85¢2 927
1
#14
09320-09016
CUSHION
$2.36¢1 179
1
#15
09139-06190
BOLT (6X20)
$4.52¢2 260
1
#16
09321-10018
CUSHION
$5.03¢2 513
1
#17
03541-0512A
SCREW
$1.64¢822
1
#10-1
94480-14J01-6KX
COWLING,UNDER,L (WHITE) *{BODY COLOR:YUH}*
$310.75¢155 377
1
#10-2
94480-14J01-QT7
COWLING,UNDER,L (GRAY) *{BODY COLOR:CHL}*
$285.87¢142 934
1
