FRAME CENTER COVER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

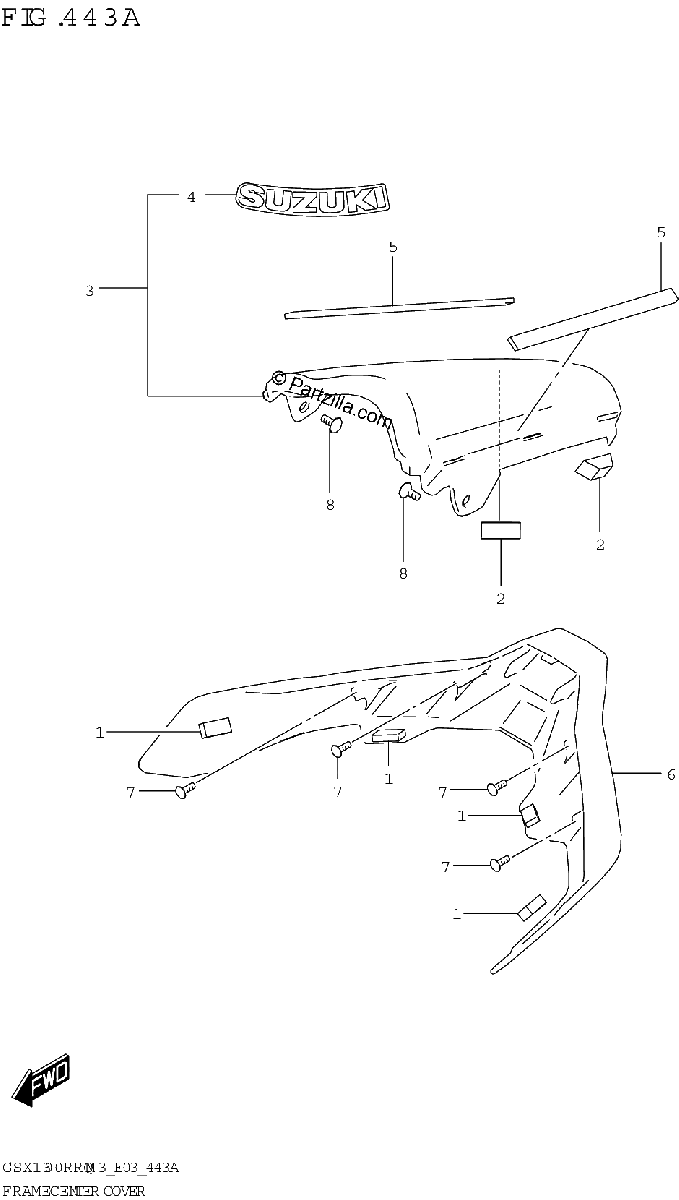

Diagrama de FRAME CENTER COVER

Repuestos

#1
47113-10L00
CUSHION,FRAME COVER UNDER
$0.94¢469
1
#2
47114-10L00
CUSHION,FRAME COVER CTR
$3.69¢1 844
1
#5
47324-10L00
CUSHION,FRAME COVER CTR
$1.77¢888
1
#7
03541-0412A
SCREW
$1.79¢894
1
#8
03541-0512A
SCREW
$1.79¢894
1
#3-1
47310-10L00-YUH
COVER,FRAME CTR (WHITE) *{BODY COLOR:JWN}*
$128.03¢64 013
1
#3-2
47310-10L00-YVB
COVER,FRAME CTR (BLACK) *{BODY COLOR:KGL}*
$128.03¢64 013
1
#3-3
47310-10L00-YLF
COVER,FRAME CTR (GRAY) *{BODY COLOR:CJH}*
$120.02¢60 012
1
#4-1
68641-19F01-PGZ
.EMBLEM,"SUZUKI" (GRAY) *{BODY COLOR:JWN}*
$10.84¢5 419
1
#4-2
68641-19F01-YLF
.EMBLEM,"SUZUKI" (GRAY) *{BODY COLOR:KGL}*
$10.84¢5 419
1
#4-3
68641-19F01-019
EMBLEM,"SUZUKI" (BLACK) *{BODY COLOR:QEB}*
$9.46¢4 731
1
#6-1
47511-10L00-YKY
COVER,FRAME UNDER (BLUE) *{BODY COLOR:JWN}*
$268.04¢134 019
1
#6-2
47511-10L00-YKV
COVER,FRAME UNDER (BLACK) *{BODY COLOR:KGL}*
$268.04¢134 019
1
#6-3
47511-10L00-YYG
COVER,FRAME UNDER (RED) *{BODY COLOR:CJH}*
$294.19¢147 094
1
