CLUTCH

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

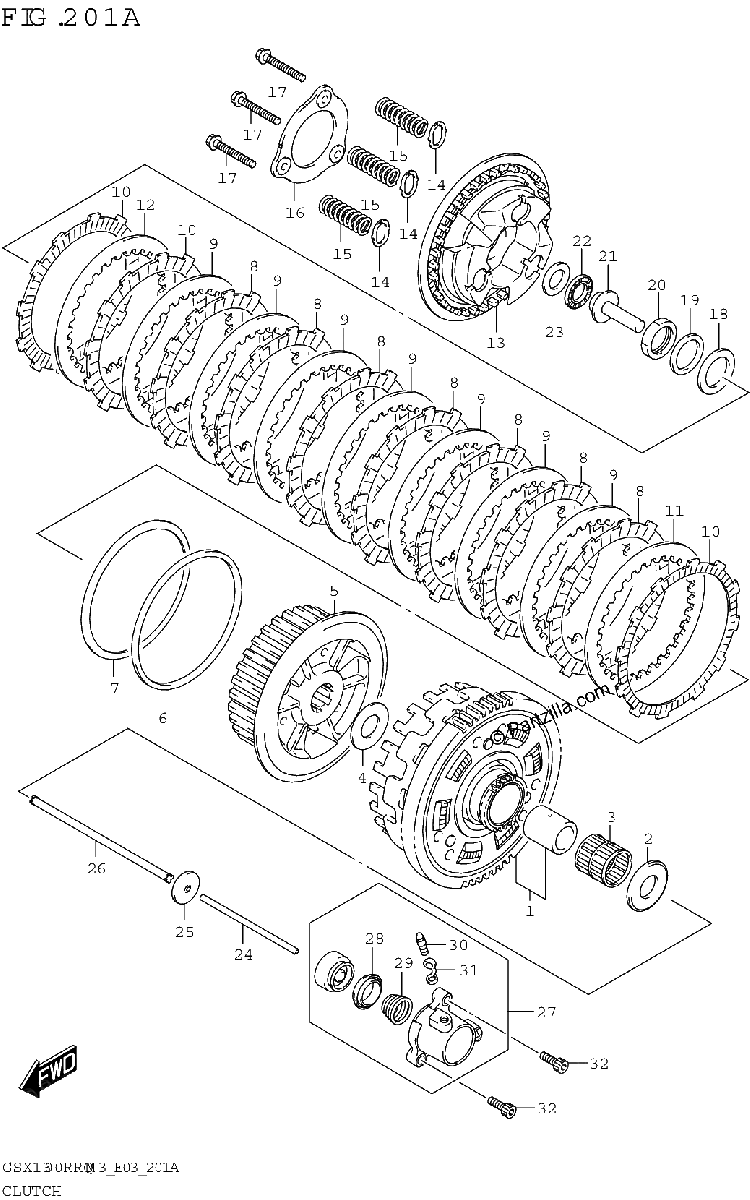

Diagrama de CLUTCH

Repuestos

#1
21200-24810
GEAR ASSY, PRIMARY DRIVEN
$719.84¢359 919
1
#2
09160-25073
WASHER (25X54X2.4)
$19.03¢9 513
1
#3
09263-35013
BEARING (35X40X39.8)
$41.79¢20 894
1
#4
21412-10L00
WASHER,CLUTCH SLEEVE HUB THR
$16.73¢8 363
1
#5
21411-31J10
HUB, CLUTCH SLEEVE
$196.71¢98 356
1
#6
21471-24F00
SEAT, WAVE WASHER
$17.00¢8 500
1
#7
21472-06G00
WASHER, CLUTCH PLATE WAVE
$25.46¢12 731
1
#8
21441-24F50
PLATE,CLUTCH DRIVE NO.1
$24.76¢12 381
1
#9
21451-24F00
PLATE, CLUTCH DRIVEN (T:2.0)
$13.83¢6 913
1
#10
21442-31J00
PLATE, CLUTCH DRIVE NO.2
$29.61¢14 806
1
#11
21451-24F20
PLATE,CLUTCH DRIVEN NO.1
$10.84¢5 419
1
#12
21452-31J00
PLATE, CLUTCH DRIVEN (T:2.0)
$19.91¢9 956
1
#13
21462-31J10
DISC, CLUTCH PRESSURE
$133.52¢66 762
1
#14
21415-31J00
SEAT, CLUTCH SPRING
$20.85¢10 425
1
#15
21413-10L00
SPRING,CLUTCH
$4.64¢2 319
1
#16
21414-31J00
WASHER
$26.23¢13 113
1
#17
21482-10L00
BOLT,CLUTCH SPRING
$4.03¢2 013
1
#18
09181-25223
SHIM (25X38X1)
$3.77¢1 888
1
#19
09164-24008
WASHER
$6.04¢3 019
1
#20
09159-24010
NUT
$15.53¢7 763
1
#21
23121-31E00
PIECE, CLUTCH PUSH
$29.34¢14 669
1
#22
09263-15003
BEARING (15X28X2)
$9.75¢4 875
1
#23
09160-15045
WASHER (15.5X28X1)
$4.58¢2 288
1
#24
23111-10L00
ROD,CLUTCH PUSH,L
$29.54¢14 769
1
#25
09283-06003
SEAL,OIL (6X12X4)
$3.91¢1 956
1
#26
23110-38B00
ROD, CLUTCH PUSH RH
$27.65¢13 825
1
#27
23160-02F12
CYLINDER,CLUTCH RELEASE
$133.01¢66 506
1
#28
23163-10F00
.CUP
$8.86¢4 431
1
#29
23164-10F00
.SPRING
$6.94¢3 469
1
#30
59121-01A00
.BLEEDER
$10.41¢5 206
1
#31
59122-01A00
.CAP, BLEEDER
$5.17¢2 588
1
#32
07130-0625A
BOLT
$3.44¢1 719
1
