REAR FENDER E03

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

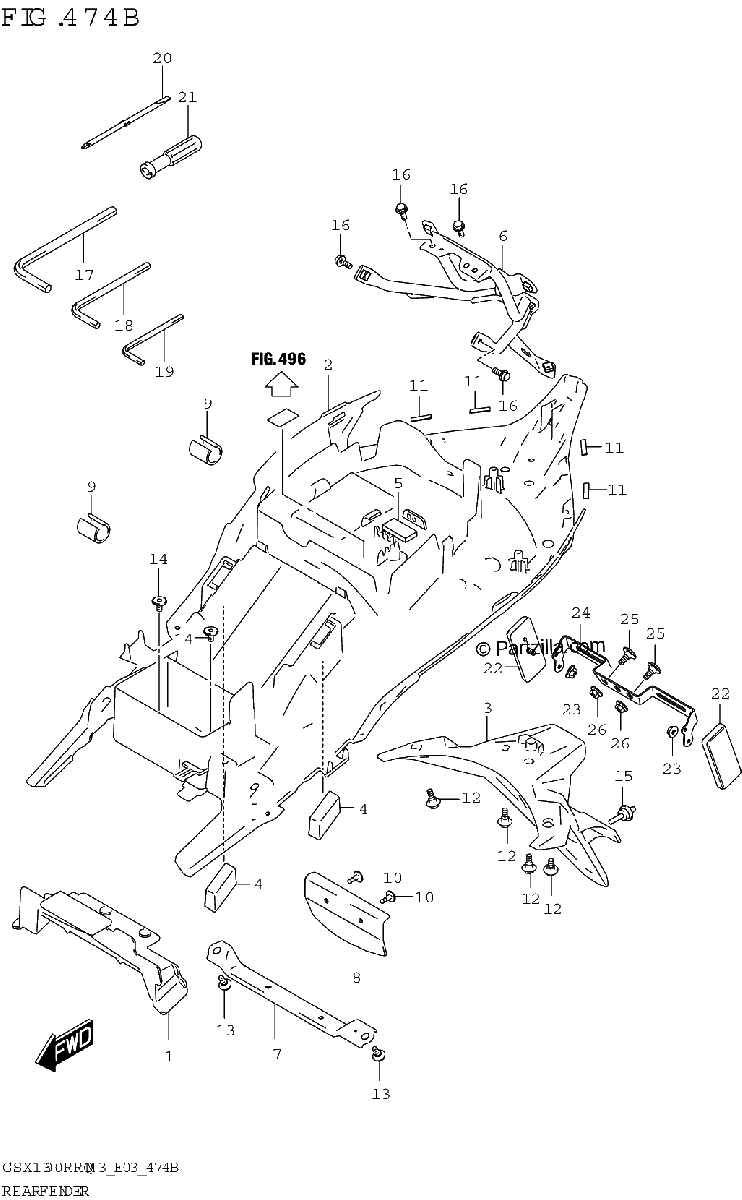

Diagrama de REAR FENDER E03

Repuestos

#1
47871-10L00
SHIELD,INNER
$37.93¢18 963
1
#2
63111-10L01
FENDER,REAR FRONT
$157.55¢78 775
1
#3
63112-10L00
FENDER,REAR REAR
$68.94¢34 471
1
#4
63113-10L00
CUSHION,REAR FENDER
$3.77¢1 886
1
#5
63114-10L00
CUSHION,REAR FENDER FRONT
$2.73¢1 363
1
#6
63120-10L00
BRACKET,REAR FENDER
$168.88¢84 439
1
#7
63130-10L00
BRACE,REAR FENDER FRONT
$33.27¢16 635
1
#8
63411-10L00
MUDGUARD,RR FENDER FR UPR
$16.67¢8 337
1
#9
92215-39H00
CUSHION, BATTERY BOX
$5.23¢2 616
1
#10
94479-35F00
CLIP
$6.16¢3 082
1
#11
94675-07L00
CUSHION,SIDE COWL
$3.02¢1 512
1
#12
09111-06072
BOLT (6X17.8)
$2.42¢1 208
1
#13
09111-06242
BOLT (6X16.5) | LH
No Disponible
1
#14
09139-06220
BOLT,UNDER COWL COVER
$4.58¢2 289
1
#15
09321-06037
CUSHION
$2.85¢1 426
1
#16
01550-0616A
BOLT
$2.36¢1 179
1
#17
96514-10L00
SPANNER,HEXAGON (6)
$7.27¢3 634
1
#18
96514-17K00
HEXAGON, SPANNER 5
$5.92¢2 961
1
#19
96514-17K10
HEXAGON, SPANNER 4
$4.11¢2 053
1
#20
09814-00015
DRIVER
No Disponible
1
#21
09814-00016
DRIVER GRIP
$5.09¢2 547
1
#22
35970-07F01
REFLECTOR ASSY, REAR SIDE
$22.91¢11 454
1
#23
08316-1005B
NUT
$2.99¢1 495
1
#24
47461-10L00
BRACKET,REAR SIDE RR
$15.04¢7 521
1
#25
09139-06137
SCREW (6X16)
$3.24¢1 621
1
#26
09159-06096
NUT
$3.79¢1 897
1
