STAND DR Z400SMM3 E28

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

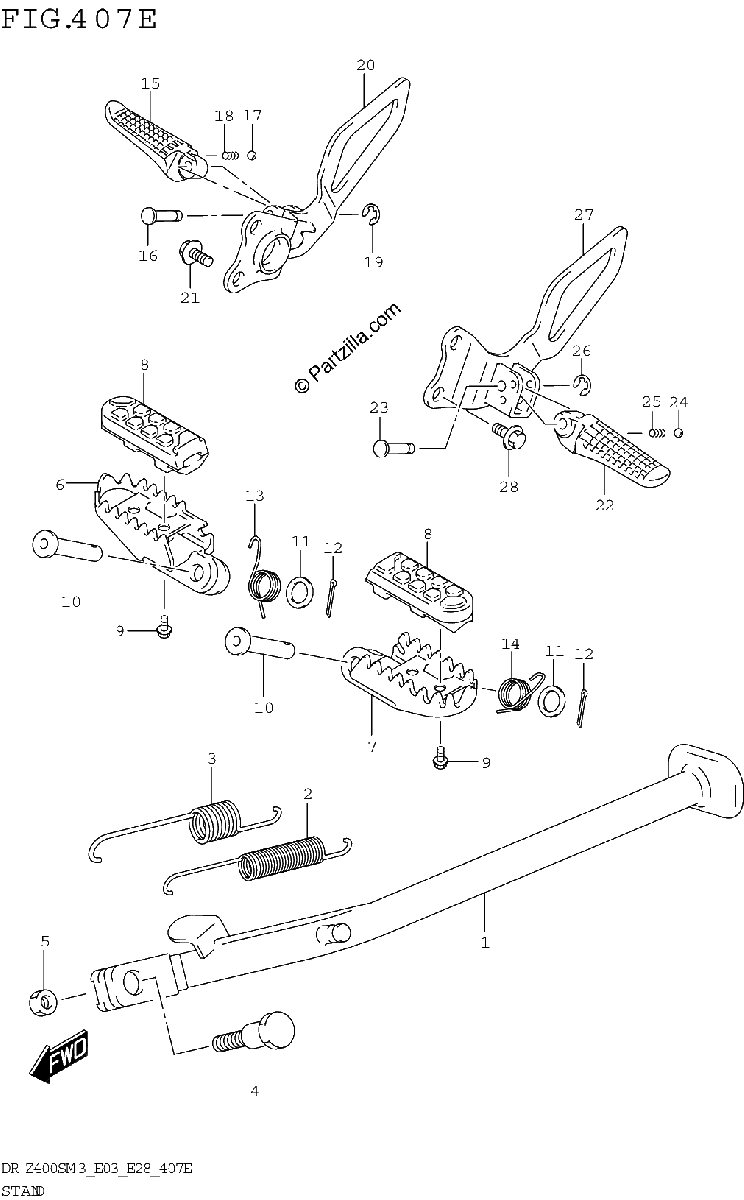

Diagrama de STAND DR Z400SMM3 E28

Repuestos

#1
42310-29F20
STAND, PROP
$183.77¢91 885
1
#2
09443-15046
SPRING | INNER
$9.13¢4 566
1
#3
09443-22017
SPRING | OUTER
$8.38¢4 192
1
#4
09111-10060
BOLT (10X33)
$4.45¢2 225
1
#5
42321-03FK0
NUT
$5.67¢2 835
1
#6
43550-29E01
FOOTREST, RH
$138.52¢69 259
1
#7
43560-29E01
FOOTREST, LH
$135.91¢67 954
1
#8
43530-29F00
RUBBER, FOOTREST
$31.39¢15 698
1
#9
01547-0510A
BOLT
$3.07¢1 535
1
#10
04111-2520A
COTTER PIN
$1.46¢730
1
#11
08322-0110B
WASHER
$2.84¢1 420
1
#12
09200-10019
PIN (10X41.5)
$7.38¢3 691
1
#13
09448-18029
SPRING | LH
$5.80¢2 898
1
#14
09448-18030
SPRING | RH
$5.80¢2 898
1
#15
43611-33E11
BAR, PILLION FOOTREST RH
$69.11¢34 558
1
#16
87259-85510
PIN, PILLION FOOTREST
$5.86¢2 932
1
#17
06111-07004
.BALL
$1.46¢730
1
#18
09440-05005
.SPRING
$1.70¢851
1
#19
08332-1104B
.E RING
$2.15¢1 075
1
#20
43650-29F20
BRACKET, PILLION RH
$107.95¢53 975
1
#21
01550-0816B
BOLT
$3.29¢1 644
1
#22
43621-33E11
BAR, PILLION FOOTREST LH
$69.11¢34 558
1
#23
87259-85510
PIN, PILLION FOOTREST
$5.86¢2 932
1
#24
06111-07004
.BALL
$1.46¢730
1
#25
09440-05005
.SPRING
$1.70¢851
1
#26
08332-1104B
.E RING
$2.15¢1 075
1
#27
43750-29F00
BRACKET, PILLION LH
$96.34¢48 168
1
#28
01550-0816B
BOLT
$3.29¢1 644
1
