REAR FENDER DR Z400SMM3 E33

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

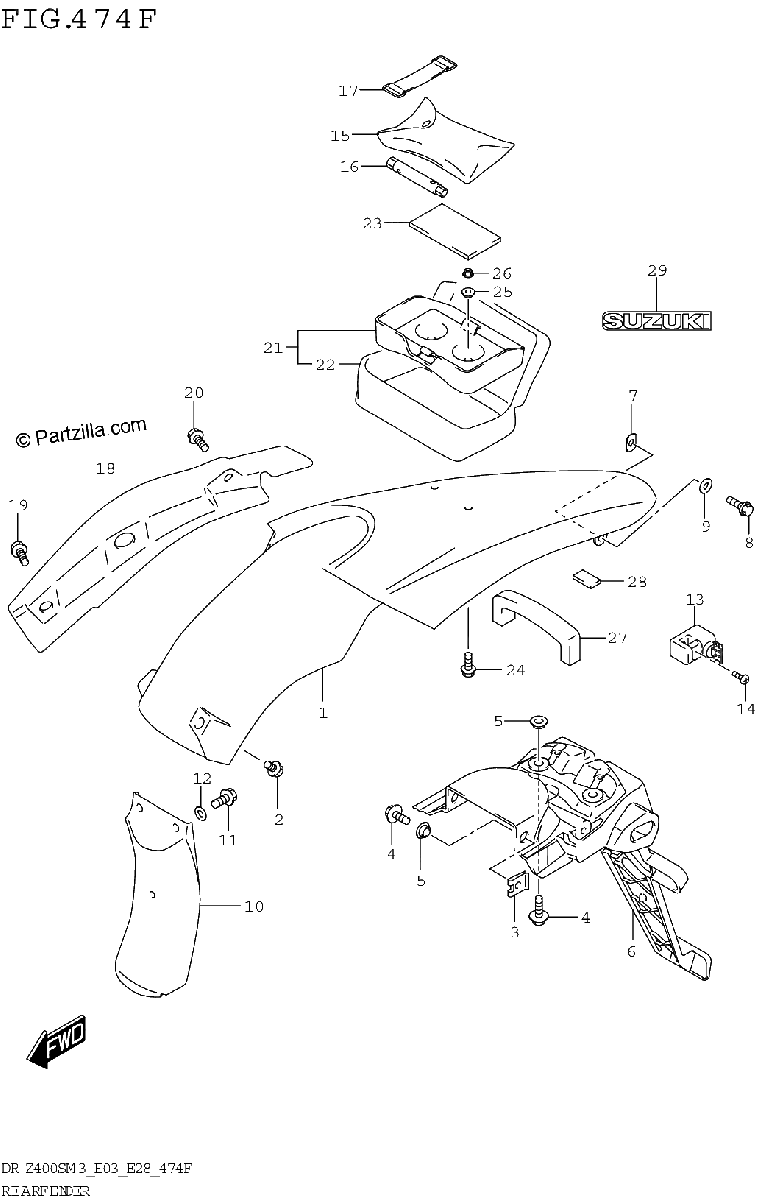

Diagrama de REAR FENDER DR Z400SMM3 E33

Repuestos

#2
09113-06001
BOLT (6X16)
$3.29¢1 644
1
#3
63312-13E01
PLATE, REAR FENDER FITTING
$6.21¢3 105
1
#4
09116-06143
BOLT (6X20)
$2.36¢1 179
1
#5
09169-06073
WASHER
$3.69¢1 846
1
#6
63311-29FA1
EXTENSION, REAR FENDER
$115.15¢57 575
1
#7
94484-24F00
NUT, COWL
$4.35¢2 173
1
#8
01547-0512B
BOLT
$3.68¢1 840
1
#9
09169-05024
WASHER
$2.48¢1 242
1
#10
63411-29F00
MUDGUARD, REAR FENDER FRONT
$30.16¢15 082
1
#1-1
63113-29FA0-YLW
FENDER, REAR (BLUE) *{FOR CKS}*
$183.88¢91 943
1
#11
01547-0616B
BOLT
$2.91¢1 455
1
#1-2
63113-29FA0-30H
FENDER, REAR (WHITE)
$170.51¢85 255
1
#12
09169-06045
WASHER
$2.73¢1 363
1
#13
95700-41821
LOCK SET, HELMET
$189.75¢94 875
1
#14
09139-06089
SCREW (6X14)
$3.66¢1 829
1
#15
09800-21092
TOOL ASSY
$108.67¢54 338
1
#16
09816-00186
SPANNER, BOX (8X10)
$20.67¢10 333
1
#17
09462-00008
BAND
$5.22¢2 610
1
#18
63114-29F00
MUDGUARD, REAR FENDER RH
$45.56¢22 781
1
#19
09111-06081
BOLT (6X18)
$4.61¢2 306
1
#20
09111-06107
BOLT (6X12)
$3.09¢1 547
1
#21
94900-29FB1
BAG ASSY, SEAT TAIL
$208.07¢104 035
1
#22
94910-29FB0
.BAG, SEAT TAIL
$129.41¢64 705
1
#23
94915-44E00
CUSHION, REAR BAG
$15.70¢7 849
1
#24
01550-0620B
BOLT (6X20)
$2.85¢1 426
1
#25
09169-06063
WASHER
$3.69¢1 846
1
#26
09159-06078
NUT
$3.16¢1 581
1
#27
47161-29B00
CUSHION, REAR FENDER
$9.31¢4 658
1
#28
33652-22D00
CUSHION (11X20X3)
$2.07¢1 035
1
#29-1
68721-13A01-DVJ
EMBLEM, SUZUKI (WHITE/BLUE) *{FOR CKS}*
$9.08¢4 542
1
#29-2
68721-13A01-8YM
EMBLEM,"SUZUKI" (WHITE/BLACK) *{BODY COLOR:30H}*
$11.56¢5 779
1
