FRAME DR Z400SMM3 E28

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

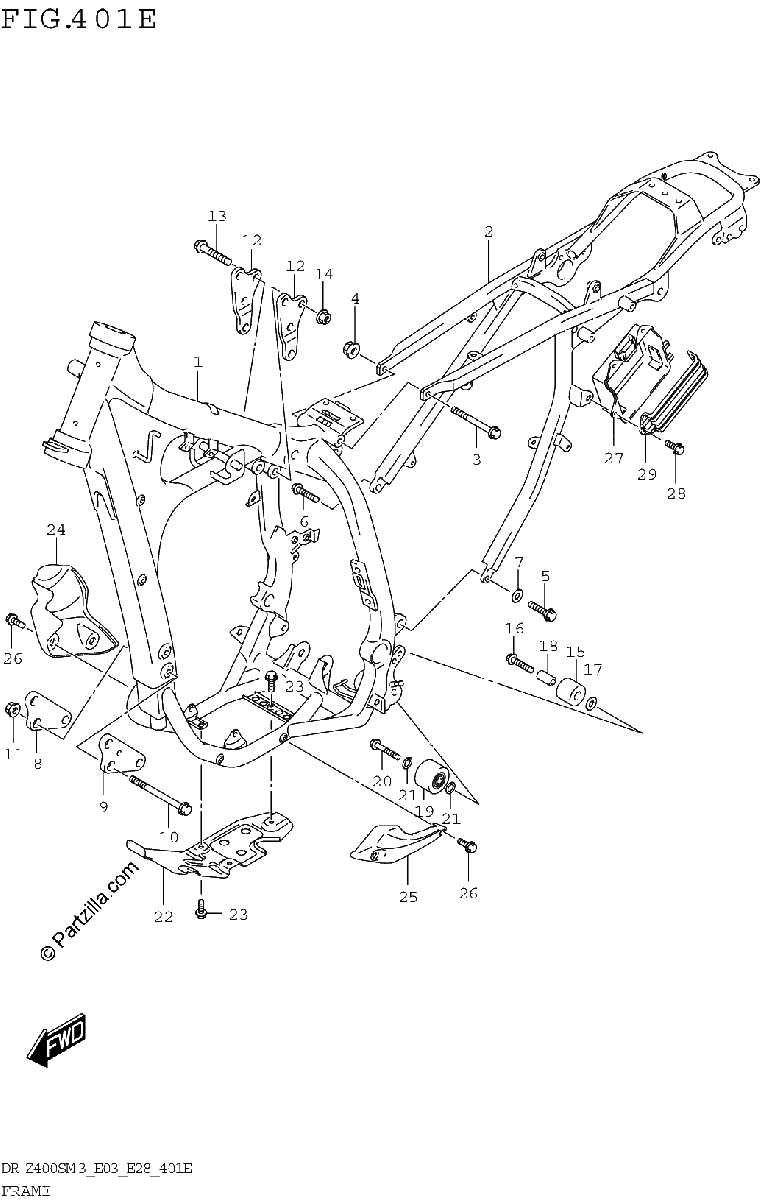

Diagrama de FRAME DR Z400SMM3 E28

Repuestos

#1
41100-29F90-019
FRAME (BLACK)
$3839.02¢1 919 512
1
#2
41200-29F70
RAIL, SEAT
$1764.15¢882 075
1
#3
09103-08098
BOLT (8X115)
$5.06¢2 531
1
#4
08319-3108A
NUT
$3.01¢1 506
1
#5
09103-08364
BOLT (8X20)
$4.21¢2 106
1
#6
09104-08035
BOLT (8X18)
$3.52¢1 763
1
#7
09160-08120
WASHER (8.5X18X2)
$2.89¢1 444
1
#8
41911-29F20
PLATE, ENGINE MOUNT FRONT
$41.28¢20 638
1
#9
41911-29F30
PLATE,ENG MTG FRONT,L
$41.28¢20 638
1
#10
09103-08550
BOLT (8X90)
$7.38¢3 688
1
#11
08319-3108A
NUT
$3.01¢1 506
1
#12
41993-29F10
PLATE, ENGINE MOUNT REAR
$43.21¢21 606
1
#13
09103-08081
BOLT (8X50)
$4.88¢2 438
1
#14
08319-3108A
NUT
$3.01¢1 506
1
#15
43911-13E00
ROLLER, CHAIN CONTROL UPPER
$26.78¢13 388
1
#16
09103-08083
BOLT (8X41)
$4.40¢2 200
1
#17
08211-08201
WASHER
$2.69¢1 344
1
#18
09180-08215
SPACER (8.6X12.2X26.5)
$5.00¢2 500
1
#19
43910-27C11
ROLLER, CHAIN CONTROL
$87.31¢43 656
1
#20
09103-08083
BOLT (8X41)
$4.40¢2 200
1
#21
09181-08111
SHIM (8X12X1)
$2.54¢1 269
1
#22
42510-29F00
PROTECTOR, ENGINE
$184.97¢92 488
1
#23
01550-0612A
BOLT
$2.56¢1 281
1
#24
42521-29F00
GUARD, WATER PUMP
$28.10¢14 050
1
#25
42531-29F00
GUARD, MAG COVER
No Disponible
1
#26
09111-08087
BOLT (8X16.5)
$3.64¢1 819
1
#27
41541-29F00
HOLDER, BATTERY
$91.44¢45 719
1
#28
09111-06072
BOLT (6X17.8)
$2.63¢1 313
1
#29
41561-29F00
BAND, BATTERY HOLDER
$25.15¢12 575
1
