FUEL TANK GSX R750Z E33

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

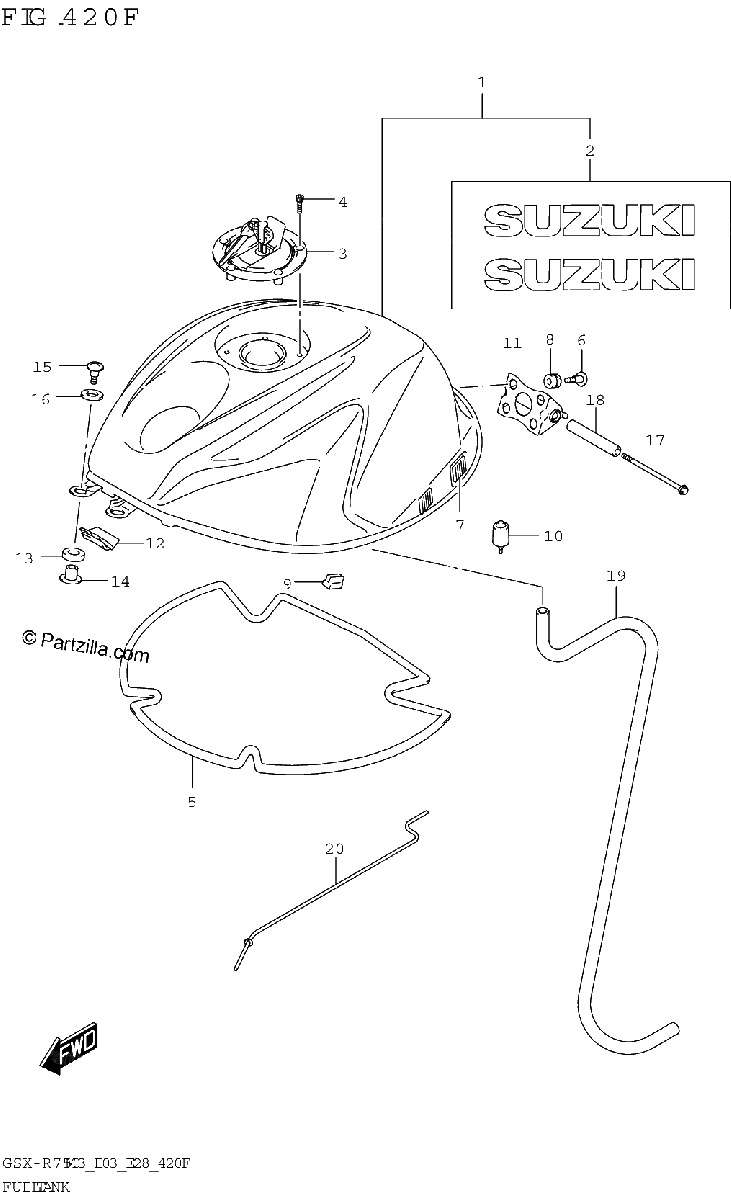

Diagrama de FUEL TANK GSX R750Z E33

Repuestos

#2
68111-14J00-YWW
EMBLEM,"SUZUKI" (WHITE)
$38.85¢19 425
1
#3
44200-16871
CAP SET,FUEL TANK FILLER
$207.88¢103 938
1
#4
44244-11J00
BOLT
$4.90¢2 450
1
#5
44191-14J00
SHIELD, FUEL TANK HEAT
$125.16¢62 581
1
#6
44543-14J00
SCREW
$9.50¢4 750
1
#7
44572-13G00
FASTENER
$13.19¢6 594
1
#8
09320-08071
CUSHION
$3.98¢1 988
1
#9
44276-21H01
CUSHION,FUEL TANK COVER
$7.11¢3 556
1
#10
44542-41G00
CUSHION, FUEL TANK REAR
$9.18¢4 588
1
#1-1
44100-14JL0-YSF
TANK ASSY,FUEL (BLUE) *{BODY COLOR:GUL}*
$1011.44¢505 719
1
#11
44530-41G01
BRACKET, FUEL TANK REAR
$54.75¢27 375
1
#1-2
44100-14JP0-YSF
TANK ASSY,FUEL (BLUE) *{BODY COLOR:GUL}*
$1011.44¢505 719
1
#12
44546-44H00
RUBBER, TANK FRONT
$18.02¢9 013
1
#13
44511-16G01
CUSHION,FUEL TANK FRONT
$4.91¢2 456
1
#14
44512-16G00
SPACER, FUEL TANK FRONT
$8.86¢4 431
1
#15
09139-06192
SCREW (6X25)
$3.80¢1 900
1
#16
09160-06012
WASHER (6.5X22X1.6)
$2.10¢1 050
1
#17
09106-06119
BOLT (6X110)
$6.79¢3 394
1
#18
44561-18G00
SPACER, FUEL TANK REAR
$20.23¢10 113
1
#19
44423-14J01
HOSE,FUEL TANK WATER DRAIN
$28.06¢14 031
1
#20
44574-35F00
STAY | OPT
$18.09¢9 044
1
