CARBURETOR

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

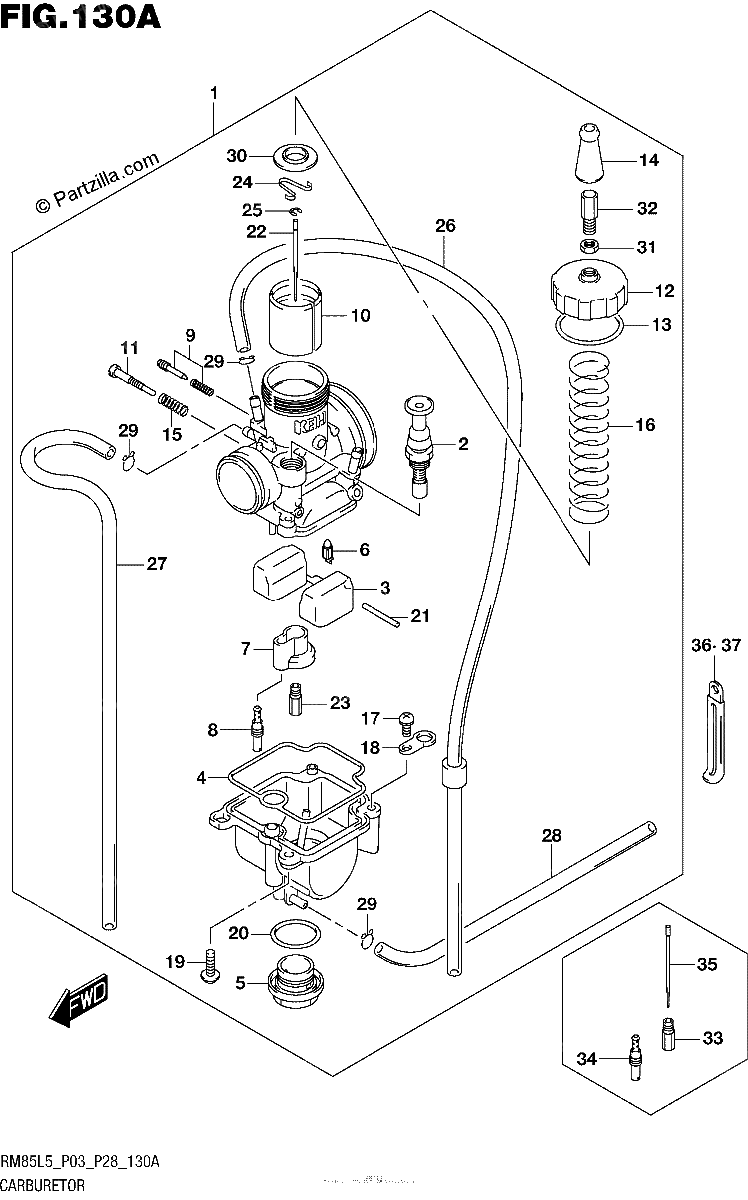

Diagrama de CARBURETOR

Repuestos

#1
13200-03B30
CARBURETOR ASSY
$258.06¢129 031
1
#2
13410-03B00
.VALVE ASSY, STARTER
$125.28¢62 638
1
#3
13252-03B00
.FLOAT ASSY
$47.79¢23 894
1
#4
13251-03B00
.GASKET
$36.23¢18 113
1
#5
13247-28E00
.BOLT, DRAIN
$34.77¢17 388
1
#6
13370-03B01
.VALVE ASSY, NEEDLE
$74.54¢37 269
1
#7
13331-03B00
.HOLDER, JET
$34.02¢17 013
1
#8
09492-50023
JET, PILOT (50) | OPT
$22.79¢11 394
1
#9
13269-03B00
.ADJUST SCREW SET
$49.79¢24 894
1
#10
13551-03B00
.THROTTLE VALVE
$148.90¢74 450
1
#11
13267-03B00
.SCREW, STOP
$20.35¢10 175
1
#12
13261-03B00
.COVER
$48.84¢24 419
1
#13
13266-03B00
.GASKET
$8.41¢4 206
1
#14
13681-03B00
.CAP
$7.79¢3 894
1
#15
13268-03B00
.SPRING
$11.06¢5 531
1
#16
13573-03B00
.SPRING
$22.88¢11 438
1
#17
02112-14087
.SCREW
$3.13¢1 563
1
#18
13693-28E00
.PLATE
$11.06¢5 531
1
#19
13601-14F80
.SCREW
$4.84¢2 419
1
#20
13246-28E00
.O RING
$7.97¢3 988
1
#21
13254-92311
.PIN, FLOAT
$2.88¢1 438
1
#22
13383-03B20
NEEDLE (24NAAH) | OPT
$26.60¢13 300
1
#23
09491-25020
JET, MAIN (128) | OPT
$23.21¢11 606
1
#24
13398-03B00
.CLIP
$11.60¢5 800
1
#25
13394-28E00
.CLIP, NEEDLE
$6.90¢3 450
1
#26
13686-03B00
.PIPE ASSY
$10.35¢5 175
1
#27
13686-36E00
.HOSE, (4X7X620) | L:620-300
$12.25¢6 125
1
#28
13686-36E00
.HOSE, (4X7X620) | L:620-300
$12.25¢6 125
1
#29
09401-06101
CLIP
$2.69¢1 344
1
#30
13629-03B00
.VALVE PLATE
$7.52¢3 762
1
#31
13661-03B00
.NUT
$7.16¢3 581
1
#32
13577-03B00
.ADJUST BOLT
$11.53¢5 763
1
#33
13341-03B00
.JET, NEEDLE
$24.21¢12 106
1
#33
09491-23027
JET, MAIN (115) | OPT
$23.65¢11 825
1
#33
09491-23028
JET, MAIN (118) | OPT
No Disponible
1
#33
09491-24030
JET, MAIN (120) | OPT
$23.65¢11 825
1
#33
09491-29014
JET, MAIN (145) | OPT
$11.69¢5 844
1
#33
09491-24031
JET, MAIN (122) | OPT
$23.65¢11 825
1
#33
09491-25019
JET, MAIN (125) | OPT
$23.65¢11 825
1
#33
09491-28020
JET, MAIN (142) | OPT
$23.65¢11 825
1
#33
09491-28019
JET, MAIN (140) | OPT
No Disponible
1
#33
09491-27017
JET, MAIN (138) | OPT
No Disponible
1
#33
09491-27016
JET, MAIN (135) | OPT
No Disponible
1
#33
09491-26018
JET, MAIN (132) | OPT
$23.65¢11 825
1
#33
09491-26017
JET, MAIN (130) | OPT
$23.65¢11 825
1
#33
09491-25020
JET, MAIN (128) | OPT
$23.21¢11 606
1
#34
09492-45032
JET, PILOT (45) | OPT
$22.79¢11 394
1
#34
09492-48013
JET, PILOT (48) | OPT
$22.79¢11 394
1
#34
09492-50023
JET, PILOT (50) | OPT
$22.79¢11 394
1
#34
09492-52011
JET, PILOT (52) | OPT
$23.21¢11 606
1
#34
09492-55017
JET, PILOT (55) | OPT
$23.65¢11 825
1
#34
09492-58001
JET, PILOT (58) | OPT
$24.31¢12 156
1
#35
13383-03B50
NEEDLE (24NCDF) | OPT
No Disponible
1
#35
13383-03B00
NEEDLE (24NAAF) | OPT
No Disponible
1
#35
13383-03B10
NEEDLE (24NAAG) | OPT
No Disponible
1
#35
13383-03B60
NEEDLE (24NCDG) | OPT
No Disponible
1
#35
13383-03B20
NEEDLE (24NAAH) | OPT
$26.60¢13 300
1
#35
13383-03B30
NEEDLE (24NAAJ) | OPT
$27.60¢13 800
1
#35
13383-03B40
NEEDLE (24NAAK) | OPT
$27.60¢13 800
1
#35
13383-03B90
NEEDLE (24NCDK) | OPT
No Disponible
1
#35
13383-03B80
NEEDLE (24NCDJ) | OPT
No Disponible
1
#35
13383-03B70
NEEDLE (24NCDH) | OPT
No Disponible
1
#36
09404-06429
CLAMP (L:45)
$2.33¢1 163
1
#37
09404-08418
CLAMP (L:65)
$2.71¢1 356
1
