LH FRONT FORK DAMPER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

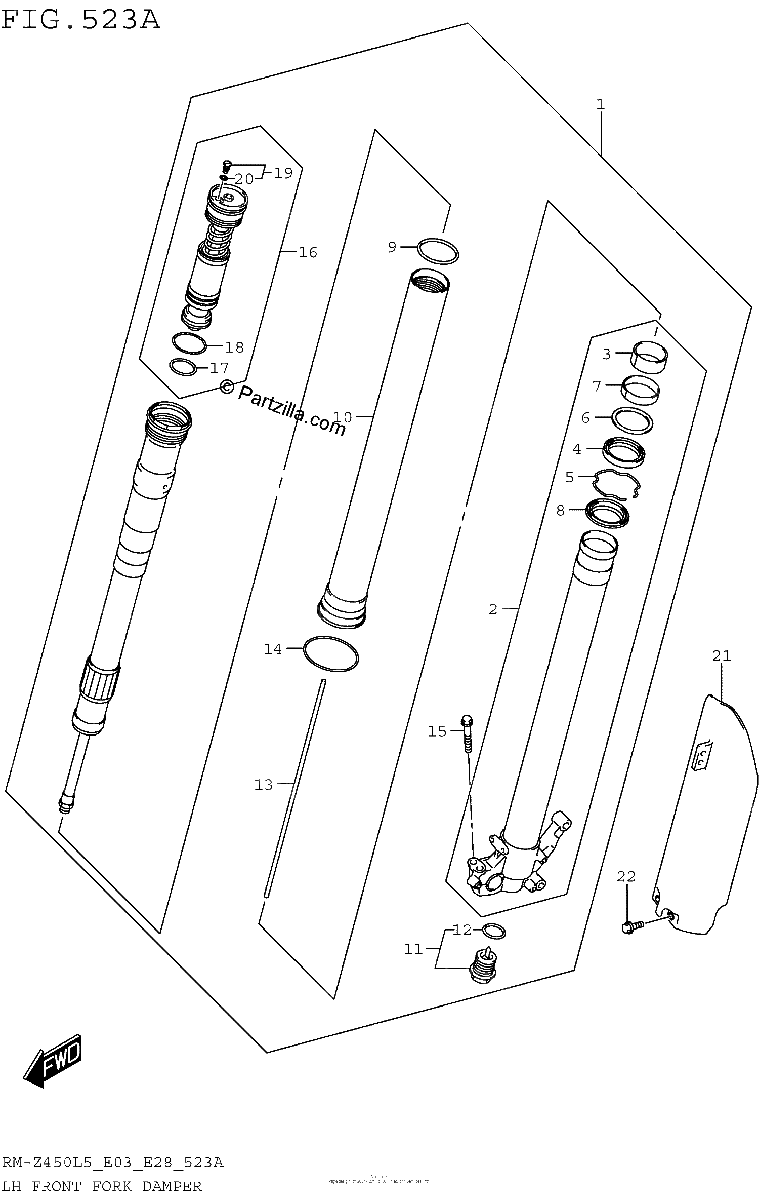

Diagrama de LH FRONT FORK DAMPER

Repuestos

#1
51104-28H40
DAMPER ASSY, FRONT FORK LH
$3469.63¢1 734 813
1
#2
51120-28H40
.TUBE, INNER LH
$810.02¢405 013
1
#3
51127-28H40
..BUSH, SLIDE
$38.46¢19 231
1
#4
51153-36E00
..SEAL, OIL
$48.85¢24 425
1
#5
51156-36E00
..RING, OIL SEAL STOPPER
$11.40¢5 700
1
#6
51158-36E00
..SPACER, SEAL
$12.66¢6 331
1
#7
51167-28H40
..BUSH, GUIDE
$37.63¢18 813
1
#8
51173-28H40
..SEAL, DUST
$50.27¢25 138
1
#9
51118-28H30
..O RING
$6.54¢3 269
1
#10
51140-28H40
.TUBE, OUTER
$796.44¢398 219
1
#11
51170-28H40
.BOLT, CENTER
$150.96¢75 481
1
#12
51122-28H40
..O RING
$5.27¢2 637
1
#13
51191-28H30
.ROD, PUSH
$19.84¢9 919
1
#14
51211-28H40
.RING, STOPPER
$19.03¢9 513
1
#15
51328-37F80
.BOLT
$8.65¢4 325
1
#16
51350-28H40
.BOLT, FORK
No Disponible
1
#17
51175-28H40
..O RING
$6.78¢3 388
1
#18
51187-47H00
..O RING
$8.49¢4 244
1
#19
51357-36F20
..BOLT, PLUG
$18.88¢9 438
1
#20
51358-28E30
...O RING
$5.79¢2 894
1
#21
51510-28H70
PROTECTOR, FRONT FORK LH
$140.04¢70 019
1
#22
09111-06098
BOLT (6X10)
$3.98¢1 988
1
