FRAME COVER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

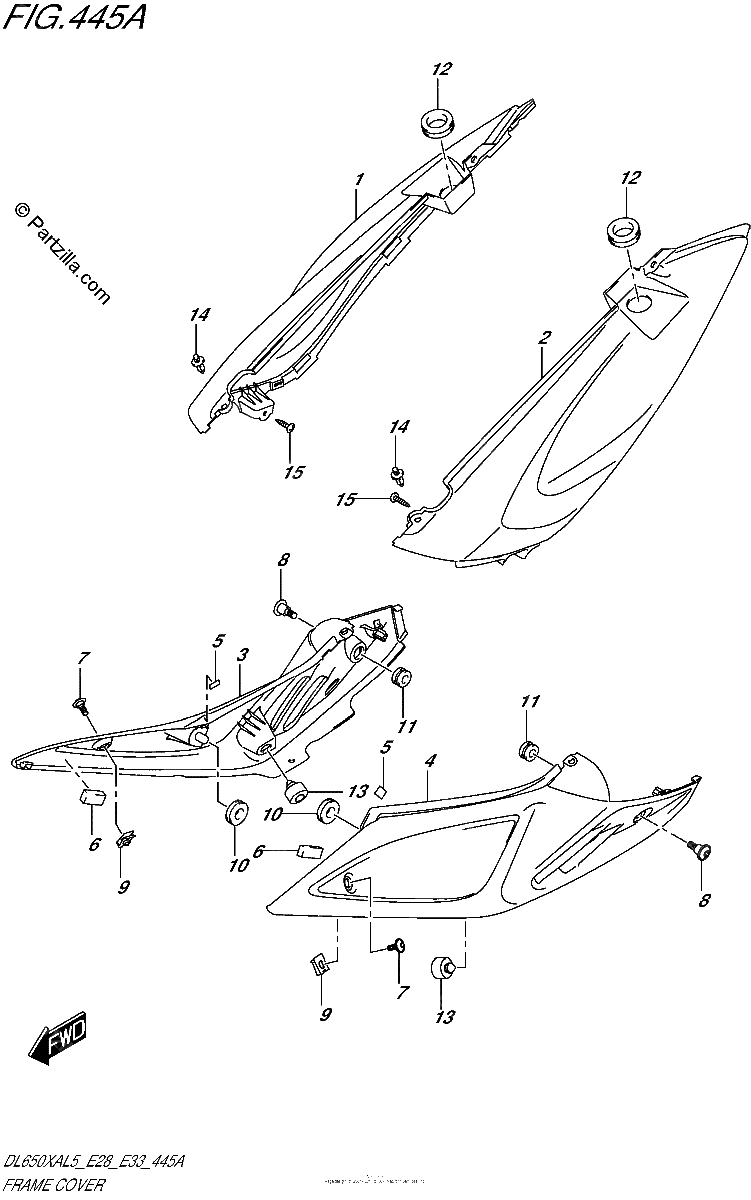

Diagrama de FRAME COVER

Repuestos

#1
47111-11J01-YSF
COVER, FRAME RH (BLUE)
$209.27¢104 637
1
#1
47111-11J01-YYG
COVER, FRAME RH (RED)
$189.54¢94 769
1
#1
47111-11J01-RB5
COVER, FRAME RH (WHITE)
$179.40¢89 700
1
#1
47111-11J02-PGZ
COVER, FRAME RH (GRAY)
$171.69¢85 844
1
#2
47211-11J01-YYG
COVER, FRAME LH (RED)
$189.54¢94 769
1
#2
47211-11J01-YSF
COVER, FRAME LH (BLUE)
$214.54¢107 269
1
#2
47211-11J01-RB5
COVER, FRAME LH (WHITE)
$195.40¢97 700
1
#2
47211-11J01-PGZ
COVER, FRAME LH (GRAY)
$190.03¢95 013
1
#3
47411-11J00
COVER, FRAME SIDE RH
$94.77¢47 387
1
#4
47511-11J00
COVER, FRAME SIDE LH
$112.06¢56 031
1
#5
63115-37H00
.CUSHION, PIVOT COVER NO.1
$4.45¢2 225
1
#6
94423-10G00
CUSHION, FRAME COVER
$5.80¢2 900
1
#7
09139-05074
BOLT (5X13)
$3.36¢1 681
1
#8
09139-06179
BOLT (6X20)
$6.66¢3 331
1
#9
09148-05052
NUT
$3.96¢1 981
1
#10
09320-08028
CUSHION
$3.65¢1 825
1
#11
09320-09016
CUSHION
$2.56¢1 281
1
#12
09320-20010
CUSHION
$3.52¢1 763
1
#13
09321-10001
CUSHION
$3.39¢1 694
1
#14
09409-06314-5PK
CLIP (BLACK)
$3.60¢1 800
1
#15
03541-0416A
SCREW
$1.86¢931
1
