REAR MASTER CYLINDER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

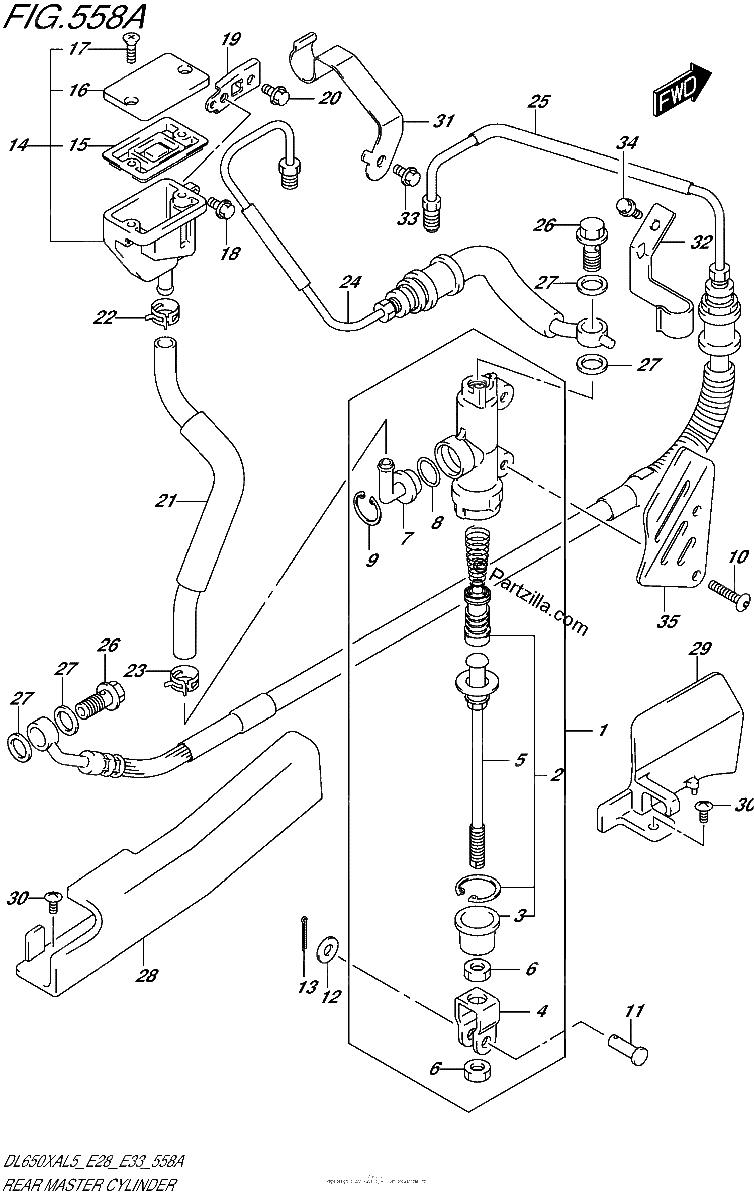

Diagrama de REAR MASTER CYLINDER

Repuestos

#1
69600-06G00
CYLINDER ASSY, REAR MASTER
$403.25¢201 625
1
#2
69600-34820
.PISTON/CUP SET
$31.70¢15 850
1
#3
69691-00A00
..BOOT
$6.51¢3 256
1
#4
69692-19A00
.YOKE
$22.77¢11 388
1
#5
69670-03G00
.ROD, PUSH
$59.50¢29 750
1
#6
69693-05A00
.NUT
$2.31¢1 156
1
#7
69672-00B20
.CONNECTOR
$8.36¢4 181
1
#8
69686-34200
.O RING
$3.65¢1 825
1
#9
69674-00B20
.CIRCLIP
$4.86¢2 431
1
#10
09139-06029
SCREW (6X25)
$6.30¢3 150
1
#11
09200-06068
PIN (6X18.2)
$4.84¢2 419
1
#12
08322-0106B
.WASHER
$2.92¢1 463
1
#13
04111-2015A
COTTER PIN
$1.59¢794
1
#14
69740-01D02
TANK ASSY, RESERVOIR
$84.05¢42 025
1
#15
59667-04700
.DIAPHRAGM
$11.66¢5 831
1
#16
59669-05D00
.CAP
$20.55¢10 275
1
#17
69689-04A00
.SCREW
$2.40¢1 200
1
#18
01547-0612A
BOLT
$2.63¢1 313
1
#19
69750-27G20
BRACKET, RR RESERVOIR TANK
No Disponible
1
#20
01547-0612A
BOLT
$2.63¢1 313
1
#21
69730-27G00
HOSE, RESERVOIR TANK
$42.02¢21 013
1
#22
09401-13417
CLIP
$2.92¢1 463
1
#23
09401-12404
CLIP
$3.09¢1 544
1
#24
69200-11J10
HOSE ASSY, RR BRAKE NO.1
No Disponible
1
#25
69400-11J00
HOSE ASSY, RR BRAKE NO.2
$186.09¢93 044
1
#26
09360-10062
UNION
$7.57¢3 787
1
#27
09161-10009
WASHER (10X15X1.5)
$2.39¢1 194
1
#28
61196-27G10
GUIDE, BRAKE HOSE
No Disponible
1
#29
61196-06G00
GUIDE, REAR BRAKE HOSE FRONT
$26.19¢13 094
1
#30
02142-0510B
SCREW
$2.30¢1 150
1
#31
69260-11J00
CLAMP, REAR BRAKE HOSE
No Disponible
1
#32
69266-27G00
CLAMP, RR BRAKE HOSE NO.2
No Disponible
1
#33
01547-0610B
BOLT
$3.21¢1 606
1
#34
01547-0612A
BOLT
$2.63¢1 313
1
#35
69641-06G00
COVER, REAR MASTER CYLINDER
No Disponible
1
