FUEL TANK VZ1500L5 E28

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

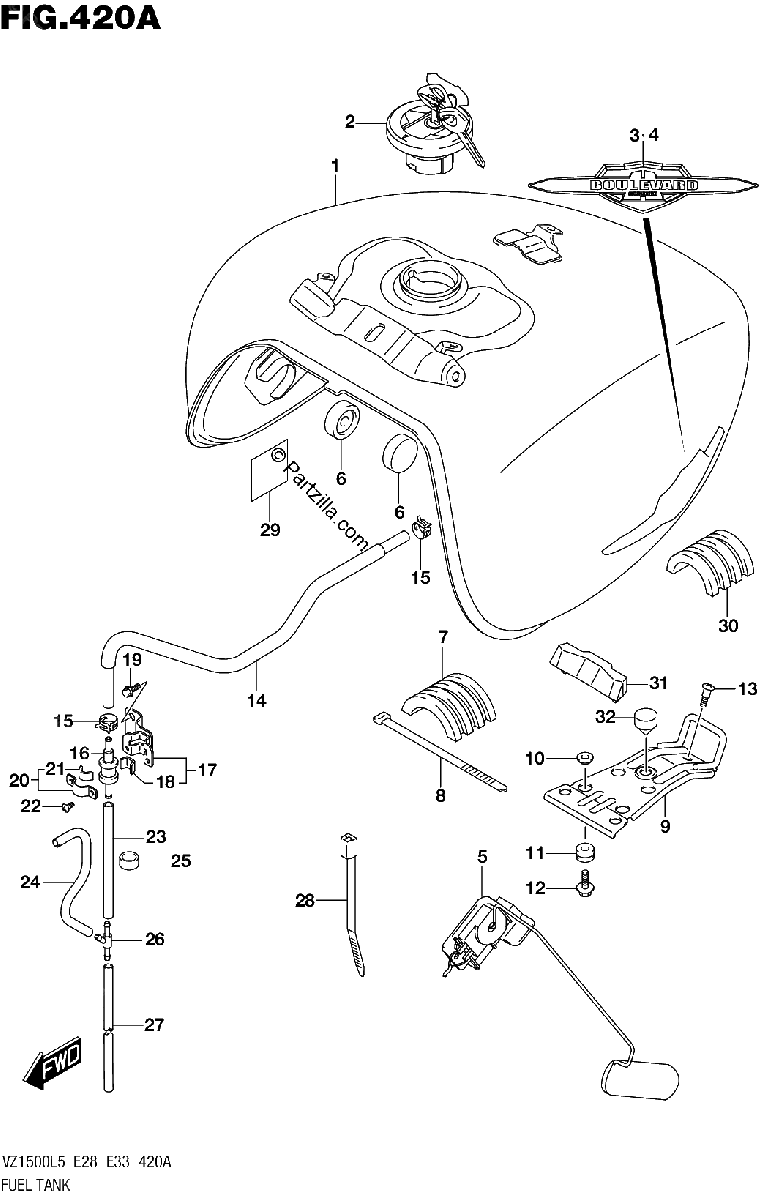

Diagrama de FUEL TANK VZ1500L5 E28

Repuestos

#2
44200-39840
CAP SET, FUEL TANK
$221.87¢110 935
1
#3
68111-40H00
EMBLEM, RH
$88.66¢44 332
1
#4
68121-40H00
EMBLEM, LH
$90.33¢45 166
1
#5
34810-40H00
GUAGE ASSY, FUEL TANK
$121.35¢60 674
1
#6
09329-10007
CUSHION | FRONT
$2.29¢1 144
1
#7
44541-04F00
CUSHION, TANK SIDE
No Disponible
1
#8
09407-30402
CLAMP (L:300)
$4.51¢2 254
1
#9
44530-06J00
BRACKET, REAR
$46.86¢23 431
1
#10
09169-06062
WASHER
$2.99¢1 495
1
#1-1
44100-40H62-YVB
TANK ASSY, FUEL (BLACK)
$2262.51¢1 131 255
1
#11
09320-08001
CUSHION
$2.48¢1 242
1
#1-2
44100-40H62-YWW
TANK ASSY, FUEL (WHITE)
$1709.01¢854 507
1
#12
09116-06192
BOLT (6X20)
$2.83¢1 414
1
#13
01550-0812A
BOLT | FRONT
$2.77¢1 386
1
#14
44434-40H00
HOSE, TANK VALVE
No Disponible
1
#15
09401-11413
CLIP
$2.69¢1 346
1
#16
44240-38A00
VALVE, ROLL OVER
$75.96¢37 979
1
#17
44880-40H00
BRACKET, BREATHER VALVE
No Disponible
1
#18
44894-24A00
.CUSHION
$2.13¢1 064
1
#19
01547-0610A
BOLT
$1.63¢816
1
#20
44892-24A00
PLATE FUEL TANK BREATHER, NO.
$5.61¢2 806
1
#21
44894-24A00
.CUSHION
$2.13¢1 064
1
#22
02142-0408A
SCREW
$1.87¢937
1
#23
09352-50903-600
HOSE (5X9X600) | L:600-100
$8.10¢4 048
1
#24
44424-15H10
HOSE, BREATHER NO.3
$17.04¢8 522
1
#25
09352-13162-010
HOSE (13.5X16.5X10)
No Disponible
1
#26
09367-06007
3 WAY
$3.81¢1 903
1
#27
09352-50823-600
HOSE (5X8.2X600)
$10.88¢5 440
1
#28
09407-19401
CLAMP (L:190)
$3.68¢1 840
1
#29
44283-40H00
PROTECTOR
No Disponible
1
#30
44541-06J00
CUSHION, TANK SIDE REAR
No Disponible
1
#31
44545-06J00
CUSHION
No Disponible
1
#32
09321-10011
.CUSHION
$3.36¢1 679
1
