FRAME COVER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

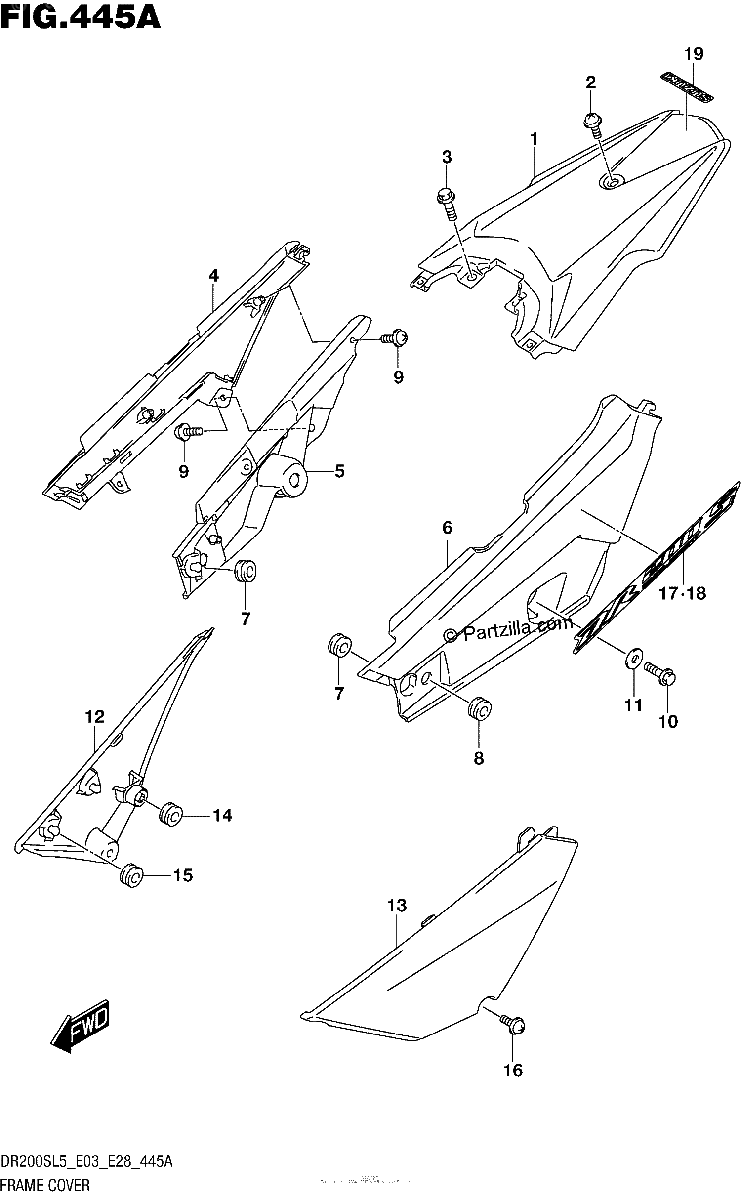

Diagrama de FRAME COVER

Repuestos

#1
47311-49J00-YU1
COVER, FRAME CENTER (YELLOW) | FOR YU1
$137.28¢68 638
1
#1
47311-49J00-019
COVER, FRAME CENTER (BLACK) *{FOR 019}*
No Disponible
1
#2
09139-06188
SCREW (6X12)
$4.48¢2 242
1
#3
01550-0612A
BOLT
$2.36¢1 179
1
#4
47121-49J00-019
COVER, FRAME UPPER RH (BLACK) *{FOR 019}*
$120.72¢60 358
1
#4
47121-49J00-YU1
COVER, FRAME UPPER RH (YELLOW | FOR YU1
$120.72¢60 358
1
#5
47131-49J00
COVER, FRAME INNER RH
$45.86¢22 931
1
#6
47221-49J00-019
COVER, FRAME UPPER LH (BLACK) *{FOR 019}*
$120.72¢60 358
1
#6
47221-49J00-YU1
COVER, FRAME UPPER LH (YELLOW | FOR YU1
$120.72¢60 358
1
#7
09320-08018
CUSHION | LH
$3.36¢1 679
1
#8
09320-08028
CUSHION
$3.36¢1 679
1
#9
03541-0516A
SCREW
$1.64¢822
1
#10
09135-08007
BOLT
$3.53¢1 765
1
#11
09169-08045
WASHER
$2.56¢1 282
1
#12
47111-49J00-30H
COVER, FRAME RH (WHITE) | FOR YU1
$106.95¢53 475
1
#13
47211-49J00-30H
COVER, FRAME LH (WHITE) | FOR YU1
$106.95¢53 475
1
#14
47161-08G00
CUSHION, RH
$11.98¢5 991
1
#15
09320-08029
CUSHION
$2.90¢1 449
1
#16
09139-06169
SCREW (6X16)
$3.36¢1 679
1
#17
68135-49J00-GYY
EMBLEM, FRAME COVER RH
$21.16¢10 580
1
#18
68145-49J00-GYY
EMBLEM, FRAME COVER LH
$21.16¢10 580
1
#19
68171-28H00-YHG
EMBLEM in.SUZUKIin. (GRAY) | FOR YU1
$7.34¢3 669
1
