REAR MASTER CYLINDER GSX S750ZL5 E03

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

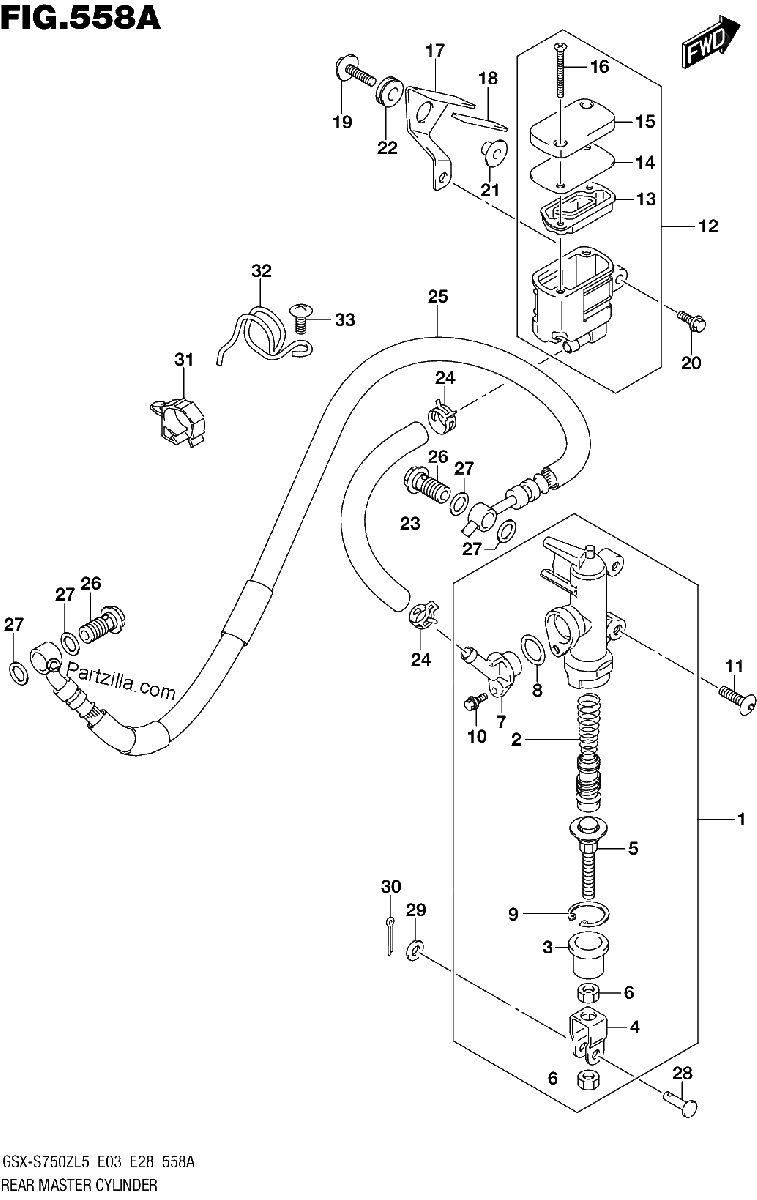

Diagrama de REAR MASTER CYLINDER GSX S750ZL5 E03

Repuestos

#1
69600-08J00
CYLINDER ASSY, REAR MASTER
$368.03¢184 013
1
#2
69600-34810
.PISTON/CAP SET
$76.28¢38 138
1
#3
69691-00A00
..BOOT
$6.51¢3 256
1
#4
69692-44H00
.YOKE
$22.77¢11 388
1
#5
69670-27A30
.ROD, PUSH
$35.41¢17 706
1
#6
69693-05A00
.NUT
$2.31¢1 156
1
#7
69672-08J10
.CONNECTOR
$11.04¢5 519
1
#8
69686-34200
.O RING
$3.65¢1 825
1
#9
69665-47H00
.CIRCLIP
$6.78¢3 388
1
#10
02112-7412A
.SCREW
$2.78¢1 388
1
#11
09139-06028
SCREW (6X20)
$4.34¢2 169
1
#12
69740-01H10
TANK ASSY, REAR RESERVOIR
$33.50¢16 750
1
#13
69667-01H00
.DIAPHRAGM
$8.50¢4 250
1
#14
69668-01H00
.PLATE, DIAPHRAGM
$8.09¢4 044
1
#15
69669-01H00
.CAP
No Disponible
1
#16
69689-01H00
.SCREW
$6.00¢3 000
1
#17
69750-08J00
BRACKET, REAR RESERVOIR TANK
No Disponible
1
#18
69752-08J00
CUSHION, BRACKET NO.2
No Disponible
1
#19
09116-06202
BOLT (6X25)
$4.16¢2 081
1
#20
01547-0612A
BOLT
$2.63¢1 313
1
#21
09180-06325
SPACER (6.2X8.4X6.9)
$4.51¢2 256
1
#22
09320-08066
CUSHION
$9.69¢4 844
1
#23
69731-08J00
HOSE, REAR RESERVOIR TANK
$25.40¢12 700
1
#24
09401-12404
CLIP
$3.09¢1 544
1
#25
69480-08J00
HOSE, REAR BRAKE
$109.96¢54 981
1
#26
09360-10062
UNION
$7.57¢3 787
1
#27
09161-10009
WASHER (10X15X1.5)
$2.39¢1 194
1
#28
09200-06068
PIN (6X18.2)
$4.84¢2 419
1
#29
08322-0106A
WASHER
$2.39¢1 194
1
#30
04111-2015A
COTTER PIN
$1.59¢794
1
#31
09403-17306
CLAMP
$3.44¢1 719
1
#32
61196-08J00
GUIDE, REAR BRAKE HOSE
No Disponible
1
#33
02142-0616A
SCREW
$1.79¢894
1
