CRANKCASE COVER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

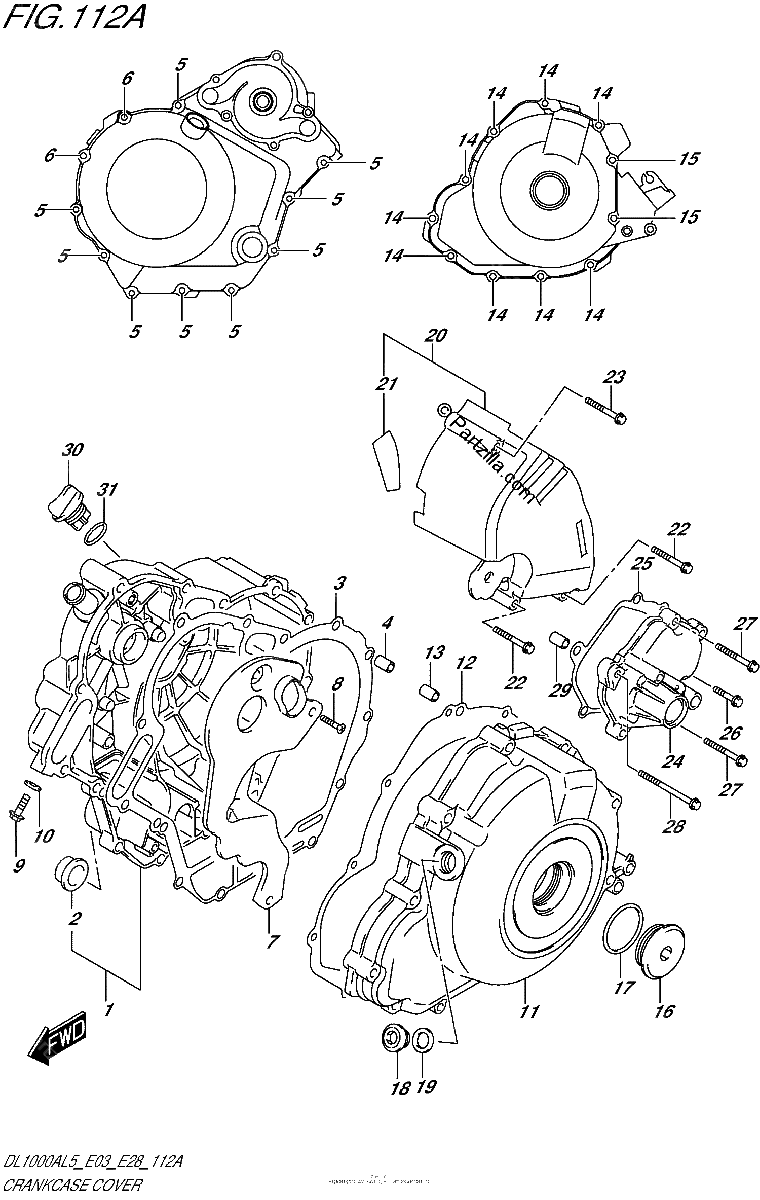

Diagrama de CRANKCASE COVER

Repuestos

#1
11340-06G40
COVER, CLUTCH
$465.75¢232 875
1
#2
11971-33210
.LENS, OIL LEVEL CHECK
$21.70¢10 850
1
#3
11482-06G10
GASKET, CLUTCH COVER
$23.05¢11 525
1
#4
04211-09149
PIN
$2.14¢1 069
1
#5
09103-06213
BOLT (6X30)
$3.19¢1 594
1
#6
09103-06257
BOLT (6X75)
$3.75¢1 875
1
#7
11342-06G00
SEPARATOR, OIL
$77.41¢38 706
1
#8
02112-0612A
SCREW
$1.86¢931
1
#9
01550-0610A
.BOLT
$2.56¢1 281
1
#10
09168-06026
GASKET (6.4X11.5X0.8)
$3.65¢1 825
1
#11
11351-31J10
COVER, MAGNETO
$393.47¢196 737
1
#12
11483-02F10
GASKET, MAGNETO COVER
$20.91¢10 456
1
#13
04211-09149
PIN
$2.14¢1 069
1
#14
09103-06214
BOLT (6X35)
$3.24¢1 619
1
#15
09103-06263
BOLT (6X80)
$5.13¢2 563
1
#16
09259-36027
PLUG
$22.84¢11 419
1
#17
09280-33004
O RING (D:3.1,ID:32.7)
$2.92¢1 463
1
#18
09248-14012
PLUG (14X12)
$3.65¢1 825
1
#19
09168-14004
GASKET
$2.14¢1 069
1
#20
11360-31J00
COVER, ENGINE SPROCKET
$65.10¢32 550
1
#21
11362-31J00
.SHEET, SPROCKET COVER
$12.04¢6 019
1
#22
09103-06214
BOLT (6X35)
$3.24¢1 619
1
#23
09103-06261
BOLT (6X60)
$3.77¢1 888
1
#24
11381-06G00
COVER, GEAR SHIFT
$134.50¢67 250
1
#25
11485-02F10
GASKET
$6.13¢3 063
1
#26
09103-06314
BOLT (6X105)
No Disponible
1
#27
01547-0625A
BOLT
$2.63¢1 313
1
#28
01547-0635A
BOLT
$3.01¢1 506
1
#29
04211-09149
PIN
$2.14¢1 069
1
#30
11971-25D00
PLUG, ENGINE OIL FILLER
$6.09¢3 044
1
#31
09280-17003
O RING (D:3.1,ID:16.8)
$2.14¢1 069
1
