CRANKCASE COVER VL800TL5 E28

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

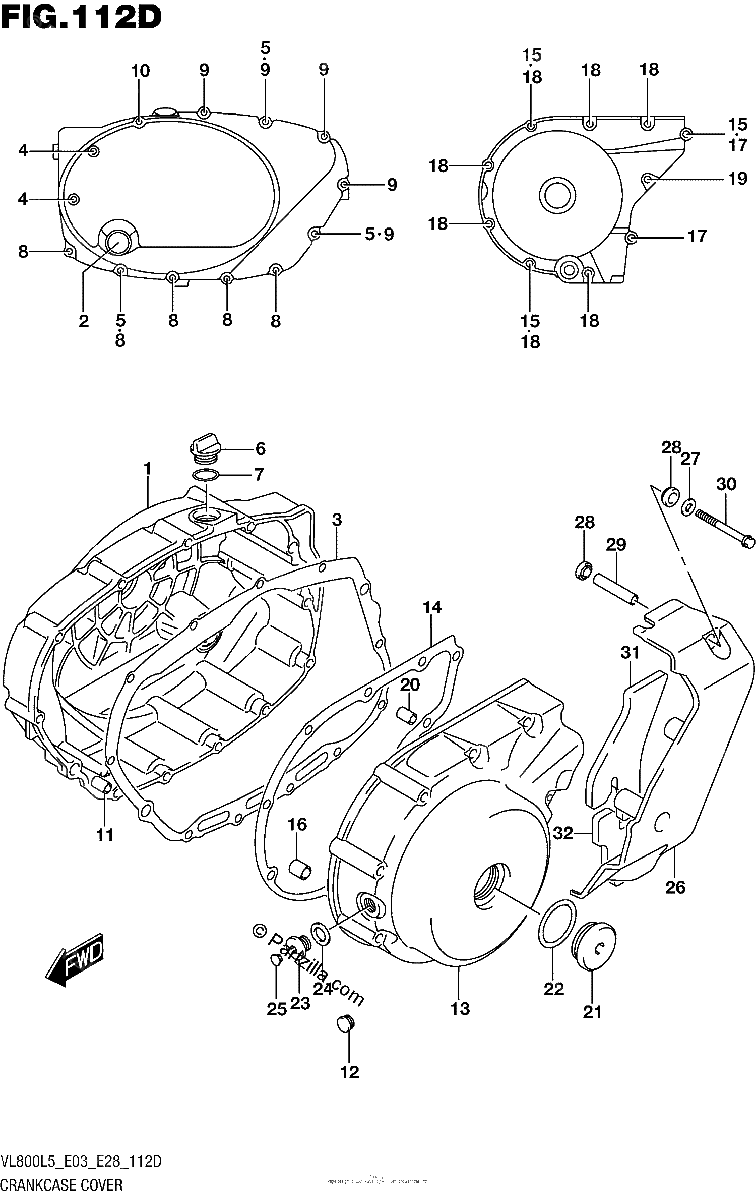

Diagrama de CRANKCASE COVER VL800TL5 E28

Repuestos

#1
11340-41F00
COVER, CLUTCH
No Disponible
1
#2
11971-33210
.LENS, OIL LEVEL CHECK
$19.96¢9 982
1
#3
11482-41F00
.GASKET, CLUTCH COVER | NOT ILLUSTRATED
$18.79¢9 395
1
#4
09103-06270
BOLT (6X105)
$5.21¢2 605
1
#5
09168-06023
GASKET (5.8X13X1.2)
$2.42¢1 208
1
#6
11971-25D00
PLUG, ENGINE OIL FILLER
$5.60¢2 800
1
#7
09280-17003
O RING (D:3.1,ID:16.8)
$1.97¢983
1
#8
09103-06213
BOLT (6X30)
$2.93¢1 466
1
#9
09103-06238
BOLT (6X50)
$3.17¢1 587
1
#10
09103-06226
BOLT (6X85)
$4.63¢2 317
1
#11
04211-09189
PIN
$1.97¢983
1
#12
09250-08013
CAP (OD:12)
$3.24¢1 621
1
#13
11351-41F10
COVER, GENERATOR
$488.35¢244 174
1
#14
11483-41F00
.GASKET, GENERATOR COVER | NOT ILLUSTRATED
$15.58¢7 791
1
#15
09168-06023
GASKET (5.8X13X1.2)
$2.42¢1 208
1
#16
09206-11007
.PIN (8.4X11X20)
$2.93¢1 466
1
#17
09103-06215
BOLT (6X40)
$3.35¢1 673
1
#18
09103-06216
BOLT (6X55)
$3.31¢1 656
1
#19
09103-06226
BOLT (6X85)
$4.63¢2 317
1
#20
04211-09189
PIN
$1.97¢983
1
#21
09259-36008
PLUG (36X10)
$8.83¢4 416
1
#22
09280-33004
O RING (D:3.1,ID:32.7)
$2.69¢1 346
1
#23
09248-14012
PLUG (14X12)
$3.36¢1 679
1
#24
09168-14004
GASKET
$1.97¢983
1
#25
09250-08012
CAP (OD:12)
$2.61¢1 305
1
#26
11361-41F00
COVER, SECONDARY DRIVE
$277.86¢138 932
1
#27
09160-06125
WASHER (6.5X14X1.6)
$2.27¢1 133
1
#28
09161-09005
WASHER (8.7X16X5)
$2.79¢1 397
1
#29
09180-06280
SPACER (6.5X9X41.3)
$6.13¢3 065
1
#30
09103-06216
BOLT (6X55)
$3.31¢1 656
1
#31
11362-39G00
CUSHION, SEC DRIVE COVER NO.1
$18.63¢9 315
1
#32
11363-39G00
CUSHION, SEC DRIVE COVER NO.2
$13.13¢6 567
1
