TRANSMISSION

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

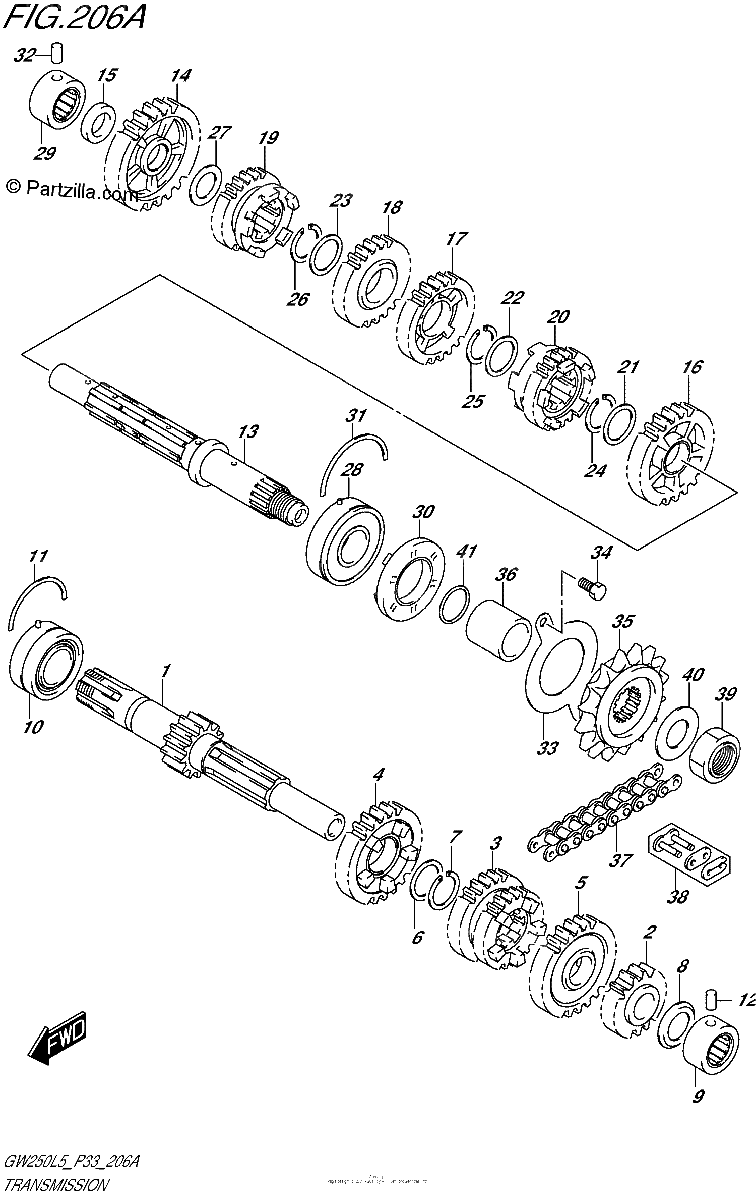

Diagrama de TRANSMISSION

Repuestos

#1
24120-48H00
SHAFT, COUNTER (NT:12)
No Disponible
1
#2
24221-48H00
GEAR, 2ND DRIVE (NT:17)
$16.13¢8 063
1
#3
24231-48H00
GEAR, 3RD & 4TH DRIVE (NT:10/11)
$40.46¢20 231
1
#4
24251-48H00
GEAR, 5TH DRIVE (NT:22)
$29.85¢14 925
1
#5
24260-48H00
GEAR, 6TH DRIVE (NT:26)
$29.06¢14 531
1
#6
09181-22017
SHIM (22X28X1)
$3.13¢1 563
1
#7
09380-22016
CIRCLIP
No Disponible
1
#8
24271-48H00
SEAL, SHAFT LH BEARING
$15.00¢7 500
1
#9
09263-17050
BEARING (17X30X16)
No Disponible
1
#10
09267-22001
BEARING (22X47X20.6)
No Disponible
1
#11
09390-47008
C RING
$2.84¢1 419
1
#12
04221-06129
PIN
$2.25¢1 125
1
#13
24130-48H00
SHAFT, DRIVE
$47.21¢23 606
1
#14
24310-48H00
GEAR, 1ST DRIVEN (NT:29)
$35.50¢17 750
1
#15
24313-48H00
SPACER, 1ST DRIVEN GEAR
$3.65¢1 825
1
#16
24320-48H00
GEAR, 2ND DRIVEN (NT:26)
$34.10¢17 050
1
#17
24331-48H00
GEAR, 3RD DRIVEN (NT:26)
No Disponible
1
#18
24341-48H00
GEAR, 4TH DRIVEN (NT:24)
No Disponible
1
#19
24351-48H00
GEAR, 5TH DRIVEN (NT:20)
$40.79¢20 394
1
#20
24361-48H00
GEAR, 6TH DRIVEN (NT:21)
$29.63¢14 813
1
#21
09181-22017
SHIM (22X28X1)
$3.13¢1 563
1
#22
09181-22017
SHIM (22X28X1)
$3.13¢1 563
1
#23
09181-22017
SHIM (22X28X1)
$3.13¢1 563
1
#24
09380-22016
CIRCLIP
No Disponible
1
#25
09380-22016
CIRCLIP
No Disponible
1
#26
09380-22016
CIRCLIP
No Disponible
1
#27
08211-17262
WASHER
$3.65¢1 825
1
#28
09262-22039
BEARING (22X56X16)
No Disponible
1
#29
09263-17050
BEARING (17X30X16)
No Disponible
1
#30
09283-30L01
OIL SEAL (30X56X9.5)
$11.13¢5 563
1
#31
09390-56002
C RING
$3.02¢1 513
1
#32
04221-06129
PIN
$2.25¢1 125
1
#33
24741-48H00
RETAINER, DRIVE SHAFT OIL SEA
$5.35¢2 675
1
#34
01500-0612A
BOLT
$2.34¢1 169
1
#35
27510-48H10
SPROCKET, ENGINE (NT:14)
$27.84¢13 919
1
#36
27531-48H00
SPACER, ENGINE SPROCKET
$11.21¢5 606
1
#37
27600-48H20-116
CHAIN ASSY, DRIVE (RK 520KRO)
$284.31¢142 156
1
#38
27620-48H20
JOINT SET, CHAIN
$44.06¢22 031
1
#39
27521-48H00
NUT
$8.59¢4 294
1
#40
27513-48H00
WASHER, ENGINE SPROCKET
$3.00¢1 500
1
#41
09280-21008
.O RING (D:2.5, ID:21) | NOT ILLUSTRATED
$2.46¢1 231
1
