MUFFLER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

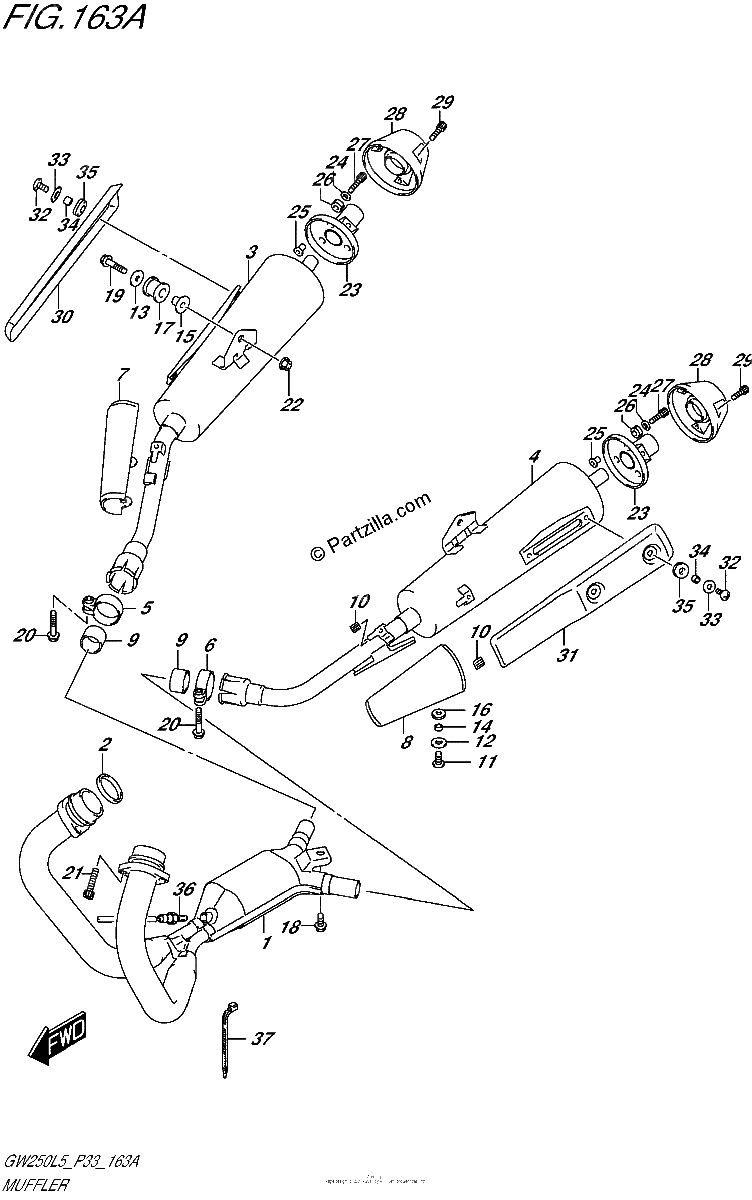

Diagrama de MUFFLER

Repuestos

#1
14100-48H01
EXHAUST
No Disponible
1
#2
14181-46E20
.GASKET, EXHAUST PIPE
$8.19¢4 094
1
#3
14305-48H02
MUFFLER, RH
$603.69¢301 846
1
#4
14306-48H03
MUFFLER, LH
$603.69¢301 846
1
#5
14459-48H00
CLAMP, MUFFLER CONNECTOR RH
No Disponible
1
#6
14469-48H00
CLAMP, MUFFLER CONNECTOR LH
$5.60¢2 800
1
#7
14750-48H00
COVER, MUFFLER FRONT RH
No Disponible
1
#8
14760-48H00
COVER, MUFFLER FRONT LH
No Disponible
1
#9
14771-38F10
CONNECTOR, JOINT
$22.57¢11 287
1
#10
14795-10FA0
.GROMMET
$6.30¢3 151
1
#11
09139-06030
SCREW (6X16)
$3.99¢1 995
1
#12
09160-06164
WASHER (6.5X18.0X1.0)
$1.00¢500
1
#13
09160-08149
WASHER (8.5X30X1.6)
$3.59¢1 794
1
#14
09180-06365
SPACER (6.5X9X5)
$1.00¢500
1
#15
09180-08L02
SPACER
$3.07¢1 535
1
#16
09320-08082
CUSHION
$9.92¢4 962
1
#17
09320-12L04
CUSHION
$1.49¢747
1
#18
01550-0816A
BOLT
$2.77¢1 386
1
#19
01550-0840A
.BOLT
$3.36¢1 679
1
#20
01550-0840A
.BOLT
$3.36¢1 679
1
#21
07130-0830A
BOLT
$2.00¢1 001
1
#22
08316-1008A
NUT
$2.96¢1 478
1
#23
14770-48H01
STAY, MUFFLER RR COVER
$23.90¢11 949
1
#24
09160-06028
WASHER (6.5X18X1)
$1.71¢857
1
#25
09180-06331
.SPACER (6.2X8.4X10.9)
$5.75¢2 875
1
#26
09320-08068
CUSHION
No Disponible
1
#27
07130-0620A
BOLT
$2.99¢1 495
1
#28
14790-48H01-YYK
COVER, MUFFLER REAR (GRAY)
No Disponible
1
#29
07130-0616A
BOLT
$2.85¢1 426
1
#30
14781-48H00
COVER, MUFFLER BODY RH
$93.26¢46 632
1
#31
14730-48H00
COVER, MUFFLER BODY LH
$93.26¢46 632
1
#32
09139-06030
SCREW (6X16)
$3.99¢1 995
1
#33
09160-06164
WASHER (6.5X18.0X1.0)
$1.00¢500
1
#34
09180-06365
SPACER (6.5X9X5)
$1.00¢500
1
#35
09320-08082
CUSHION
$9.92¢4 962
1
#36
18213-23H20
SENSOR, OXY RR
$369.92¢184 960
1
#37
36990-32G20
CLAMP, WIRING HARNESS
$3.05¢1 524
1
