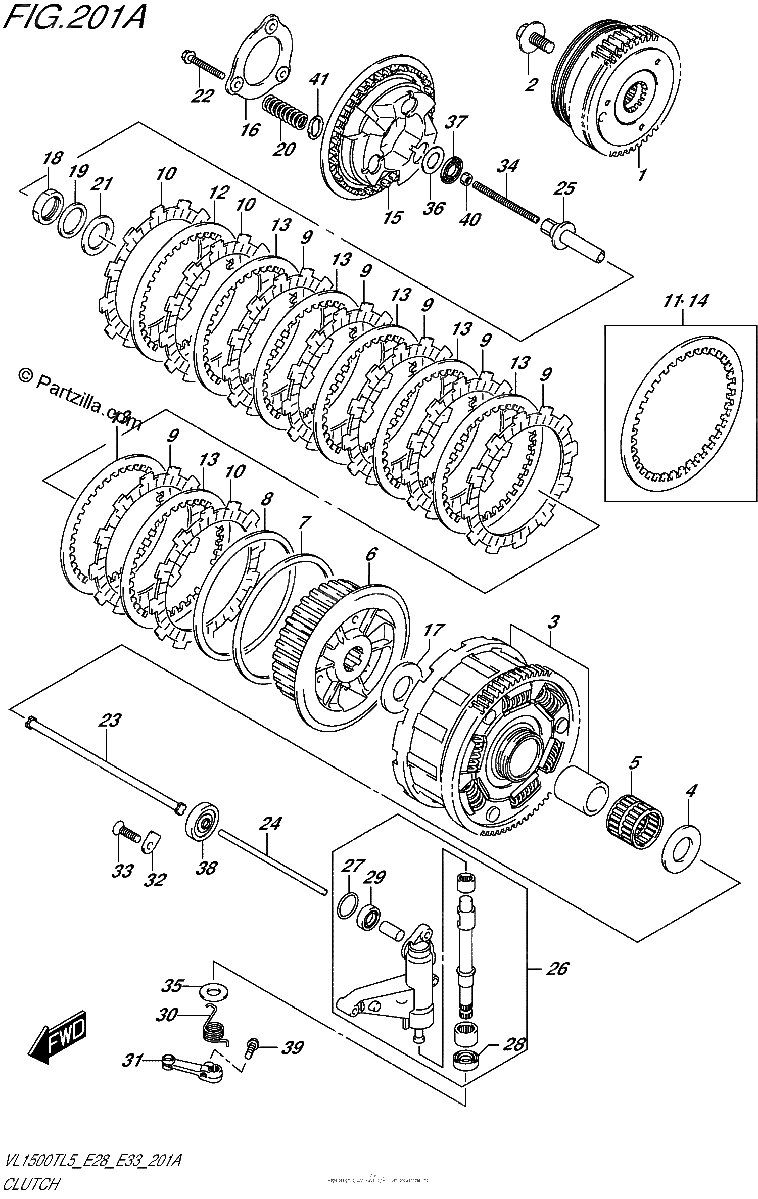

CLUTCH
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
GEAR, PRIMARY DRIVE (NT:54)
No Disponible
#2
BOLT (14X28)
$22.97¢11 487
#3
GEAR ASSY,PRIMA
$738.27¢369 138
#4
WASHER (25X52X2.5)
$9.32¢4 663
#5
BEARING (35X40X39.8)
$41.79¢20 894
#6
HUB, CLUTCH SLEEVE
$217.15¢108 575
#7
SEAT, WAVE WASHER
$17.00¢8 500
#8
WASHER, CLUTCH PLATE WAVE
$19.01¢9 506
#9
PLATE, CLUTCH DRIVE NO.1
$29.61¢14 806
#10
PLATE, CLUTCH DRIVE NO.2
$29.61¢14 806
#11
PLATE, CLUTCH DRIVEN (T:1.6)
$20.66¢10 331
#12
PLATE, CLUTCH DRIVEN (T:2.0)
$19.91¢9 956
#13
PLATE, CLUTCH DRIVEN (T:2.0)
$13.83¢6 913
#14
PLATE, CLUTCH DRIVEN NO.2 (T:2.3)
$13.83¢6 913
#15
DISC, CLUTCH PRESSURE
$156.69¢78 344
#16
WASHER
$26.23¢13 113
#17
WASHER (25X50X2.5)
$13.85¢6 925
#18
NUT
$15.53¢7 763
#19
WASHER
$6.04¢3 019
#20
SPRING, CLUTCH
$12.15¢6 075
#21
SHIM (25X38X1)
$3.77¢1 888
#22
BOLT, SPRING SUPPORT
$5.54¢2 769
#23
ROD, CLUTCH
$27.26¢13 631
#24
ROD, CLUTCH PUSH LH
No Disponible
#25
PIECE, CLUTCH PUSH
$66.16¢33 081
#26
CAMSHAFT SET, CLUTCH RELEASE
No Disponible
#27
.O RING (D:2.5, ID:21) | NOT ILLUSTRATED
$2.46¢1 231
#28
OIL SEAL (10X20X6)
$9.38¢4 688
#29
OIL SEAL (10X17X5)
$3.96¢1 981
#30
SPRING, CLUTCH RELEASE RETURN
$5.34¢2 669
#31
ARM, CLUTCH RELEASE
$123.00¢61 500
#32
RETAINER, BEARING
$3.65¢1 825
#33
SCREW (6X12)
$2.63¢1 313
#34
SCREW (6X73)
$8.09¢4 044
#35
WASHER (10.5X24X1)
$2.42¢1 213
#36
WASHER (15.5X28X1)
$4.58¢2 288
#37
BEARING (15X28X2)
$9.75¢4 875
#38
OIL SEAL (6X18X5)
$14.81¢7 406
#39
BOLT
$2.63¢1 313
#40
NUT
$2.39¢1 194
#41
SEAT, CLUTCH SPRING
$20.85¢10 425
