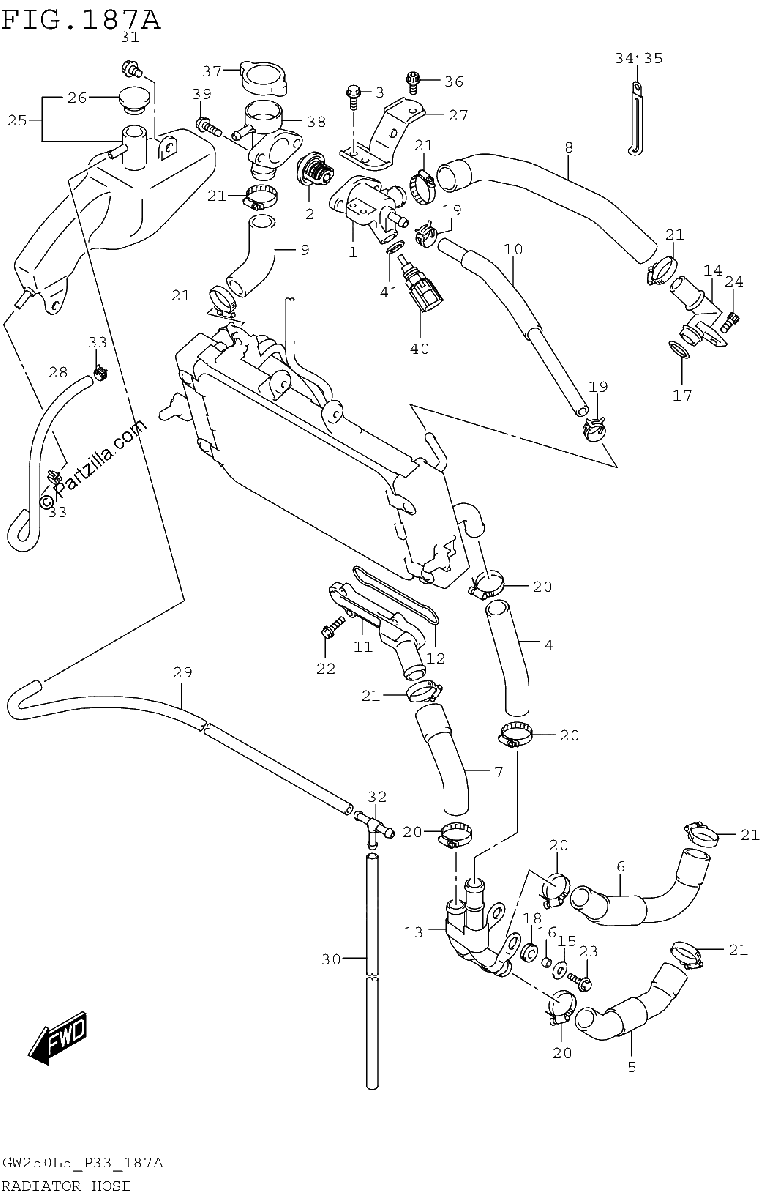

RADIATOR HOSE
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
CONNECTOR, THERMOSTAT INLET
No Disponible
#2
THERMOSTAT, WATER
$24.44¢12 219
#3
BOLT
$2.56¢1 281
#4
HOSE, RADIATOR OUTLET
$10.71¢5 356
#5
HOSE, WATER PUMP INLET
$15.00¢7 500
#6
HOSE, WATER PUMP OUTLET
$17.79¢8 894
#7
HOSE, CYLINDER CONNECTOR
$10.60¢5 300
#8
HOSE, THERMOSTAT CONNECTOR
$18.90¢9 450
#9
HOSE, RADIATOR INLET
$11.94¢5 969
#10
HOSE, WATER BYPASS
No Disponible
#11
CONNECTOR, CYL WATER INLET
No Disponible
#12
O RING, CYL INLET CONNECTOR
No Disponible
#13
PIPE, WATER PUMP
$47.53¢23 763
#14
PIPE, CYLINDER HEAD OUTLET
No Disponible
#15
WASHER (6.5X18X1)
$1.86¢931
#16
SPACER (6.5X9X5)
$1.09¢544
#17
O RING (D:3.2,ID:17.8)
$2.50¢1 250
#18
CUSHION
$1.09¢544
#19
CLIP
$3.56¢1 781
#20
CLAMP
$11.54¢5 769
#21
CLAMP
$11.85¢5 925
#22
BOLT
$2.63¢1 313
#23
BOLT
$2.56¢1 281
#24
BOLT
$3.25¢1 625
#25
TANK ASSY, RESERVOIR
$41.90¢20 950
#26
CAP, RESERVOIR TANK
$5.34¢2 669
#27
BRACKET, RESERVOIR TANK
No Disponible
#28
HOSE, OVER FLOW | CUT AS REQUIRED
$19.84¢9 919
#29
HOSE, RESERVOIR TANK OVER FLO
$11.73¢5 863
#30
HOSE, FUEL TANK WATER DRAIN
No Disponible
#31
BOLT (6X12)
$5.42¢2 713
#32
3 WAY, FUEL TANK WATER DRAIN
No Disponible
#33
CLIP
$2.71¢1 356
#34
CLAMP (L:45)
$2.25¢1 125
#35
CLAMP (L:80)
No Disponible
#36
BOLT
$3.25¢1 625
#37
CAP, RADIATOR (1.1)
$22.79¢11 394
#38
CONDUCTION, RADIATOR
$39.10¢19 550
#39
BOLT
$2.56¢1 281
#40
SENSOR, WATER TEMPERATURE
$107.54¢53 769
#41
GASKET, TEMP SENSOR
$5.04¢2 519
