REAR FENDER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

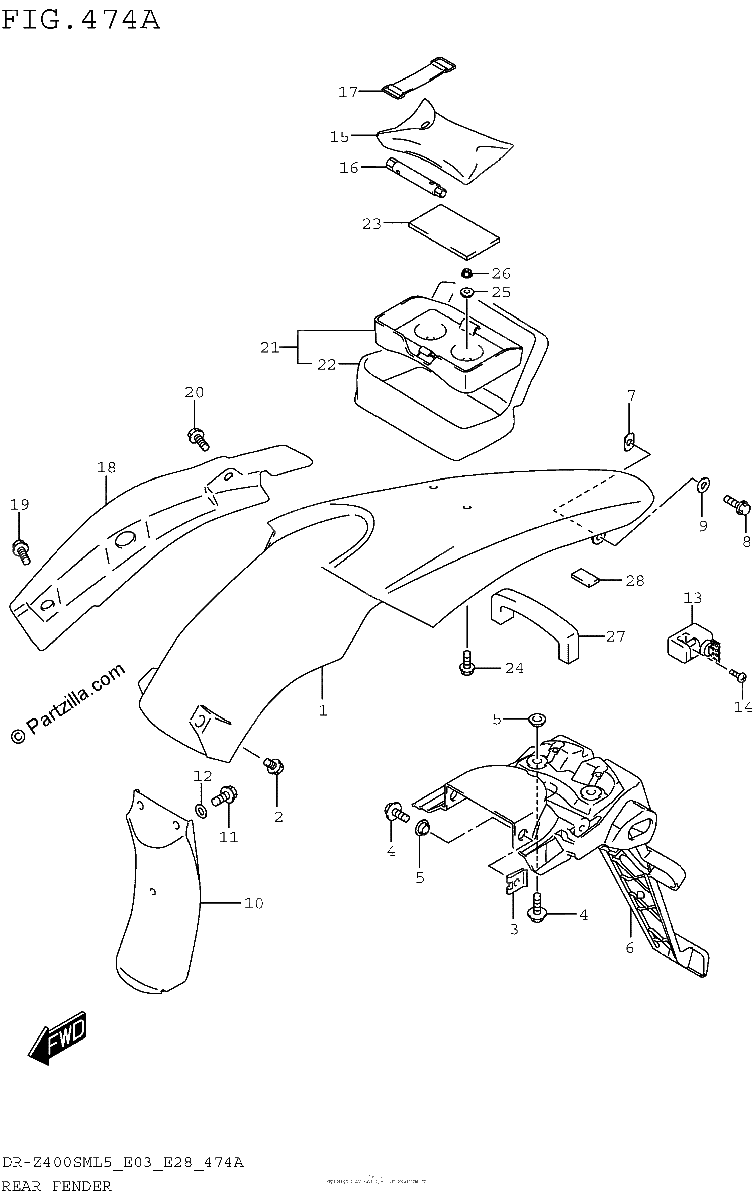

Diagrama de REAR FENDER

Repuestos

#1
63113-29FA0-30H
FENDER, REAR (WHITE)
$185.34¢92 669
1
#2
09113-06001
BOLT (6X16)
$3.57¢1 787
1
#3
63312-13E01
PLATE, REAR FENDER FITTING
$6.75¢3 375
1
#4
09116-06115
BOLT (6X20)
$2.56¢1 281
1
#5
09169-06073
WASHER
$4.01¢2 006
1
#6
63311-29FA1
EXTENSION, REAR FENDER
$125.16¢62 581
1
#7
94484-24F00
NUT, COWL
$4.72¢2 363
1
#8
01550-0512B
BOLT
$3.77¢1 888
1
#9
09169-05024
WASHER
$2.70¢1 350
1
#10
63411-29F00
MUDGUARD, REAR FENDER FRONT
$32.79¢16 394
1
#11
01547-0616B
BOLT
$3.16¢1 581
1
#12
09169-06055
WASHER
$2.64¢1 319
1
#13
95700-41821
LOCK SET, HELMET
$206.25¢103 125
1
#14
09139-06089
SCREW (6X14)
$3.98¢1 988
1
#15
09800-21042
TOOL ASSY
$118.13¢59 063
1
#16
09816-00186
SPANNER, BOX (8X10)
$22.46¢11 231
1
#17
09462-00008
BAND
$5.67¢2 838
1
#18
63114-29F00
MUDGUARD, REAR FENDER RH
$49.52¢24 763
1
#19
09111-06081
BOLT (6X18)
$5.01¢2 506
1
#20
09111-06107
BOLT (6X12)
$3.36¢1 681
1
#21
94900-29FB1
BAG ASSY, SEAT TAIL
$226.16¢113 081
1
#22
94910-29FB0
.BAG, SEAT TAIL
$140.66¢70 331
1
#23
94915-44E00
CUSHION, REAR BAG
$17.06¢8 531
1
#24
01550-0620B
BOLT (6X20)
$3.10¢1 550
1
#25
09169-06063
WASHER
$4.01¢2 006
1
#26
09159-06078
NUT
$3.44¢1 719
1
#27
47161-29B00
CUSHION, REAR FENDER
$10.13¢5 063
1
#28
33651-37000
PROTECTOR | CUT AS REQUIRED
$5.34¢2 669
1
