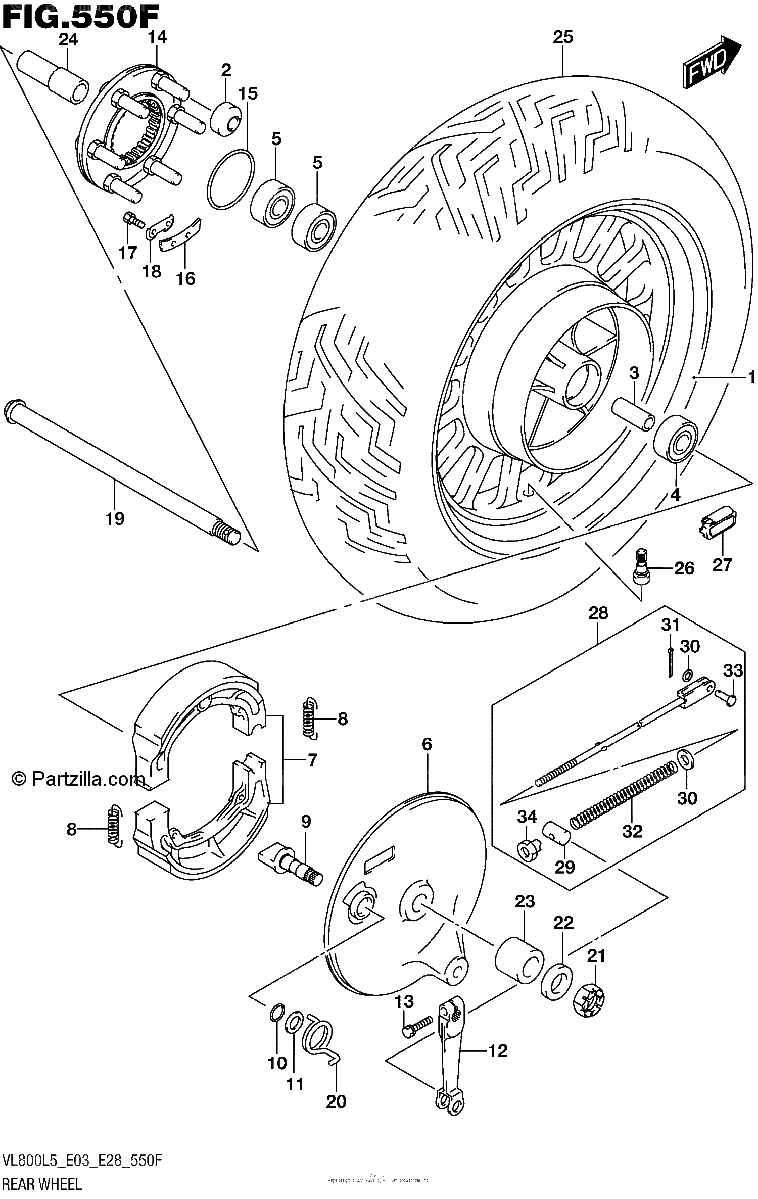

REAR WHEEL VL800BL5 E28
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
WHEEL, REAR (15M/CXMT4.00) (BLACK)
$1805.16¢902 581
#2
.BUSH
$15.63¢7 813
#3
SPACER (17.3X25X99)
No Disponible
#4
BEARING
$18.54¢9 269
#5
BEARING
$26.55¢13 275
#6
PANEL, REAR BRAKE ANCHOR
$308.96¢154 481
#7
SHOE SET, BRAKE
$57.66¢28 831
#8
SPRING, SHOE
$5.50¢2 750
#9
CAM, BRAKE
$41.52¢20 763
#10
O RING (D:2.4,ID:14.8)
$2.30¢1 150
#11
WASHER (15.5X24X1.6)
$3.36¢1 681
#12
LEVER, BRAKE CAM
$63.06¢31 531
#13
BOLT
$3.98¢1 988
#14
JOINT, HUB DRIVEN
$368.35¢184 175
#15
O RING (D:2.1,ID:65)
$4.88¢2 438
#16
WASHER, THRUST
$3.65¢1 825
#17
BOLT (6X16)
$2.06¢1 031
#18
WASHER
$4.13¢2 063
#19
AXLE, REAR (L:302)
$113.84¢56 919
#20
SPRING
$12.13¢6 063
#21
NUT
$11.81¢5 906
#22
WASHER (17X30X3.2)
$3.21¢1 606
#23
SPACER, RH
$30.71¢15 356
#24
SPACER, LH
$31.15¢15 575
#25
TIRE, RR, 170/80-15M/C 77H IRC | GS-23R D
No Disponible
#26
VALVE ASSY, WHEEL RIM (TR412)
$10.55¢5 275
#27
BALANCER, WHEEL NO.1
No Disponible
#27
BALANCER, WHEEL NO.2
No Disponible
#27
BALANCER, WHEEL NO.3
No Disponible
#28
ROD ASSY, REAR BRAKE
$34.28¢17 138
#29
.PIN (13X18)
$4.07¢2 037
#30
.WASHER
$2.92¢1 463
#31
COTTER PIN
$1.59¢794
#32
.SPRING
$2.60¢1 300
#33
.PIN (10X16)
$2.59¢1 294
#34
.NUT
$3.65¢1 825
