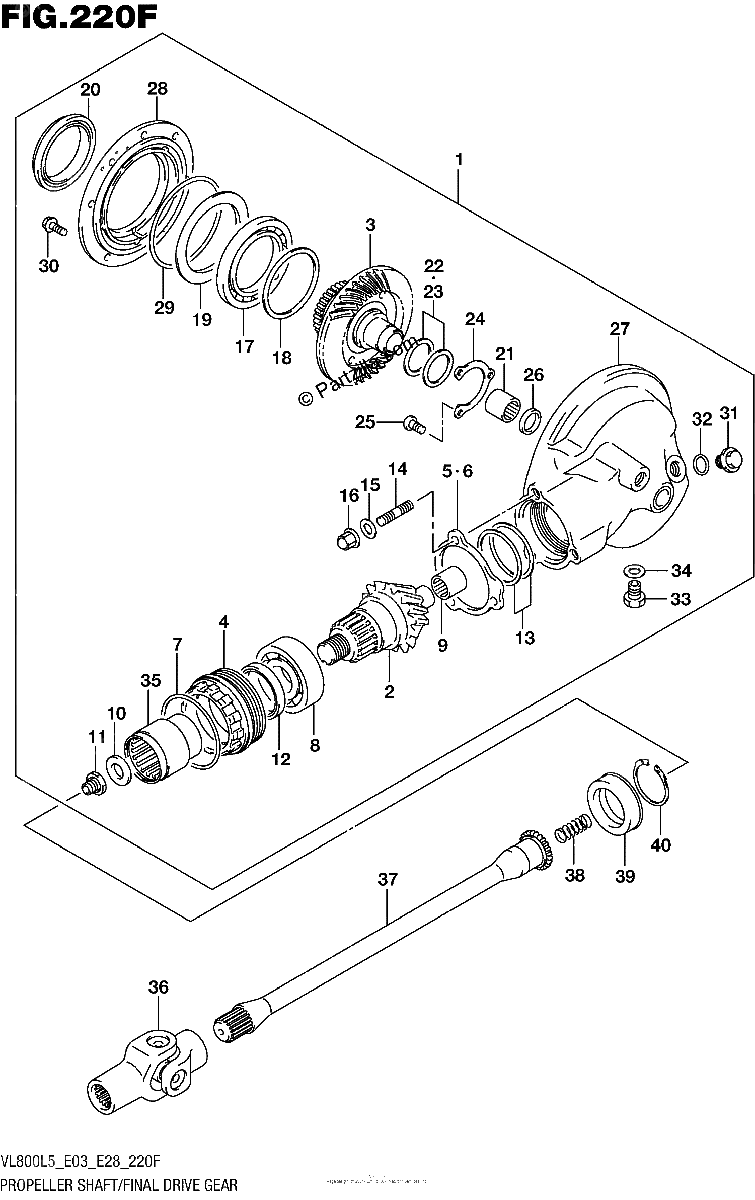

PROPELLER SHAFT FINAL DRIVE GEAR VL800BL5 E28
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
GEAR & CASE SET, FINAL BEVEL (BLACK)
$2872.27¢1 436 137
#2
.GEAR, FINAL DRIVE BEVEL
$366.65¢183 327
#3
.GEAR, FINAL DRIVEN BEVEL
$570.38¢285 189
#4
.STOPPER, BEARING
$90.33¢45 166
#5
.PLATE
$9.14¢4 571
#6
.PLATE
$9.14¢4 571
#7
.O RING (D:1.9,ID:61.6)
$3.56¢1 783
#8
.BEARING (30X62X23.8)
$144.35¢72 174
#9
.BEARING (17X32X16)
$58.90¢29 451
#10
.WASHER (16X29X4)
$7.67¢3 835
#11
.NUT
$10.82¢5 411
#12
.OIL SEAL (38X54X6)
$15.94¢7 969
#13
.SHIM SET, FINAL | T:0.3/0.35/0.4/0.5/0
$35.02¢17 509
#14
.STUD BOLT
$6.90¢3 450
#15
WASHER
$2.07¢1 035
#16
NUT
$6.80¢3 398
#17
.BEARING (70X110X13)
$170.18¢85 088
#18
.SHIM SET, DRIVE GEAR BEARING | T:0.35/0.4/0.5/0.6
$47.76¢23 880
#19
.PLATE
$9.14¢4 571
#20
.OIL SEAL (70X96X16) | RH
$55.98¢27 991
#21
.BEARING (32X46X17.7) | LH
$97.90¢48 950
#22
.SHIM SET, FINAL DRIVE GEAR | T:1.05/1.1/1.2/1.25/
No Disponible
#23
.SHIM SET, FINAL DRIVE GEAR | T:1.40/1.45/1.50
No Disponible
#24
.RETAINER, BEARING
No Disponible
#25
SCREW (6X12)
$2.64¢1 322
#26
.OIL SEAL (30X42X7)
$10.53¢5 267
#27
.CASE, FINAL GEAR (BLACK)
No Disponible
#28
.CASE, FINAL GEAR BEARING
No Disponible
#29
.O RING (D:3.5,ID:131.6)
$13.13¢6 567
#30
.BOLT
$2.77¢1 386
#31
.PLUG
$10.66¢5 330
#32
.O RING (D:2.4,ID:17.8)
$5.59¢2 794
#33
.PLUG (MAGNET)
$5.67¢2 835
#34
GASKET
$1.97¢983
#35
.COUPLING, PROPELLER SHAFT
$58.19¢29 095
#36
YOKE, UNIVERSAL JOINT
$428.40¢214 199
#37
SHAFT, PROPELLER
$207.45¢103 724
#38
SPRING
$3.36¢1 679
#39
OIL SEAL (28.4X48X15)
$11.34¢5 669
#40
CIRCLIP
$5.03¢2 513
