FUEL TANK SFV650L5 E03

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

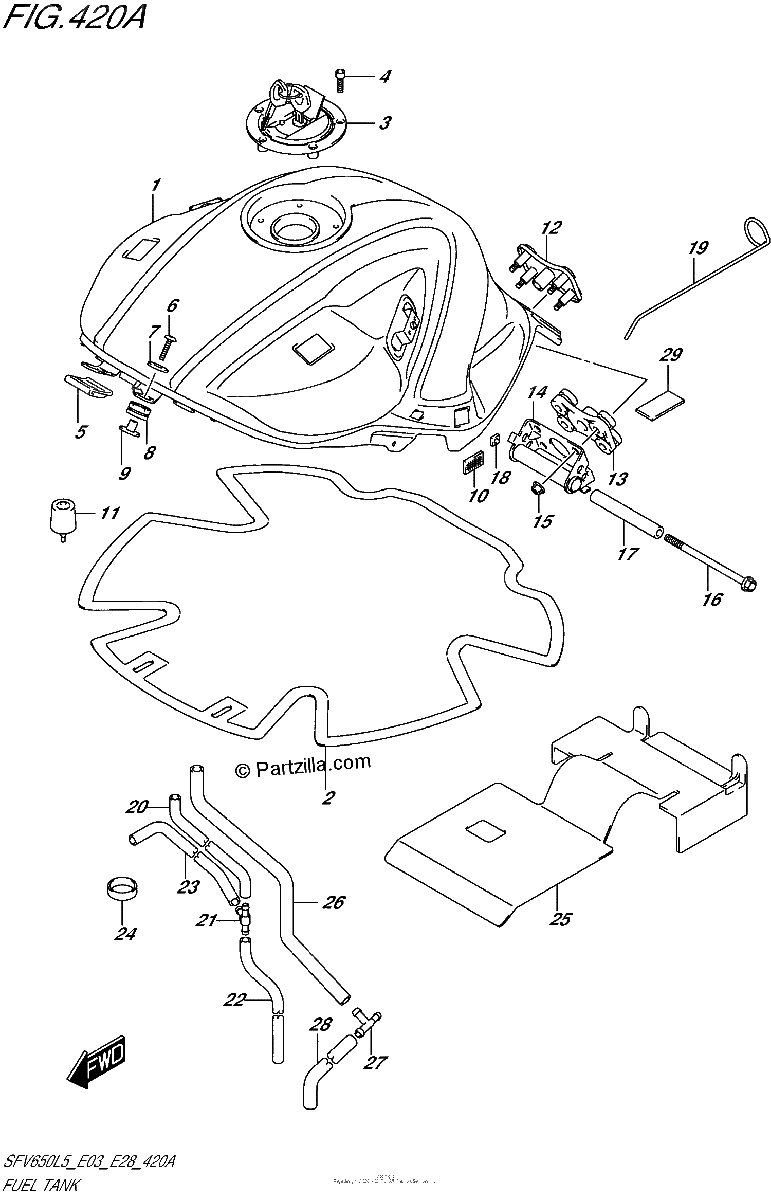

Diagrama de FUEL TANK SFV650L5 E03

Repuestos

#1
44100-44H31-YKY
TANK ASSY, FUEL (BLUE) | FOR AJP
No Disponible
1
#1
44100-44H31-YVB
TANK ASSY, FUEL (BLACK) | FOR AR4,KGL
No Disponible
1
#2
44191-44H00
SHIELD, TANK HEAT
No Disponible
1
#3
44200-16850
CAP SET, FUEL TANK
$140.95¢70 475
1
#4
09106-05017
BOLT (5X20)
$3.65¢1 825
1
#5
44546-44H00
RUBBER, TANK FRONT
$18.02¢9 013
1
#6
09139-06029
SCREW (6X25)
$6.30¢3 150
1
#7
09160-06054
WASHER
$2.10¢1 050
1
#8
44511-16G00
CUSHION, FUEL TANK FRONT
$4.91¢2 456
1
#9
44512-16G00
SPACER, FUEL TANK FRONT
$8.86¢4 431
1
#10
47912-37H00
FASTENER
$12.14¢6 069
1
#11
44542-29G00
CUSHION, FUEL TANK SIDE
$9.46¢4 731
1
#12
44570-16G00
BRACKET, REAR UPPER
No Disponible
1
#13
44542-16G00
CUSHION, FUEL TANK REAR
$18.60¢9 300
1
#14
44530-44H00
BRACKET, FUEL TANK REAR
No Disponible
1
#15
08319-3106A
.NUT
$2.63¢1 313
1
#16
09103-06060
BOLT (6X100)
$3.29¢1 644
1
#17
44561-35F00
SPACER
$17.01¢8 506
1
#18
08318-1106A
NUT
No Disponible
1
#19
44574-16G00
STAY, FUEL TANK
$36.09¢18 044
1
#20
44424-44H00
HOSE, BREATHER NO.1
No Disponible
1
#21
09367-06007
3 WAY
$4.14¢2 069
1
#22
44420-44AR0
HOSE,5X8.2X600 | L:600-260
No Disponible
1
#23
44425-09E00
HOSE, BREATHER
$15.22¢7 613
1
#24
09352-12163-600
HOSE (12X16X600) | L:600-10
No Disponible
1
#25
44271-44H00
SHEET, SHIELD RUBBER
No Disponible
1
#26
44423-44H00
HOSE, TANK WATER DRAIN
No Disponible
1
#27
09367-08005
3 WAY
$6.35¢3 175
1
#28
44423-44H10
HOSE, WATER DRAIN
No Disponible
1
#29
36920-08D10
CUSHION
No Disponible
1
