FRAME COVER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

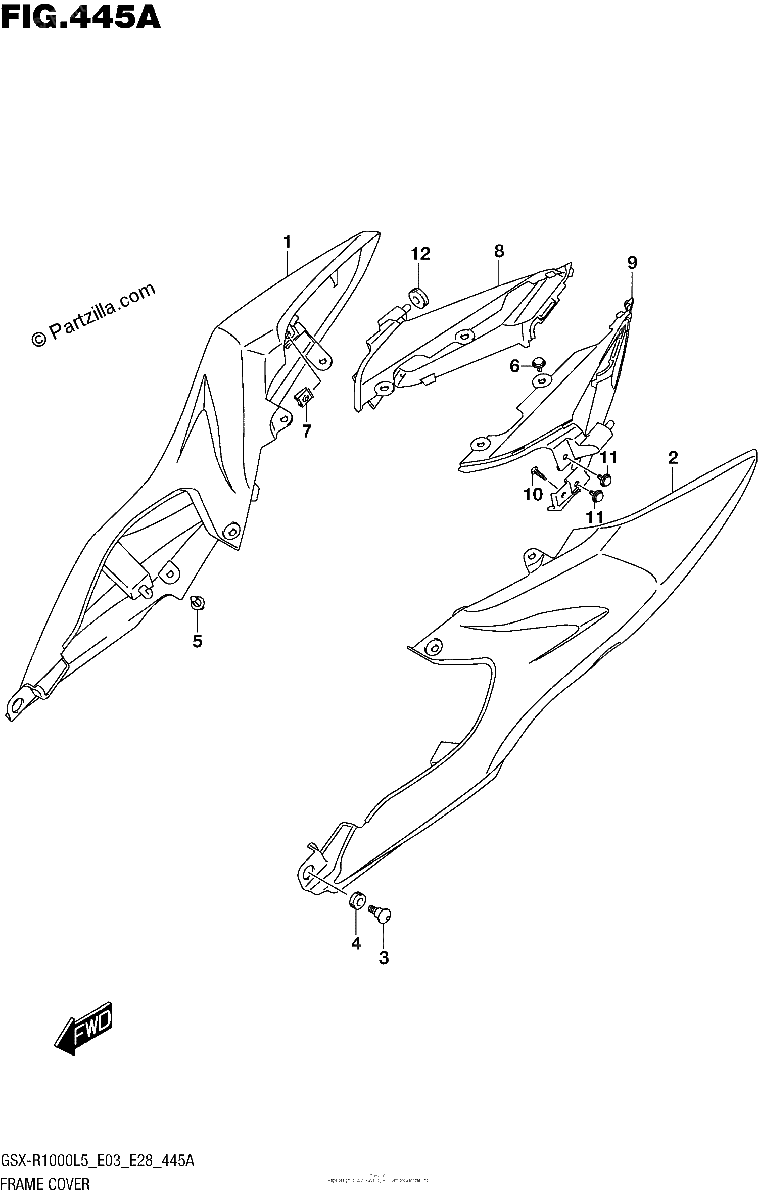

Diagrama de FRAME COVER

Repuestos

#1
47111-47H00-YVB
COVER, FRAME RH (BLACK) | FOR AR4
$227.81¢113 907
1
#1
47110-47H10-YSF
COVER, FRAME RH (BLUE)
$216.64¢108 318
1
#1
47111-47H00-YKV
COVER, FRAME RH (BLACK) | FOR HTL
$234.77¢117 386
1
#2
47210-47H10-YSF
COVER, FRAME LH (BLUE)
$164.22¢82 110
1
#2
47211-47H00-YKV
COVER, FRAME LH (BLACK) | FOR HTL
$239.20¢119 600
1
#2
47211-47H00-YVB
COVER, FRAME LH (BLACK) | FOR AR4
$232.10¢116 052
1
#3
47133-43H00
SCREW
$6.80¢3 398
1
#4
09320-08021
CUSHION | RH
$2.04¢1 018
1
#5
09409-06314-5PK
CLIP (BLACK)
$3.31¢1 656
1
#6
09409-06328
CLIP
$3.50¢1 748
1
#7
09148-05038
NUT
$2.36¢1 179
1
#8
47611-47H00-YKV
COVER, FRAME REAR RH (BLACK)
$138.55¢69 276
1
#8
47611-47H00-YVB
COVER, FRAME REAR RH (BLACK) | FOR ARB
$134.44¢67 218
1
#9
47621-47H00-YKV
COVER, FRAME REAR LH (BLACK)
$135.99¢67 994
1
#9
47621-47H00-YVB
COVER, FRAME REAR LH (BLACK) | FOR ARB
$134.44¢67 218
1
#10
03541-0512A
SCREW
$1.64¢822
1
#11
09409-06328
CLIP
$3.50¢1 748
1
#12
09320-06504
CUSHION
$5.36¢2 680
1
