FOOTREST

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

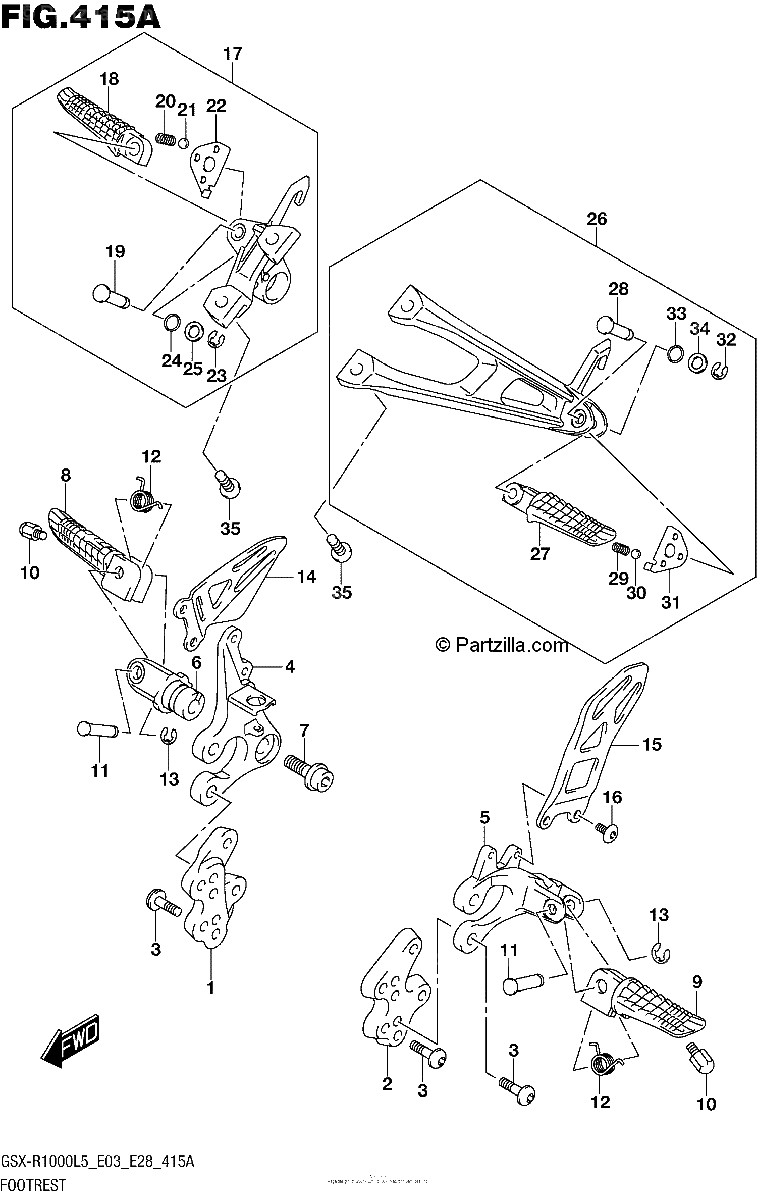

Diagrama de FOOTREST

Repuestos

#1
43541-47H10
BRACKET, FRONT NO.1 RH
$109.03¢54 513
1
#2
43551-47H10
BRACKET, FRONT NO.1 LH
$109.03¢54 513
1
#3
09106-08186
BOLT (8X23)
$4.01¢2 006
1
#4
43511-47H10
BRACKET, FRONT NO.2 RH
$171.77¢85 887
1
#5
43521-47H20
BRACKET, FOOTREST NO.2 LH
$104.19¢52 094
1
#6
43531-41G20
HOLDER, FOOTREST
$120.63¢60 313
1
#7
09106-10064
BOLT (10X28)
$5.75¢2 875
1
#8
43516-37H10
BAR, FOOTREST RH
$40.25¢20 125
1
#9
43526-37H10
BAR, FOOTREST LH
$62.10¢31 050
1
#10
43576-48B40
BOLT, BANK SENSOR
$13.54¢6 769
1
#11
09208-08018
PIN
$3.61¢1 806
1
#12
43581-47H00
SPRING, FRONT FOOTREST
$3.98¢1 988
1
#13
08332-1106A
.E RING
$1.86¢931
1
#14
43571-47H30
GUARD, FOOTREST RH
$105.00¢52 500
1
#15
43576-47H40
GUARD, FOOTREST LH
$109.72¢54 863
1
#16
43577-35F00
SCREW, LH
$4.75¢2 375
1
#17
43600-47H40
FOOTREST ASSY,P
$284.91¢142 456
1
#18
43611-37H10
.BAR, RH
$68.79¢34 394
1
#19
09208-08014
.PIN
$5.66¢2 831
1
#20
09440-05005
.SPRING
$1.85¢925
1
#21
06111-07004
.BALL
$1.59¢794
1
#22
43816-47H00
.PLATE
$10.19¢5 094
1
#23
08332-1106A
.E RING
$1.86¢931
1
#24
18592-68K00
.O RING (D:2.4,ID:6.9)
$6.50¢3 250
1
#25
14289-37H00
.WASHER
$7.09¢3 544
1
#26
43700-47H40
FOOTREST ASSY,P
$299.19¢149 594
1
#27
43621-37H30
.BAR, PILLION FOOTREST LH
$75.28¢37 638
1
#28
09208-08014
.PIN
$5.66¢2 831
1
#29
09440-05005
.SPRING
$1.85¢925
1
#30
06111-07004
.BALL
$1.59¢794
1
#31
43826-47H00
.PLATE
$9.81¢4 906
1
#32
08332-1106A
.E RING
$1.86¢931
1
#33
18592-68K00
.O RING (D:2.4,ID:6.9)
$6.50¢3 250
1
#34
14289-37H00
.WASHER
$7.09¢3 544
1
#35
09106-08186
BOLT (8X23)
$4.01¢2 006
1
