CRANKCASE

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

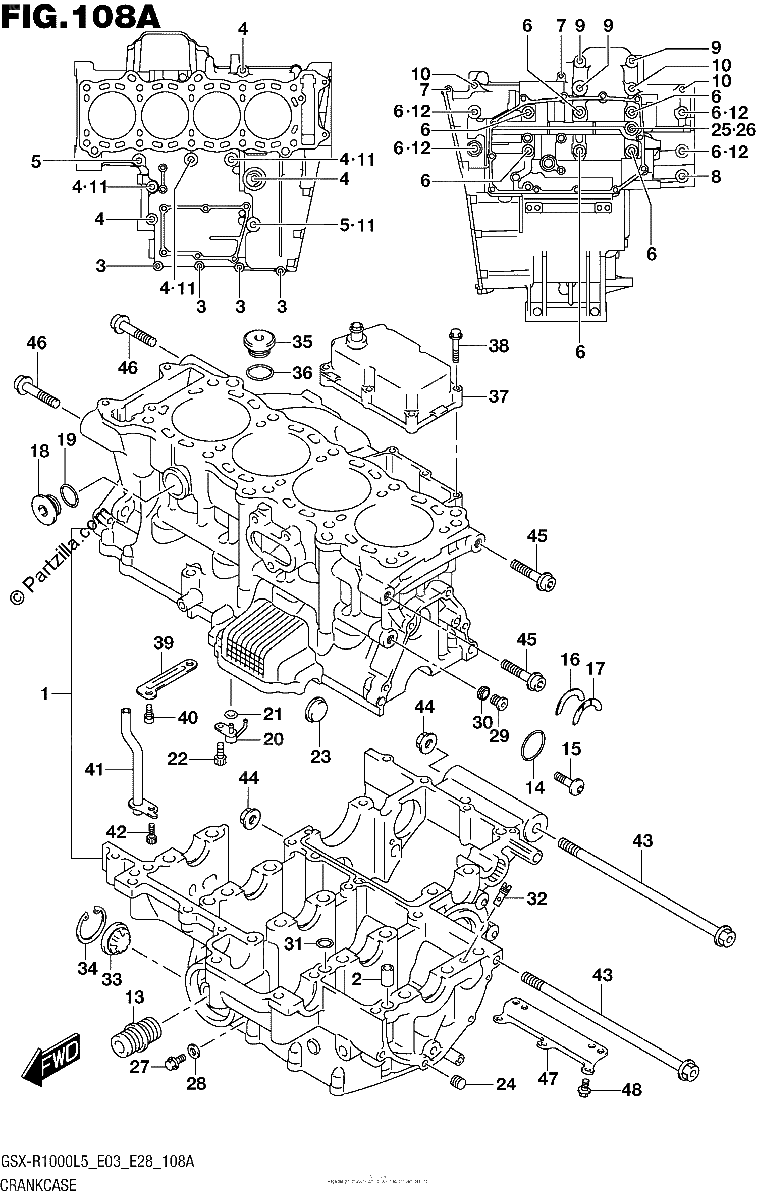

Diagrama de CRANKCASE

Repuestos

#1
11300-47890
CRANKCASE SET
$6814.15¢3 407 075
1
#2
11319-33E50
.PIN, CRANKCASE
$6.52¢3 262
1
#3
01547-0635A
BOLT
$3.01¢1 506
1
#4
01550-0855A
.BOLT
$3.65¢1 825
1
#5
01550-0865A
.BOLT
$4.19¢2 094
1
#6
09103-09012
.BOLT (9X95)
$10.30¢5 150
1
#7
01547-0645A
BOLT
$3.16¢1 581
1
#8
01550-0835A
BOLT
$3.65¢1 825
1
#9
01550-0855A
.BOLT
$3.65¢1 825
1
#10
01550-0865A
.BOLT
$4.19¢2 094
1
#11
09168-08016
.GASKET (8.2X14X1)
$2.14¢1 069
1
#12
09168-10031
.GASKET (10.2X20X2.3)
$2.63¢1 313
1
#13
16591-06B01
.UNION, OIL FILTER STAND
$8.40¢4 200
1
#14
09280-00045
.O RING (D:3,ID:102)
$63.54¢31 769
1
#15
09139-06151
.BOLT (6X20) | DRIVE SHAFT BEARING
$5.41¢2 706
1
#16
12228-48B00-0E0
.BEARING, THRUST LH (GREEN)
$11.46¢5 731
1
#17
12228-48B00-0B0
.BEARING, THRUST LH (BROWN)
$15.60¢7 800
1
#17
12228-48B00-0D0
.BEARING, THRUST LH (YELLOW)
$15.90¢7 950
1
#17
12228-48B00-0C0
BEARING, THRUST LH (RED)
$15.34¢7 669
1
#17
12228-48B00-0E0
.BEARING, THRUST LH (GREEN)
$11.46¢5 731
1
#17
12228-48B00-0F0
BEARING, THRUST LH (BLUE)
$15.90¢7 950
1
#17
12228-48B00-0G0
BEARING, THRUST LH (ORANGE)
$15.90¢7 950
1
#17
12228-48B00-0H0
BEARING, THRUST LH (BLACK)
$11.84¢5 919
1
#18
11318-35F00
.PLUG, WATER JACKET
$22.65¢11 325
1
#19
09280-20002
.O RING (D:3.1,ID:19.4)
$2.49¢1 244
1
#20
11390-21H00
JET, PISTON COOLING
$58.31¢29 156
1
#21
09280-04004
O RING (D:1.2,ID:4)
$2.21¢1 106
1
#22
09106-06075
BOLT (6X12)
$3.25¢1 625
1
#23
09241-23005
PLUG
$16.34¢8 169
1
#24
09246-05006
PLUG
$5.59¢2 794
1
#25
09248-12004
PLUG (L:12)
$10.44¢5 219
1
#26
09168-12002
GASKET (12.1X16.2X3.7)
$2.06¢1 031
1
#27
01547-0612A
BOLT
$2.63¢1 313
1
#28
09168-06018
GASKET (6.2X13X1.2)
$2.21¢1 106
1
#29
09248-10010
PLUG (10X10)
$4.97¢2 488
1
#30
09168-10002
GASKET (10X14X3.6)
$2.48¢1 238
1
#31
09280-08012
O RING (D:1.9,ID:7.8)
$4.33¢2 163
1
#32
09493-28012
JET (140)
$22.15¢11 075
1
#33
11971-33210
.LENS, OIL LEVEL CHECK
$21.70¢10 850
1
#34
08331-4130A
CIRCLIP
$3.56¢1 781
1
#35
09259-26011
PLUG (26X9)
$12.98¢6 488
1
#36
09280-22008
O RING (D:3.1,ID:22.7)
$2.64¢1 319
1
#37
11380-47H00
COVER, BREATHER
$190.97¢95 488
1
#38
01547-0630A
BOLT
$3.01¢1 506
1
#39
11382-47H00
PLATE, BREATHER OIL RETURN
No Disponible
1
#40
09106-06075
BOLT (6X12)
$3.25¢1 625
1
#41
11383-47H00
PIPE, BREATHER OIL RETURN
No Disponible
1
#42
07130-0612A
BOLT
$3.25¢1 625
1
#43
09103-12110
BOLT (12X220)
$36.59¢18 294
1
#44
09159-12054
NUT
$11.47¢5 738
1
#45
09106-10089
BOLT (10X45)
$19.84¢9 919
1
#46
09106-10090
BOLT (10X55)
$24.54¢12 269
1
#47
11322-47H00
PLATE, LOWER
No Disponible
1
#48
09103-06188
BOLT (6X10)
$3.81¢1 906
1
