FUEL TANK SIDE COVER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

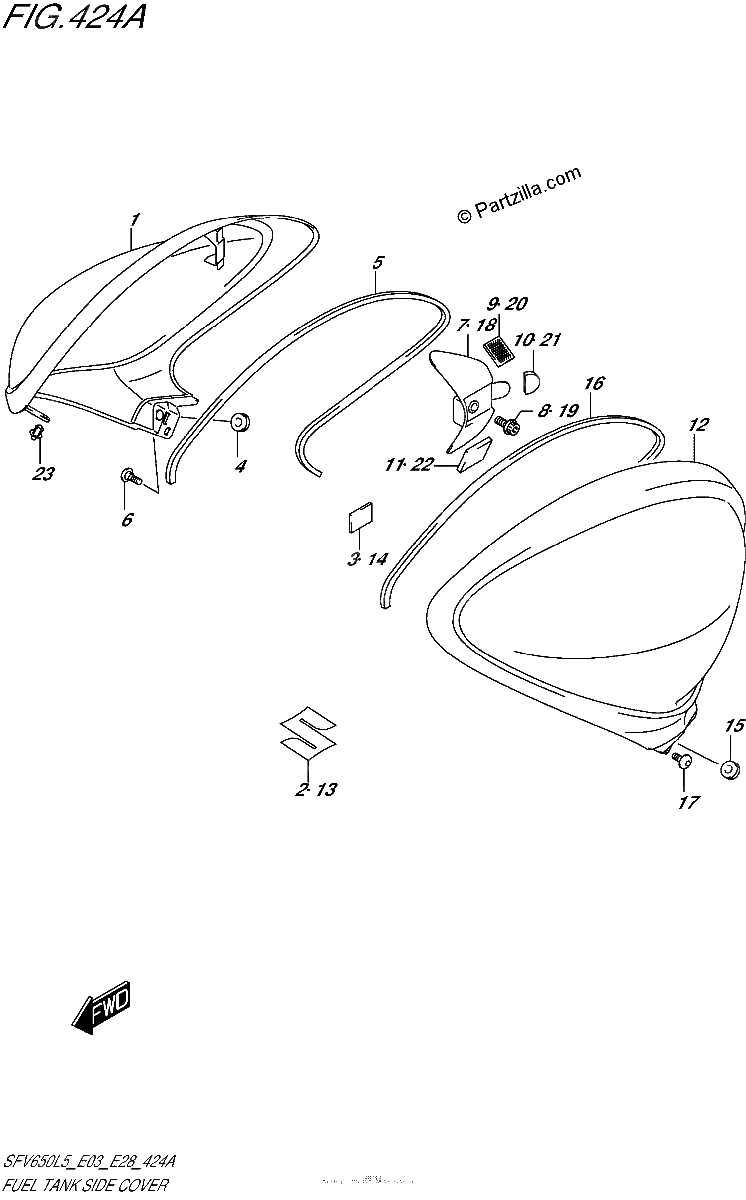

Diagrama de FUEL TANK SIDE COVER

Repuestos

#1
44171-44H01-YKV
COVER, TANK SIDE RH (BLACK) | FOR KGL
$274.41¢137 207
1
#1
44171-44H01-PGZ
COVER, TANK SIDE RH (GRAY) | FOR AR4
No Disponible
1
#1
44171-44H01-YWW
COVER, TANK SIDE RH (WHITE) | FOR AJP
$258.15¢129 076
1
#2
68111-47HA0
EMBLEM, in.Sin.
$44.37¢22 184
1
#3
44572-13G00
FASTENER
$12.13¢6 066
1
#4
09320-06016
CUSHION
$2.54¢1 271
1
#5
44277-44H00
CUSHION, UPPER
$7.97¢3 985
1
#6
09139-05074
BOLT (5X13)
$3.09¢1 547
1
#7
44179-44H00
BRACKET, COVER RH
No Disponible
1
#8
07120-0612A
BOLT
$2.99¢1 495
1
#9
44572-13G00
FASTENER
$12.13¢6 066
1
#10
09329-18001
CUSHION
$2.27¢1 133
1
#11
44183-23H00
CUSHION, FUEL TANK SIDE COVER
$16.10¢8 050
1
#12
44181-44H01-PGZ
COVER, TANK SIDE LH (GRAY) | FOR AR4
No Disponible
1
#12
44181-44H01-YKV
COVER, TANK SIDE LH (BLACK) | FOR KGL
$274.41¢137 207
1
#12
44181-44H01-YWW
COVER, TANK SIDE LH (WHITE) | FOR AJP
$258.15¢129 076
1
#13
68111-47HA0
EMBLEM, in.Sin.
$44.37¢22 184
1
#14
44572-13G00
FASTENER
$12.13¢6 066
1
#15
09320-06016
CUSHION
$2.54¢1 271
1
#16
44277-44H00
CUSHION, UPPER
$7.97¢3 985
1
#17
09139-05074
BOLT (5X13)
$3.09¢1 547
1
#18
44189-44H00
BRACKET, COVER LH
No Disponible
1
#19
07120-0612A
BOLT
$2.99¢1 495
1
#20
44572-13G00
FASTENER
$12.13¢6 066
1
#21
09329-18001
CUSHION
$2.27¢1 133
1
#22
44183-23H00
CUSHION, FUEL TANK SIDE COVER
$16.10¢8 050
1
#23
09409-07333
CLIP
$2.75¢1 374
1
