CRANKCASE COVER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

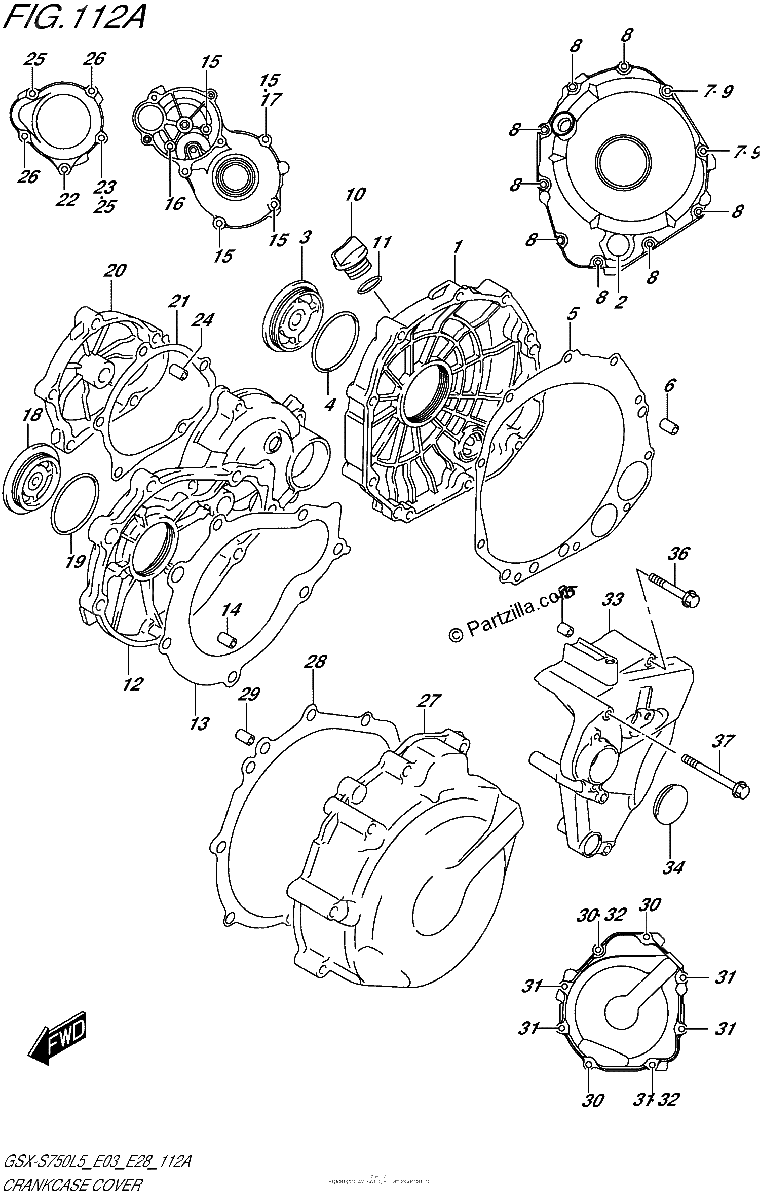

Diagrama de CRANKCASE COVER

Repuestos

#1
11340-44G10
COVER, CLUTCH
$345.34¢172 669
1
#2
11971-33210
.LENS, OIL LEVEL CHECK
$21.70¢10 850
1
#3
11342-41G10
CAP, CLUTCH RELEASE ADJUST
$29.86¢14 931
1
#4
31156-17E00
O RING
$5.49¢2 744
1
#5
11482-40F10
GASKET, CLUTCH COVER
$18.71¢9 356
1
#6
04211-09189
PIN
$2.14¢1 069
1
#7
09168-06023
GASKET (5.8X13X1.2)
$2.63¢1 313
1
#8
09103-06213
BOLT (6X30)
$3.19¢1 594
1
#9
09103-06215
BOLT (6X40)
$3.64¢1 819
1
#10
11971-25D00
PLUG, ENGINE OIL FILLER
$6.09¢3 044
1
#11
09280-17003
O RING (D:3.1,ID:16.8)
$2.14¢1 069
1
#12
11381-35F10
COVER, STARTER CLUTCH
$345.50¢172 750
1
#13
11491-33E02
GASKET, STARTER CLUTCH COVER
$10.41¢5 206
1
#14
04211-09149
PIN
$2.14¢1 069
1
#15
09103-06212
BOLT (6X25)
$3.19¢1 594
1
#16
09103-06214
BOLT (6X35)
$3.24¢1 619
1
#17
09168-06023
GASKET (5.8X13X1.2)
$2.63¢1 313
1
#18
09259-36021
PLUG
$16.23¢8 113
1
#19
09280-33004
O RING (D:3.1,ID:32.7)
$2.92¢1 463
1
#20
11382-33E10
CAP, STARTER IDLE GEAR
$93.04¢46 519
1
#21
11492-33E00
GASKET, STARTER IDLE GEAR CAP
$8.61¢4 306
1
#22
09103-06216
BOLT (6X55)
$3.60¢1 800
1
#23
09168-06023
GASKET (5.8X13X1.2)
$2.63¢1 313
1
#24
04211-09149
PIN
$2.14¢1 069
1
#25
09103-06212
BOLT (6X25)
$3.19¢1 594
1
#26
09103-06214
BOLT (6X35)
$3.24¢1 619
1
#27
11351-18G20
COVER, MAGNETO
$172.19¢86 094
1
#28
11483-18G00
GASKET, MAGNETO COVER
$13.19¢6 594
1
#29
04211-09149
PIN
$2.14¢1 069
1
#30
09103-06213
BOLT (6X30)
$3.19¢1 594
1
#31
09103-06224
BOLT (6X45)
$3.49¢1 744
1
#32
09168-06023
GASKET (5.8X13X1.2)
$2.63¢1 313
1
#33
11361-08J00
COVER, ENGINE SPROCKET
$198.46¢99 231
1
#34
09250-30003
CAP (OD:36)
$4.58¢2 288
1
#35
04211-09129
PIN
$2.14¢1 069
1
#36
01547-0665A
BOLT
$3.05¢1 525
1
#37
01547-0695A
BOLT
$4.00¢2 000
1
