RADIATOR HOSE

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

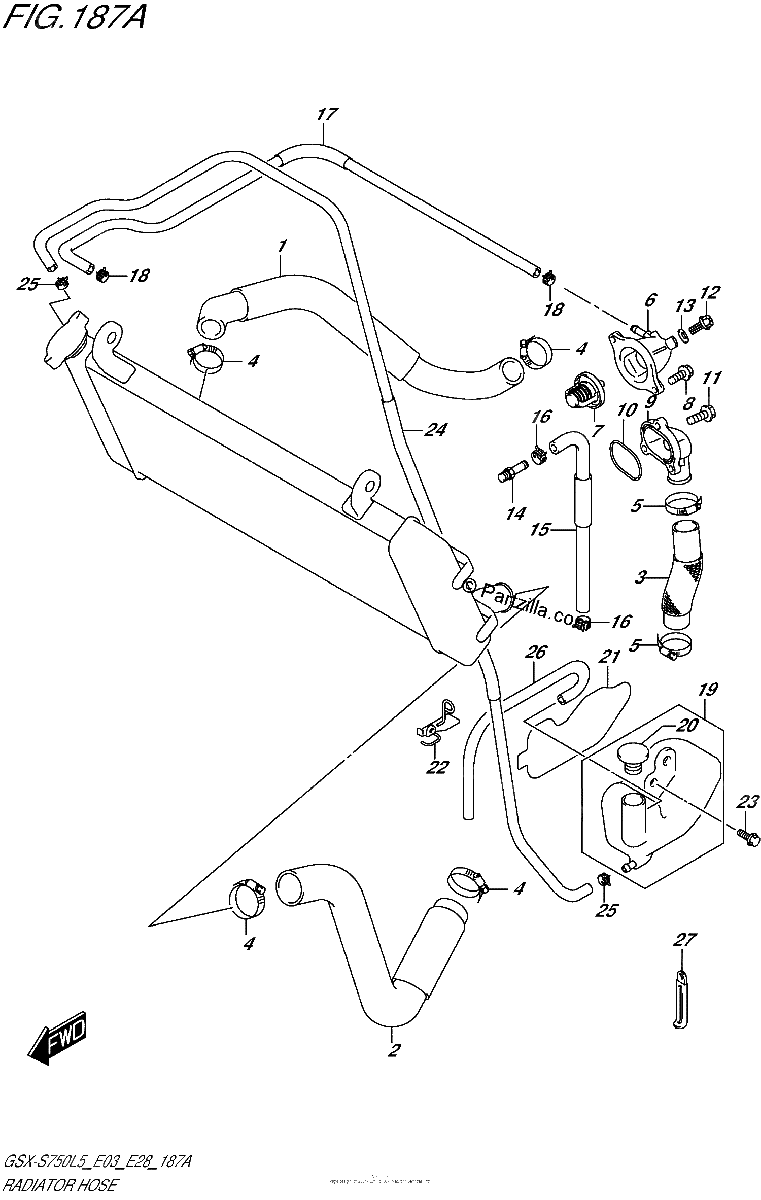

Diagrama de RADIATOR HOSE

Repuestos

#1
17851-08J00
HOSE, RADIATOR INLET
$63.40¢31 700
1
#2
17852-08J10
HOSE, RADIATOR OUTLET
$54.99¢27 496
1
#3
17853-35F10
HOSE, CYLINDER INLET
$41.37¢20 683
1
#4
09402-35501
CLAMP
$10.35¢5 175
1
#5
09402-38512
CLAMP
$12.86¢6 429
1
#6
17661-35F00
COVER, THERMOSTAT
$62.96¢31 481
1
#7
17670-76G00
THERMOSTAT, WATER
$40.37¢20 183
1
#8
01547-0620A
BOLT
$2.42¢1 208
1
#9
17861-08J00
CONNECTOR, CYLINDER WATER
No Disponible
1
#10
17863-33E00
O RING
$4.42¢2 208
1
#11
01547-0620A
BOLT
$2.42¢1 208
1
#12
17568-50F00
BOLT, THERMOSTAT COVER AIR
$6.96¢3 479
1
#13
09168-06026
GASKET (6.4X11.5X0.8)
$3.36¢1 679
1
#14
09362-09011
UNION
$9.07¢4 537
1
#15
17854-08J00
HOSE, WATER BYPASS
$36.91¢18 458
1
#16
09401-12414
CLAMP
$3.58¢1 788
1
#17
17855-08J00
HOSE, WATER AIR BLEED
$17.02¢8 510
1
#18
09401-10409
CLIP
$2.74¢1 368
1
#19
17910-08J00
TANK ASSY, RESERVOIR
$87.09¢43 545
1
#20
17931-02FA0
.CAP
$6.11¢3 053
1
#21
17912-08J00
SHIELD, RESERVIOR TANK HEAT
$10.84¢5 422
1
#22
17914-08J00
PLATE, RESERVOIR TANK CAP
No Disponible
1
#23
09111-06085
BOLT (6X12)
$4.99¢2 496
1
#24
17981-08J00
HOSE, RESERVOIR TANK INLET
$30.21¢15 105
1
#25
09401-08411
CLIP
$2.12¢1 058
1
#26
17981-19F00
HOSE, OVER FLOW | CUT AS REQUIRED
$18.25¢9 125
1
#27
09404-06429
CLAMP (L:45)
$2.14¢1 070
1
