FRAME COVER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

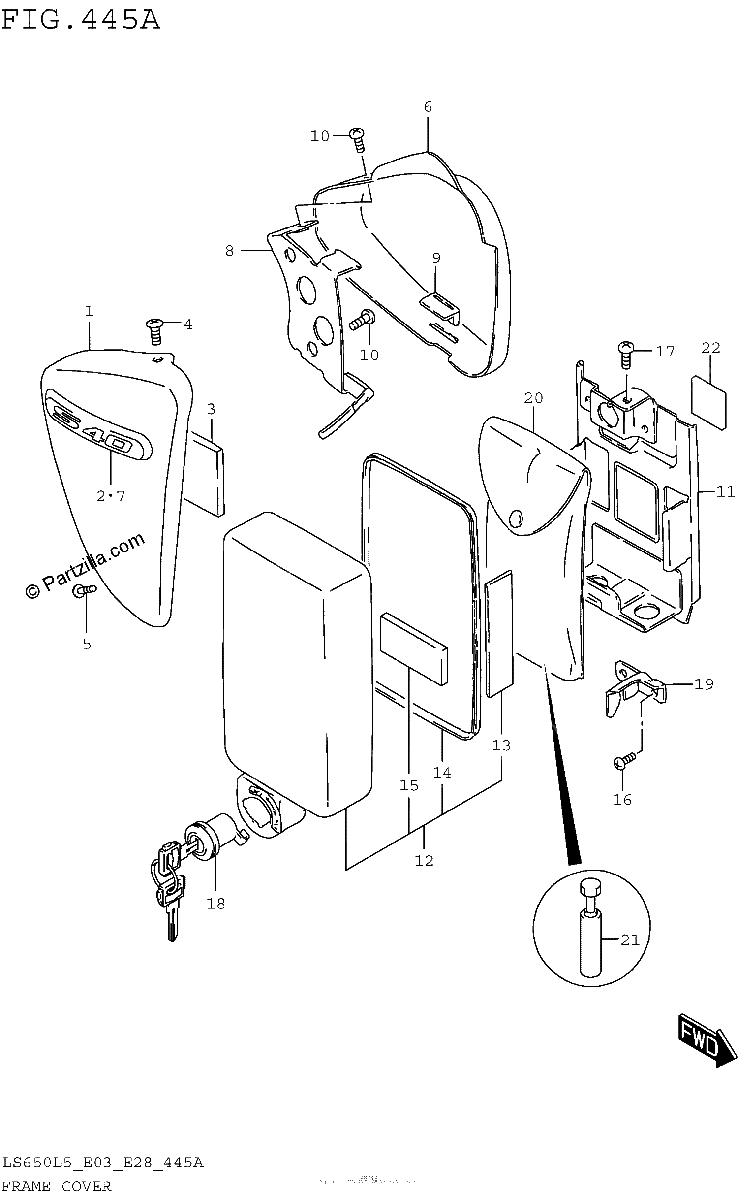

Diagrama de FRAME COVER

Repuestos

#1
47100-24CA1-YWC
COVER ASSY, FRAME RH (GRAY)
$303.64¢151 819
1
#1
47100-24CA1-YYG
COVER ASSY, FRAME RH (RED)
No Disponible
1
#2
68131-24CA1
EMBLEM, FRAME COVER
$48.65¢24 325
1
#3
13719-84150
.CUSHION FRAME COVER RH
$4.54¢2 269
1
#4
02142-0510B
SCREW
$2.30¢1 150
1
#5
02112-7516B
SCREW
$2.96¢1 481
1
#6
47200-24CA1-YYG
COVER ASSY, FRAME LH (RED)
$362.89¢181 444
1
#6
47200-24CA1-YWC
COVER ASSY, FRAME LH (GRAY)
No Disponible
1
#7
68131-24CA1
EMBLEM, FRAME COVER
$48.65¢24 325
1
#8
47180-24B03
BRACKET, FRAME COVER LH
$32.66¢16 331
1
#9
47117-45000
CUSHION, FRAME COVER LH
$2.68¢1 338
1
#10
02122-0612B
SCREW
$2.42¢1 213
1
#11
47430-24B01
HOLDER, TOOL
$25.34¢12 669
1
#12
47440-24B20
COVER, TOOL HOLDER
$65.22¢32 612
1
#13
33652-07D00
PROTECTOR (20X90)
$6.74¢3 369
1
#14
47445-24B00
.MOLDING, TOOL HOLDER
$4.40¢2 200
1
#15
33652-31F00
.CUSHION, TOOL HOLDER
$4.20¢2 100
1
#16
02142-0510B
SCREW
$2.30¢1 150
1
#17
02112-0610A
SCREW
$2.00¢1 000
1
#18
95700-24871
LOCK SET, TOOL HOLDER
$62.02¢31 013
1
#19
47434-24B00
PLATE, TOOL HOLDER LOCK
$5.17¢2 588
1
#20
09800-21055
TOOL ASSY
$24.11¢12 056
1
#21
96220-24B00
GAUGE ASSY, TENSION
$37.15¢18 575
1
#22
33652-20C00
CUSHION (50X50X5)
$3.65¢1 825
1
