PROPELLER SHAFT FINAL DRIVE GEAR VZR1800Z L2 E28

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

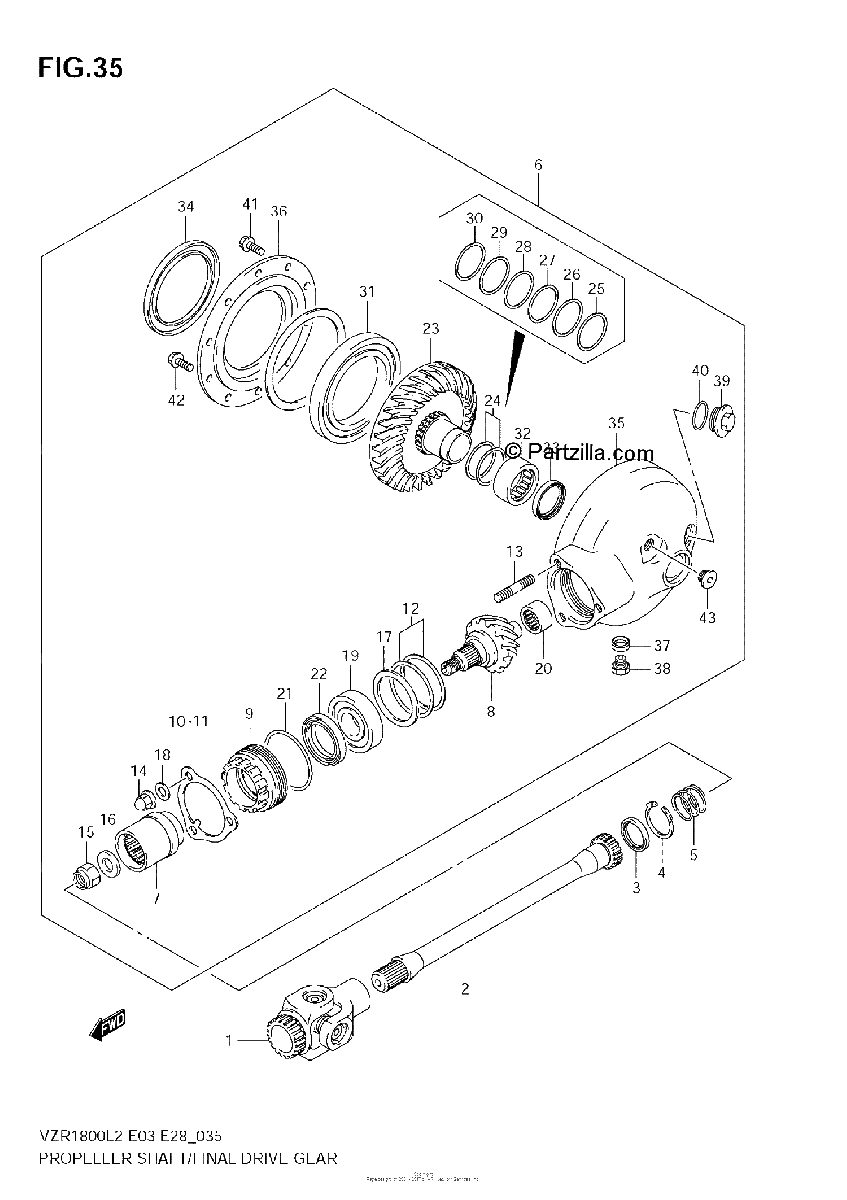

Diagrama de PROPELLER SHAFT FINAL DRIVE GEAR VZR1800Z L2 E28

Repuestos

#1
27100-48G20
YOKE, UNIVERSAL JOINT
$469.46¢234 731
1
#2
27151-48G20
SHAFT, PROPELLER (L:375)
$371.96¢185 981
1
#3
09283-30026
OIL SEAL (30X40.5X5.5)
$12.40¢6 200
1
#4
09381-40003
CIRCLIP
$5.46¢2 731
1
#5
09440-30008
SPRING
$4.88¢2 438
1
#6
27300-48850-019
GEAR CASE SET, FINAL BEVEL
$2616.90¢1 308 450
1
#7
27172-24A00
.COUPLING, FINAL DRIVE GEAR
$80.72¢40 363
1
#8
27311-24A03
.GEAR, FINAL DRIVE BEVEL
No Disponible
1
#9
27312-24A02
.STOPPER, FINAL DRIVE
$100.02¢50 012
1
#10
27313-38B00
.PLATE, BEARING STOPPER
$9.94¢4 969
1
#11
27313-38B10
.PLATE, BEARING STOPPER
$9.94¢4 969
1
#12
27445-24810
.SHIM SET, FINAL DRIVE GEAR | T:0.30/0.35/0.40/0.5
$38.06¢19 031
1
#13
09108-10106
.STUD BOLT
$6.15¢3 075
1
#14
09159-10026
NUT
$7.39¢3 694
1
#15
09159-16003
.NUT
$5.27¢2 637
1
#16
09160-16029
.WASHER (16X29X4)
$8.34¢4 169
1
#17
09160-54001
.WASHER (54X68X1.5)
No Disponible
1
#18
09164-10008
WASHER
$2.25¢1 125
1
#19
09262-28023
.BEARING (28X68X18)
$167.84¢83 919
1
#20
09263-20062
.BEARING (20X34X18)
$61.66¢30 831
1
#21
09280-64003
.O RING (D:3.1,ID:63.9)
$6.64¢3 319
1
#22
09283-47002
.OIL SEAL (45.5X58X7)
$22.56¢11 281
1
#23
27320-48G00
.GEAR, FINAL DRIVEN BEVEL
No Disponible
1
#24
27326-48811
.SHIM SET, FINAL DRIVEN GEAR | RH
$139.09¢69 544
1
#25
09181-40011
..SHIM (40X46.8X0.95)
$4.09¢2 044
1
#26
09181-40013
..SHIM (40X46.8X1.05)
$4.96¢2 481
1
#27
09181-40014
..SHIM (40X46.8X1.1)
No Disponible
1
#28
09181-40176
..SHIM (40X50X1.2)
No Disponible
1
#29
09181-40182
..SHIM (40X50X1.4)
No Disponible
1
#30
09181-40212
..SHIM (40X50X1.5)
No Disponible
1
#31
09262-85001
.BEARING (85X130X14)
$265.48¢132 738
1
#32
09263-40016
.BEARING (40X50X20)
$90.53¢45 263
1
#33
09283-38026
.OIL SEAL (38X46X6)
$25.21¢12 606
1
#34
09289-85001
.OIL SEAL (85X110X11)
$49.86¢24 931
1
#35
27450-48G70-019
.CASE, FINAL GEAR (BLACK)
No Disponible
1
#36
27461-38B00
.CASE, FINAL GEAR BEARING
$320.90¢160 450
1
#37
09168-14004
GASKET
$2.14¢1 069
1
#38
09247-14002
.PLUG (MAGNET)
$6.16¢3 081
1
#39
09259-30007
.PLUG (30X9)
$21.92¢10 962
1
#40
09280-26006
.O RING (D:3.1,ID:26.4)
$3.61¢1 806
1
#41
01550-0825A
.BOLT
$3.01¢1 506
1
#42
01550-1025A
.BOLT
$3.65¢1 825
1
#43
09248-16012
.PLUG (16X8)
$5.46¢2 731
1
