GUARD S

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

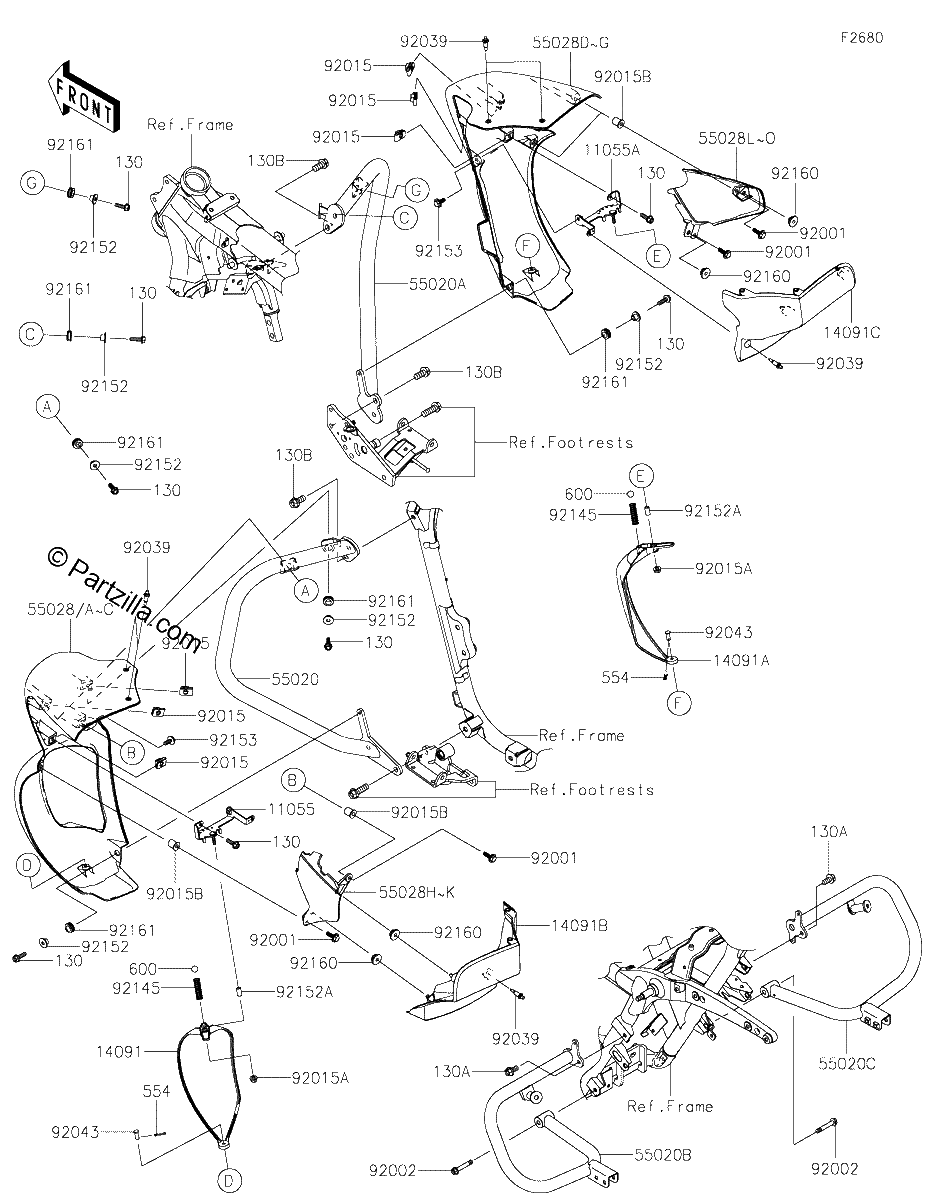

Diagrama de GUARD S

Repuestos

#130
130BA0620
BOLT-FLANGED,6X20
$1.54¢771
1
#130A
130BA0816
BOLT FLANGED,8X16
$1.07¢535
1
#130B
130BC1020
BOLT FLANGED,10X20
$3.52¢1 759
1
#554
554DA0600
PIN-SNAP,1.2X21.2
$0.94¢471
1
#600
600A0800
BALL-STEEL,1/4
$0.70¢351
1
#11055
11055-0687
BRACKET,VENTILATION,LH,UPP
$22.14¢11 069
1
#11055A
11055-0688
BRACKET,VENTILATION,RH,UPP
$22.14¢11 069
1
#14091
14091-1618-6Z
COVER,VENTILATION,Left Hand,F BLACK
$29.88¢14 939
1
#14091A
14091-1619-6Z
COVER,VENTILATION,Right Hand,F BLACK
$31.54¢15 772
1
#14091B
14091-1787
COVER,LH
$40.65¢20 326
1
#14091C
14091-1788
COVER,Right Hand
$40.65¢20 326
1
#55020A
55020-0513
GUARD,Front,Right Hand
$215.07¢107 537
1
#55020
55020-0512
GUARD,Front,Left Hand
$215.07¢107 537
1
#55020B
55020-0535
GUARD,RR,LH
$206.75¢103 374
1
#55020C
55020-0536
GUARD,RR,RH
$206.75¢103 374
1
#55028L
55028-0223-25X
COWLING,LEG SHIELD,INNER,Right Hand,M.
$79.38¢39 692
1
#55028L
55028-0223-45W
COWLING,LEG SHIELD,IN,RH,GRAY
$88.31¢44 154
1
#55028L
55028-0223-68D
COWLING,LEG SHIELD,IN,RH,TEAL
$81.56¢40 779
1
#55028L
55028-0223-H8
COWLING,LEG SHIELD,IN,RH,EBONY
$85.26¢42 631
1
#55028H
55028-0222-68D
COWLING,LEG SHIELD,IN,Left Hand,TEAL
$81.56¢40 779
1
#55028H
55028-0222-H8
COWLING,LEG SHIELD,IN,Left Hand,EBONY
$83.62¢41 808
1
#55028H
55028-0222-45W
COWLING,LEG SHIELD,IN,LH,GRAY
$86.65¢43 326
1
#55028H
55028-0222-25X
COWLING,LEG SHIELD,INNER,Left Hand,M.
$79.41¢39 704
1
#55028
55028-0220-36S
COWLING,LEG SHIELD,OUT,LH,GRAY
$424.67¢212 336
1
#55028
55028-0220-51A
COWLING,LEG SHIELD,OUT,Left Hand,GRAY
$408.82¢204 413
1
#55028
55028-0220-68N
COWLING,LEG SHIELD,OUT,LH,WHT
$424.67¢212 336
1
#55028
55028-0220-726
COWLING,LEG SHIELD,OUTER,Left Hand,M.
$412.84¢206 419
1
#55028D
55028-0221-36S
COWLING,LEG SHIELD,OUT,RH,GRAY
$424.67¢212 336
1
#55028D
55028-0221-51A
COWLING,LEG SHIELD,OUT,Right Hand,GRAY
$376.61¢188 307
1
#55028D
55028-0221-68N
COWLING,LEG SHIELD,OUT,RH,WHT
$424.67¢212 336
1
#55028D
55028-0221-726
COWLING,LEG SHIELD,OUTER,Right Hand,M.
$412.84¢206 419
1
#92001
92001-1460
BOLT,WP,6X20
$3.59¢1 794
1
#92002
92002-1850
BOLT,FLANGED,8X47
$5.22¢2 610
1
#92015
92015-1602
NUT,6MM
$6.72¢3 358
1
#92015A
92015-1675
NUT,LOCK,FLANGED,6MM
$3.94¢1 972
1
#92015B
92015-1700
NUT
$7.84¢3 922
1
#92039
92039-1283
RIVET
$2.37¢1 185
1
#92043
92043-092
PIN,6X11
$4.48¢2 242
1
#92145
92145-1319
SPRING
$1.60¢799
1
#92152
92152-0295
COLLAR
$5.12¢2 559
1
#92152A
92152-0771
COLLAR,6.2X7.8X14
$1.84¢920
1
#92153
92153-1215
BOLT,6X16
$4.04¢2 018
1
#92160
92160-1613
DAMPER
$3.40¢1 702
1
#92161
92161-0266
DAMPER
$1.59¢793
1
