FOOTREST

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

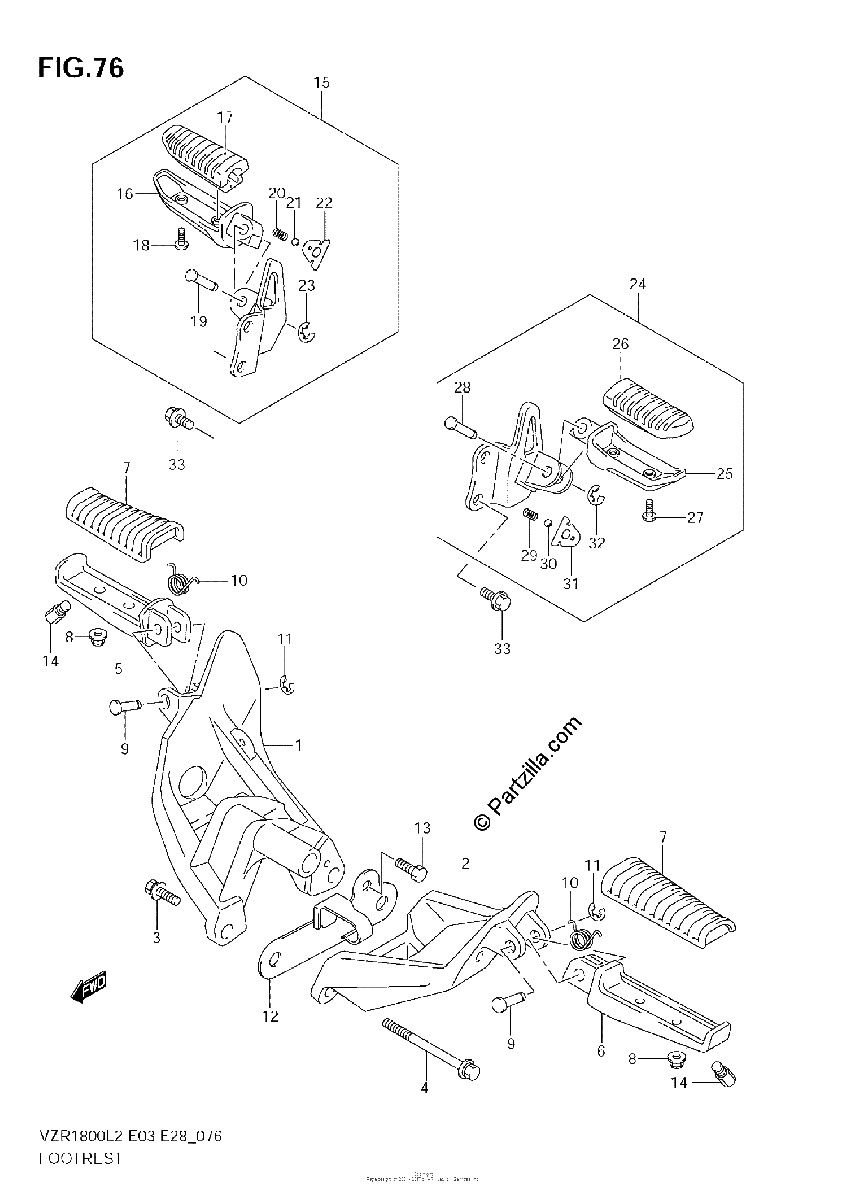

Diagrama de FOOTREST

Repuestos

#1
43511-48G10
BRACKET, FRONT FOOTREST RH
$325.31¢162 656
1
#2
43521-48G01
BRACKET, FRONT FOOTREST LH
$574.40¢287 200
1
#3
09103-10268
BOLT (10X28)
$7.23¢3 613
1
#4
09103-10337
BOLT (10X85) | LH
$8.59¢4 294
1
#5
43531-48G01
BAR, FRONT FOOTREST RH
$63.66¢31 831
1
#6
43541-48G01
BAR, FRONT FOOTREST LH
$62.10¢31 050
1
#7
43550-48G00
RUBBER, FR FOOTREST
$35.83¢17 913
1
#8
08319-2106A
.NUT
$2.46¢1 231
1
#9
09208-08019
PIN
$3.61¢1 806
1
#10
09448-14047
SPRING
$5.00¢2 500
1
#11
08332-1106A
.E RING
$1.86¢931
1
#12
43560-48G00
PLATE, FOOTREST BRACKET
$42.81¢21 406
1
#13
01500-0612A
BOLT
$2.34¢1 169
1
#14
43576-07D01
BOLT, BANK SENSOR
$10.55¢5 275
1
#15
43600-48G00
FOOTREST ASSY, PILLION RH
$237.50¢118 750
1
#16
43611-44G00
.BAR, PILLION FOOTREST RH
$74.03¢37 013
1
#17
43550-44G00
.RUBBER, FOOTREST
$48.00¢24 000
1
#18
02142-05127
.SCREW
$2.56¢1 281
1
#19
09208-08017
.PIN
$4.41¢2 206
1
#20
09440-05005
.SPRING
$1.85¢925
1
#21
06111-07004
.BALL
$1.59¢794
1
#22
43816-44G00
.PLATE, PILLION
$6.14¢3 069
1
#23
08332-1106A
.E RING
$1.86¢931
1
#24
43700-48G00
FOOTREST, PILLION LH
$237.50¢118 750
1
#25
43621-44G00
.BAR, PILLION FOOTREST LH
$74.03¢37 013
1
#26
43550-44G00
.RUBBER, FOOTREST
$48.00¢24 000
1
#27
02142-05127
.SCREW
$2.56¢1 281
1
#28
09208-08017
.PIN
$4.41¢2 206
1
#29
09440-05005
.SPRING
$1.85¢925
1
#30
06111-07004
.BALL
$1.59¢794
1
#31
43816-44G00
.PLATE, PILLION
$6.14¢3 069
1
#32
08332-1106A
.E RING
$1.86¢931
1
#33
09103-08412
BOLT (8X16)
$3.98¢1 988
1
