SIDE COVERS CHAIN COVER ADF AEF

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

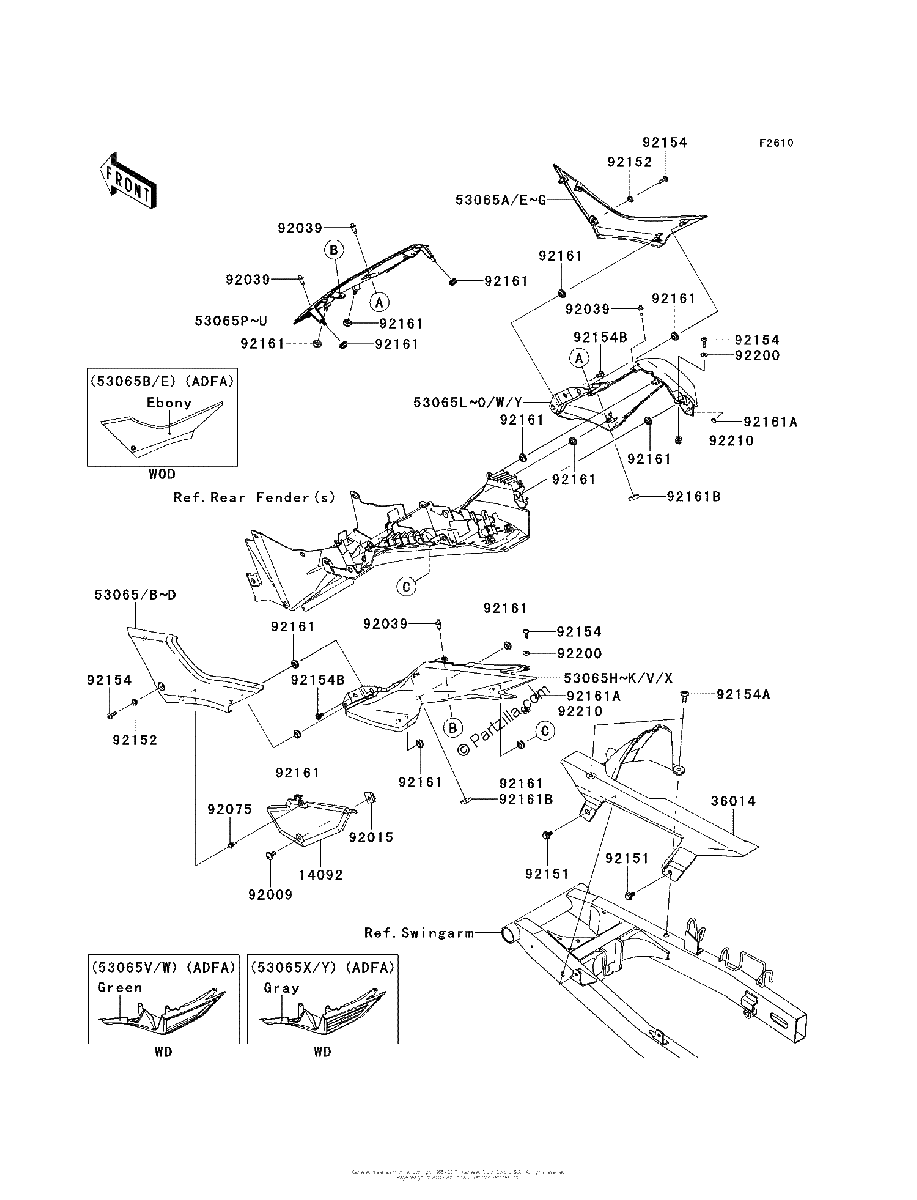

Diagrama de SIDE COVERS CHAIN COVER ADF AEF

Repuestos

#14092
14092-0954
COVER,FILTER CAP
$37.18¢18 590
1
#36014
36014-0555
CASE CHAIN
$67.41¢33 707
1
#53065P
53065-0062-15S
COVER SEAT,CNT,P S WHITE
$62.96¢31 481
1
#53065R
53065-0062-15S
COVER SEAT,CNT,P S WHITE
$62.96¢31 481
1
#53065P
53065-0062-25Y
COVER SEAT,CNT,P.S.WHITE
$59.58¢29 791
1
#53065P
53065-0062-35M
COVER SEAT,CNT,M M GRAY
$59.58¢29 791
1
#53065P
53065-0062-777
COVER SEAT,CNT,L GREEN
$60.13¢30 067
1
#53065P
53065-0062-H8
COVER SEAT,CNT,EBONY
$59.58¢29 791
1
#53065H
53065-5018-777
COVER SEAT,TAIL,Left Hand,L GREEN
$162.00¢81 000
1
#53065L
53065-5019-777
COVER SEAT,TAIL,Right Hand,L GREEN
$162.00¢81 000
1
#53065H
53065-5020-35M
COVER SEAT,TAIL,Left Hand,M M GRAY
$148.00¢74 002
1
#53065L
53065-5021-35M
COVER SEAT,TAIL,Right Hand,M M GRAY
$148.00¢74 002
1
#53065P
53065-0062-15I
COVER SEAT,CNT,P RED
$59.58¢29 791
1
#53065Q
53065-0062-15I
COVER SEAT,CNT,P RED
$59.58¢29 791
1
#53065L
53065-0061-H8
COVER SEAT,TAIL,Right Hand,EBONY
$104.72¢52 360
1
#53065A
53065-0059-15S
COVER SEAT,SIDE,Right Hand,P S WHITE
No Disponible
1
#53065
53065-0026-25Y
COVER SEAT,SIDE,LH,P.S.WHITE
$92.72¢46 362
1
#53065A
53065-0027-25Y
COVER SEAT,SIDE,RH,P.S.WHITE
$92.72¢46 362
1
#53065C
53065-0058-15I
COVER SEAT,SIDE,Left Hand,P RED
No Disponible
1
#53065
53065-0058-15I
COVER SEAT,SIDE,Left Hand,P RED
No Disponible
1
#53065D
53065-0058-15S
COVER SEAT,SIDE,Left Hand,P S WHITE
No Disponible
1
#53065
53065-0058-15S
COVER SEAT,SIDE,Left Hand,P S WHITE
No Disponible
1
#53065B
53065-0058-H8
COVER SEAT,SIDE,Left Hand,EBONY
No Disponible
1
#53065
53065-0058-H8
COVER SEAT,SIDE,Left Hand,EBONY
No Disponible
1
#53065F
53065-0059-15I
COVER SEAT,SIDE,Right Hand,P RED
No Disponible
1
#53065A
53065-0059-15I
COVER SEAT,SIDE,Right Hand,P RED
No Disponible
1
#53065G
53065-0059-15S
COVER SEAT,SIDE,Right Hand,P S WHITE
No Disponible
1
#53065A
53065-0059-H8
COVER SEAT,SIDE,Right Hand,EBONY
No Disponible
1
#53065L
53065-0061-25Y
COVER SEAT,TAIL,Right Hand,P S WHITE
$104.72¢52 360
1
#53065E
53065-0059-H8
COVER SEAT,SIDE,Right Hand,EBONY
No Disponible
1
#53065I
53065-0060-15I
COVER SEAT,TAIL,Left Hand,P RED
$110.58¢55 292
1
#53065H
53065-0060-15I
COVER SEAT,TAIL,Left Hand,P RED
$110.58¢55 292
1
#53065J
53065-0060-15S
COVER SEAT,TAIL,Left Hand,P S WHITE
$110.58¢55 292
1
#53065H
53065-0060-15S
COVER SEAT,TAIL,Left Hand,P S WHITE
$110.58¢55 292
1
#53065H
53065-0060-25Y
COVER SEAT,TAIL,LH,P.S.WHITE
$104.72¢52 360
1
#53065H
53065-0060-H8
COVER SEAT,TAIL,Left Hand,EBONY
$104.72¢52 360
1
#53065L
53065-0061-15I
COVER SEAT,TAIL,Right Hand,P RED
$110.58¢55 292
1
#53065M
53065-0061-15I
COVER SEAT,TAIL,Right Hand,P RED
$110.58¢55 292
1
#53065N
53065-0061-15S
COVER SEAT,TAIL,Right Hand,P S WHITE
$110.58¢55 292
1
#53065L
53065-0061-15S
COVER SEAT,TAIL,Right Hand,P S WHITE
$110.58¢55 292
1
#92009
92009-1662
SCREW,6X14
$3.59¢1 794
1
#92015
92015-1531
NUT,CLAMP,6MM
$5.01¢2 507
1
#92039
92039-0709
RIVET
$2.27¢1 133
1
#92075
92075-1808
DAMPER,6X10X15
$1.28¢638
1
#92151
92151-1703
BOLT,FLANGED,6X13
$3.61¢1 805
1
#92152
92152-1697
COLLAR,5.8X8.2X4.7
$1.94¢972
1
#92154
92154-0182
BOLT,SOCKET,5X16
$2.17¢1 087
1
#92154A
92154-0918
BOLT,SOCKET,6X20
$5.36¢2 680
1
#92154B
92154-1003
BOLT,FLANGED,5X12
$1.14¢569
1
#92161
92161-0631
DAMPER
$6.75¢3 375
1
#92161A
92161-1459
DAMPER
$1.18¢592
1
#92161B
92161-1522
DAMPER,15X15X5
$1.18¢592
1
#92200
92200-0784
WASHER,5.2X12X1.0
$0.87¢437
1
#92210
92210-0817
NUT,5MM
$1.72¢862
1
