FUEL TANK GSX1300R L2 E03

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

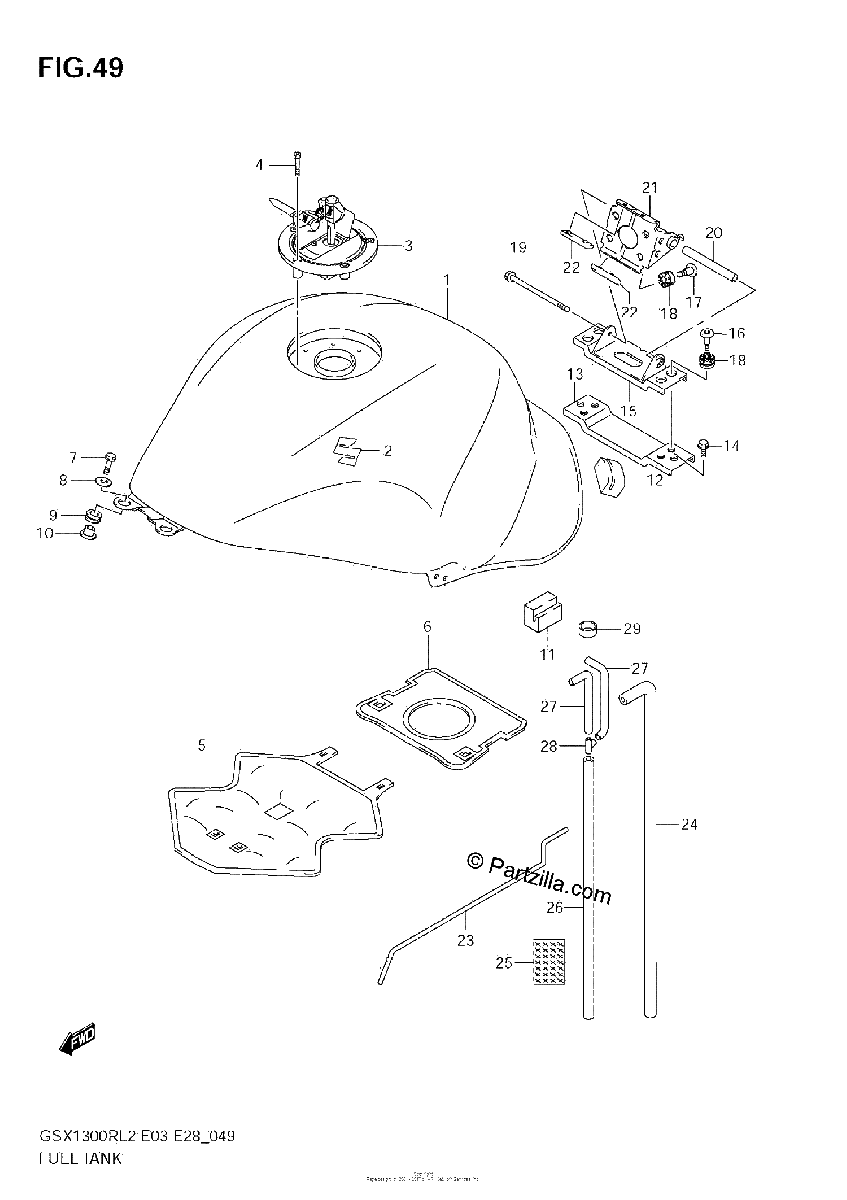

Diagrama de FUEL TANK GSX1300R L2 E03

Repuestos

#1
44100-15H61-YVB
TANK ASSY, FUEL (BLACK)
$1892.50¢946 250
1
#1
44100-15H60-YWW
TANK ASSY, FUEL (WHITE)
$2033.81¢1 016 906
1
#1
44100-15H61-YHL
TANK ASSY,FUEL
$2465.66¢1 232 831
1
#2
68111-18G20
EMBLEM, in.Sin.
$38.51¢19 256
1
#3
44200-16850
CAP SET, FUEL TANK
$140.95¢70 475
1
#4
09106-05017
BOLT (5X20)
$3.65¢1 825
1
#5
44191-15H00
SHIELD, FUEL TANK HEAT NO.1
$238.65¢119 325
1
#6
44191-15H10
SHIELD, FUEL TANK HEAT NO.2
$100.02¢50 012
1
#7
09139-06029
SCREW (6X25)
$6.30¢3 150
1
#8
09160-06054
WASHER
$2.10¢1 050
1
#9
44511-16G00
CUSHION, FUEL TANK FRONT
$4.91¢2 456
1
#10
44512-16G00
SPACER, FUEL TANK FRONT
$8.86¢4 431
1
#11
44541-24F00
CUSHION, SIDE
$7.00¢3 500
1
#12
44543-15H00
CUSHION, REAR
$6.91¢3 456
1
#13
44555-15H00
BRACKET, FUEL TANK REAR NO.3
No Disponible
1
#14
01550-0816A
BOLT
$3.01¢1 506
1
#15
44550-15H01
BRACKET, FUEL TANK REAR NO.2
No Disponible
1
#16
09139-06191
SCREW (6X22)
$4.80¢2 400
1
#17
09139-06191
SCREW (6X22)
$4.80¢2 400
1
#18
09320-08071
CUSHION
$3.98¢1 988
1
#19
07120-0695B
BOLT
$5.15¢2 575
1
#20
44561-18G00
SPACER, FUEL TANK REAR
$20.23¢10 113
1
#21
44530-15H01
BRACKET, FUEL TANK REAR NO.1
No Disponible
1
#22
45149-44G00
CUSHION, BRACKET
No Disponible
1
#23
44574-35F00
STAY | OPT
$18.09¢9 044
1
#24
44423-15H00
HOSE, DRAIN
$30.15¢15 075
1
#25
44427-15H00
SHIELD, DRAIN HOSE HEAT
No Disponible
1
#26
44424-15H00
HOSE, BREATHER
$27.38¢13 688
1
#27
44424-15H10
HOSE, BREATHER NO.3
$18.52¢9 263
1
#28
09367-06007
3 WAY
$4.14¢2 069
1
#29
09352-12163-600
HOSE (12X16X600) | L:600-10
No Disponible
1
