WIRING HARNESS GSX1300R L2 E28

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

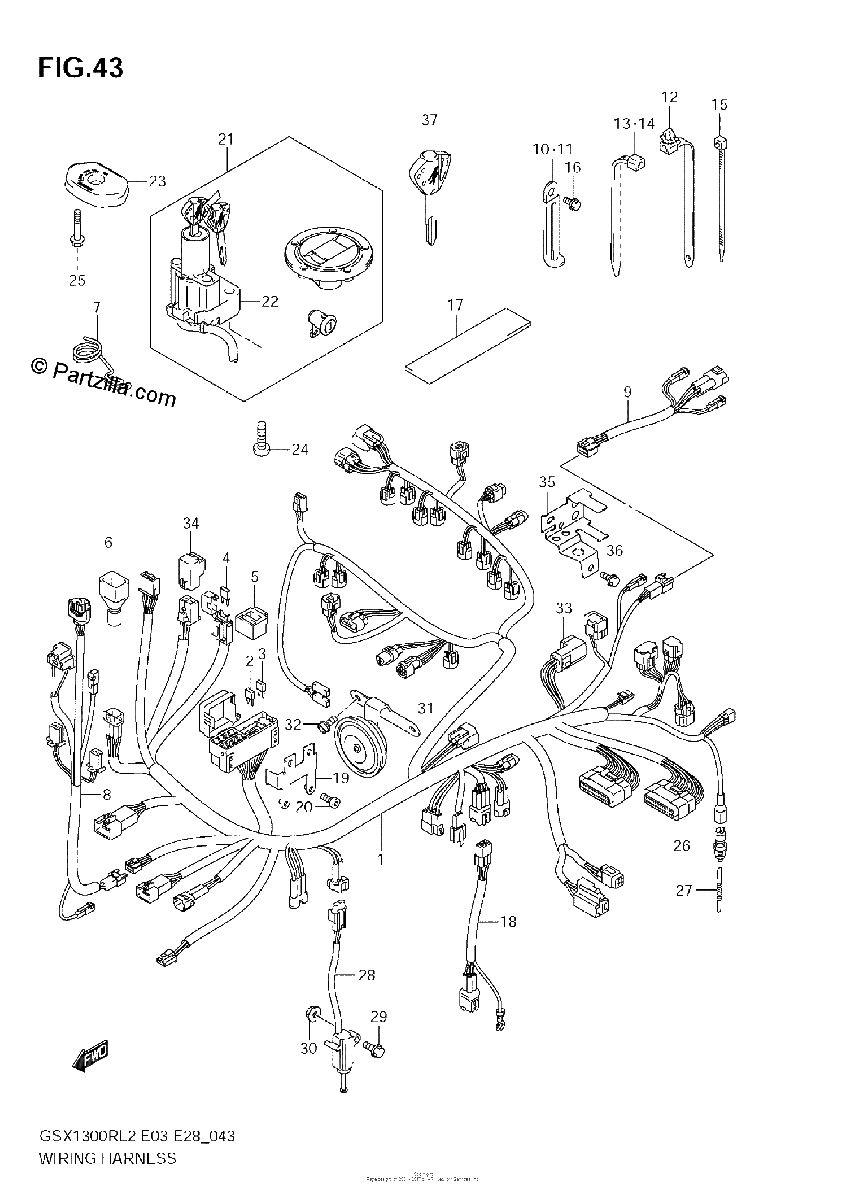

Diagrama de WIRING HARNESS GSX1300R L2 E28

Repuestos

#1
36610-15H30
HARNESS, WIRING
$1193.24¢596 620
1
#2
09481-10501
.FUSE (10A)
$2.48¢1 242
1
#3
09481-15501
.FUSE (15A)
$2.48¢1 242
1
#4
09481-15101
.FUSE (15A)
$3.07¢1 535
1
#5
36742-39D00
HOLDER
$23.78¢11 891
1
#6
36618-33E00
.BOOT, METER
$10.90¢5 451
1
#7
36619-15H00
GUIDE, WIRING HARNESS
No Disponible
1
#8
36620-15H00
HARNESS, WIRING NO.2
$164.97¢82 484
1
#9
36857-15H00
WIRE, REAR COMB
$37.80¢18 900
1
#10
09404-06429
CLAMP (L:45)
$2.14¢1 070
1
#11
09404-06435
CLAMP (L:135)
$4.45¢2 225
1
#12
09407-17402
CLAMP, WATER HOSE
$4.75¢2 375
1
#13
09407-14403
CLAMP (L:125)
$2.69¢1 346
1
#14
09407-18402
CLAMP (L:165)
$2.66¢1 328
1
#15
09407-14407
CLAMP (L:145)
$3.36¢1 679
1
#16
01550-0610A
.BOLT
$2.36¢1 179
1
#17
36920-45G00
PROTECTOR, WIRING HARNESS
$3.77¢1 886
1
#18
36855-15H00
WIRE, O2 SENSOR
$87.32¢43 660
1
#19
36744-24F00
BRACKET, FUSE BOX
No Disponible
1
#20
07120-0510B
BOLT
$3.30¢1 650
1
#21
37100-15850
LOCK SET
$385.39¢192 694
1
#22
37100-15H80
.LOCK ASSY, STEERING
$374.70¢187 352
1
#23
37180-15H01
COVER, STEERING LOCK
$26.78¢13 392
1
#24
09139-08016
BOLT (8X20)
$3.65¢1 823
1
#25
01547-0530A
BOLT
$2.55¢1 277
1
#26
37740-19F00
SWITCH ASSY, STOP LAMP
$38.85¢19 424
1
#27
09443-06012
SPRING
$3.47¢1 737
1
#28
37840-24F00
SWITCH ASSY, SIDE STAND
$73.54¢36 771
1
#29
09103-08357
BOLT (8X35)
$5.04¢2 519
1
#30
08316-1008B
NUT
$3.17¢1 587
1
#31
38500-24F00
HORN ASSY
$108.94¢54 470
1
#32
01550-0612B
.BOLT
$2.85¢1 426
1
#33
38740-26E00
RELAY ASSY, FAN MOTOR
$43.54¢21 769
1
#34
38740-26E00
RELAY ASSY, FAN MOTOR
$43.54¢21 769
1
#35
38741-24F00
BRACKET, FUEL PUMP RLY
$12.80¢6 400
1
#36
01550-0612B
.BOLT
$2.85¢1 426
1
#37
37146-15H00
KEY, BLANK | OPT
$63.51¢31 757
1
