WIRING HARNESS GSX1300R L2 E33

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

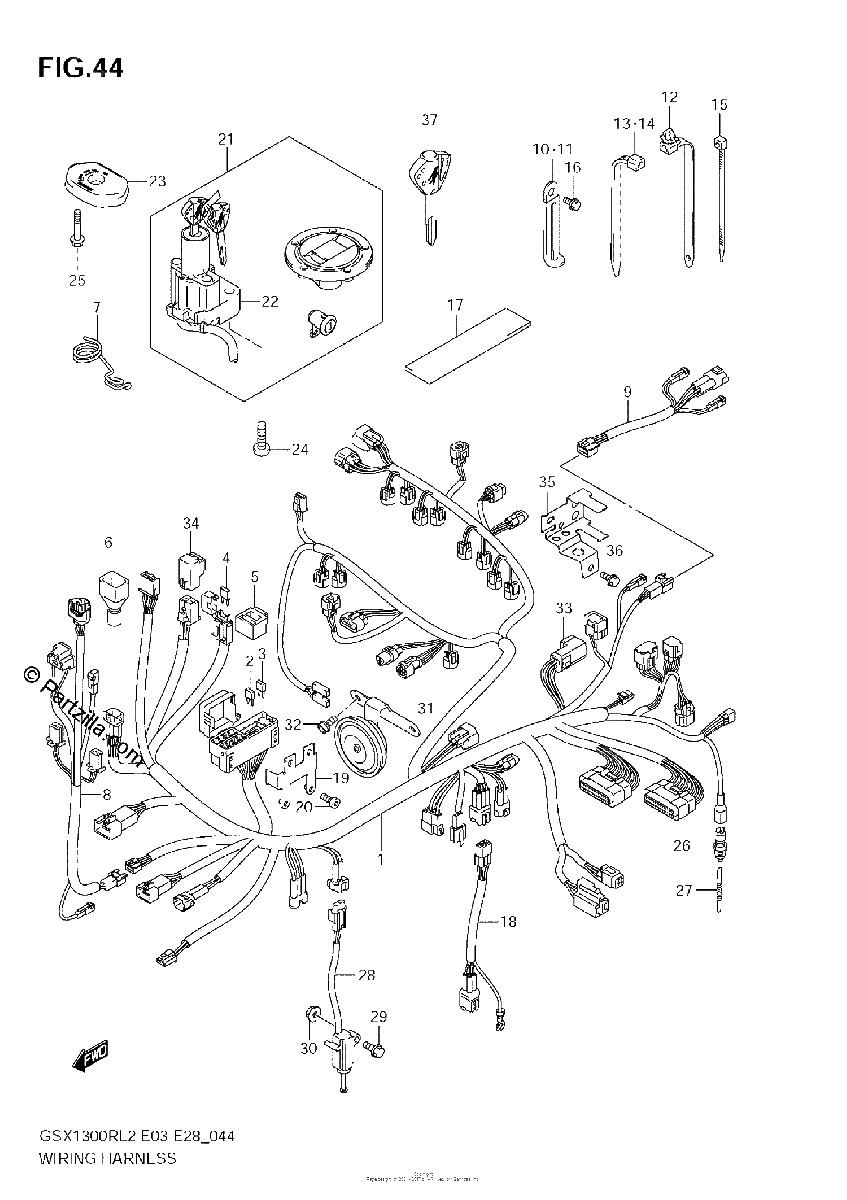

Diagrama de WIRING HARNESS GSX1300R L2 E33

Repuestos

#1
36610-15H40
HARNESS, WIRING
No Disponible
1
#2
09481-10501
.FUSE (10A)
$2.70¢1 350
1
#3
09481-15501
.FUSE (15A)
$2.70¢1 350
1
#4
09481-15101
.FUSE (15A)
$3.34¢1 669
1
#5
36742-39D00
HOLDER
$25.85¢12 925
1
#6
36618-33E00
.BOOT, METER
$11.85¢5 925
1
#7
36619-15H00
GUIDE, WIRING HARNESS
No Disponible
1
#8
36620-15H00
HARNESS, WIRING NO.2
$179.31¢89 656
1
#9
36857-15H00
WIRE, REAR COMB
$41.09¢20 544
1
#10
09404-06429
CLAMP (L:45)
$2.33¢1 163
1
#11
09404-06435
CLAMP (L:135)
$4.84¢2 419
1
#12
09407-17402
CLAMP, WATER HOSE
$5.16¢2 581
1
#13
09407-14403
CLAMP (L:125)
$2.92¢1 463
1
#14
09407-18402
CLAMP (L:165)
$2.89¢1 444
1
#15
09407-14407
CLAMP (L:145)
$3.65¢1 825
1
#16
01550-0610A
.BOLT
$2.56¢1 281
1
#17
36920-45G00
PROTECTOR, WIRING HARNESS
$4.10¢2 050
1
#18
36855-15H00
WIRE, O2 SENSOR
$94.91¢47 456
1
#19
36744-24F00
BRACKET, FUSE BOX
No Disponible
1
#20
07120-0510B
BOLT
$3.59¢1 794
1
#21
37100-15860
LOCK SET
$536.77¢268 388
1
#22
37100-15H80
.LOCK ASSY, STEERING
$407.29¢203 644
1
#23
37180-15H01
COVER, STEERING LOCK
$29.11¢14 556
1
#24
09139-08016
BOLT (8X20)
$3.96¢1 981
1
#25
01547-0530A
BOLT
$2.78¢1 388
1
#26
37740-19F00
SWITCH ASSY, STOP LAMP
$42.23¢21 113
1
#27
09443-06012
SPRING
$3.77¢1 888
1
#28
37840-24F00
SWITCH ASSY, SIDE STAND
$79.94¢39 969
1
#29
09103-08357
BOLT (8X35)
$5.47¢2 738
1
#30
08316-1008B
NUT
$3.45¢1 725
1
#31
38500-24F00
HORN ASSY
$118.41¢59 206
1
#32
01550-0612B
.BOLT
$3.10¢1 550
1
#33
38740-26E00
RELAY ASSY, FAN MOTOR
$47.33¢23 663
1
#34
38740-26E00
RELAY ASSY, FAN MOTOR
$47.33¢23 663
1
#35
38741-24F00
BRACKET, FUEL PUMP RLY
$13.91¢6 956
1
#36
01550-0612B
.BOLT
$3.10¢1 550
1
#37
37146-15H00
KEY, BLANK | OPT
$69.04¢34 519
1
